High Productivity Large Size Plasma Cutting Machine Gantry Type Plamsa Cutter for Metal Plate Metal Sheet Stainless Steel Plate Plasma and Flame Cut Machine

Product Description

Product Description

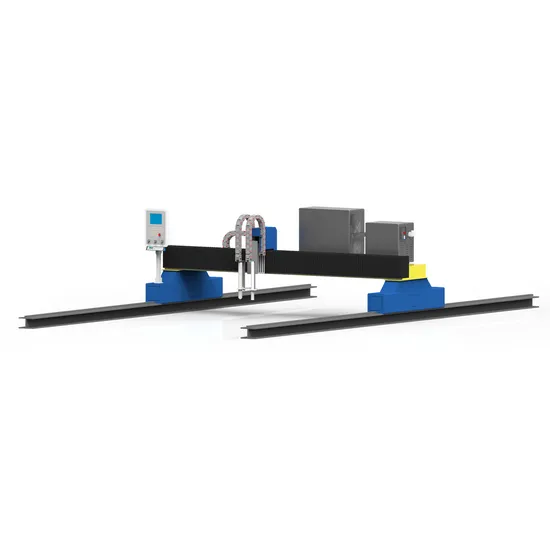

Gantry Type CNC Plasma Cutting Machine

This equipment is widely used in stainless steel, carbon steel, alloy steel, silicon steel, spring steel, galvanized pipe andother metal plate cutting. It is widely used in steel plate blanking , chassis cabinet , sheet metal structure, metal processing, electrical switch cabinet production , textile machinery , food mechanization , kitchen utensils , lamps and lanterns , automobiles , metal crafts, saw blades , electrical parts , glasses production , medical instruments , aerospace , hardware , knife measuring tools and other industries.

Plasma cutting machine features: This type of cutting machine is a gantry type structure, the transverse span is 3m, 4m, 5m, 6m, 8m and other specifications, all using bilateral drive, stable operation, good configuration, high working efficiency, can be used for a variety of carbon steel, manganese steel, stainless steel and other metal materials of large, medium and small steel plate.
It can also be configured with multiple cutting torches according to user requirements, or configured into special-shaped cutting and straight cutting dual-purpose cutting mode, and optional capacitive or plasma automatic raising system.

Model	FAST-P6020/6030/8030
Working Area	6000*2000mm (customizable)
Machine Speed	20000mm/min
Plasma Power	63A/120A/130A/160A/200A/300A
Materials Thickness	Max 60mm
Machine Color	Customizable
Machine Warranty	3 Years
Applicable Materials	Stainless steel, carbon steel, alloy steel, spring steel, copper plate, aluminum plate, titaniu metc metal plate
Specified voltage and frequency	380V/50Hz~60Hz/60A(Customizable)
Optional configuration	Multifunction Tube sheet cutting / Flame cutting head / Spare parts

CNC system
The system is highly reliable in design, with anti-plasma interference, anti-lightning, anti-surge capabilities.
Practical flame/plasma cutting process, plasma machining, automatic corner speed control, and elevation control; Wireless remote control is available for remote operation.
Height controller
Starting positioning function: After the cutting nozzle at the end of the cutting torch contacts with the workpiece, precise elevation of the arc height and the height of the cutting torch of the CNC plasma cutting machine within the range of millimeters.Automatic arc pressure function: Through the arc pressure sensor, in the whole process of cutting. The height of the torch is kept constant, even if the workpiece is not at normal height. It can still be cut, and the constant height of the cutting torch ensures a high level of cutting quality.

Flame height controller
The capacitor can automatically adjust the height of the cutting torch, maintain the cutting distance, reduce the loss of the cutting nozzle and ensure the continuity of the cutting. At the same time, before opening the cutting oxygen at the end of preheating, first lift the cutting torch to a certain height, so as to avoid the slag back blocking the cutting nozzle when starting to open the cutting oxygen. This system is used to automatically keep the distance between the cutting nozzle and the steel plate to a certain height during flame cutting, so as to improve the cutting quality.

Gantry frame
Adopting square tube welding, it has the characteristics of good rigidity, high precision, light weight and small inertia. All welding parts are treated with vibration aging to remove stress, which effectively prevents structural deformation.
Y-axis ground orbit
Precision machined special rail made to ensure the smooth running of the cutting machine, high precision, durable, clean and beautiful.

X-axis guide
Longitudinal and transverse drive: precision rack and pinion (7 level precision) drive is adopted. The horizontal guide rail adopts high precision linear guide rail.

Drive system
Good control performance. As the power system of NC plasma cutting machine, it must have high control ability. Starting, stopping, and turning are all done in a few pulses, and no motion pattern loses a step when running within a certain frequency range.
Plasma power
High load duration, suitable for heavy industry.It has the ability to adapt to wide grid voltage .Cutting current slow rise technology, reduce the consumption of cutting gun accessories .Good arc stiffness, clean incision .Compact structure, small size, light weight .Cutting current stepless adjustable, suitable for different thickness of the workpiece. With qigong test, easy to adjust the air pressure. With undervoltage, overheat automatic protection function.
Application: 1.Cars, motorcycles, pressure vessels, chemical machinery, nuclear industry, general machinery, engineering machinery, steel structure, shipbuilding and other industries.2. Advertising signs, logo making, decorative products, production of advertising and a variety of metal materials. It can apply to iron sheet, the aluminium sheet, the galvanized sheet, hundred steel plates , metal plates.

FAQ:Q1. How can I get the suitable machine ?
Please tell us the materials you need to process , and the materials size like the length , width and thickness , we will suggest suitable machine according to your requirement.
Q2. What about the after-sale service for this machine?
We support 24 hours online service, and can use remote control to help you check and solve the problem. And we also support door service to install and teaching.
Q3. How do I install the machine after I receive it?
We have prepared a complete user manual, installation preparation guide and installation video. These documents will be sent to you in advance and you can prepare according to them. After the machine arrives, we will set up an online group where our engineers will be available to guide you, and we will stay online 24 hours a day.
Q4. Does the machine have CE , ISO and other safety certificates?
All our machines has safety certificates. You can ask for the electronic version of the certificate with our sales staff.
Q5. What is the delivery time for the machine?
Fast delivery. The delivery time for most machine models is usually within 15-30 working days.
Q6. Why should you buy from us not from other suppliers?
Our company has 20 years experience in this field ,owns 4 automatic production lines, and the annual production capacity of laser cutting machines exceeds 1,500 units. All machines passed the European CE authentication, ISO 9001 certificate .
