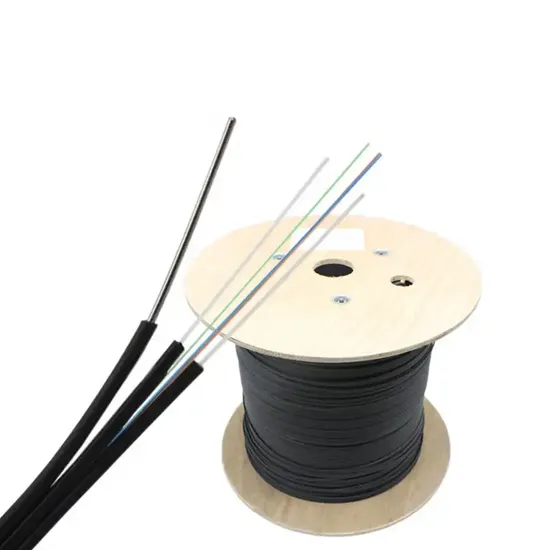

Outdoor FTTH 1fo G657A1 Drop Cable with Messenger Wire 1km

Product Description

Outdoor FTTH 1FO G657A1 drop cable with messenger wire 1km Product Description The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP/KFRP/STEEL) are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or colored LSZH sheath.
Product Features · Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
· Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;
· Single steel wire or messenger as the additional strength member ensures good performance of tensile strength;
· Simple structure, light weight and high practicability;
· Novel flute design, easily strip and splice, simplify the installation and maintenance;
· Low smoke, zero halogen and flame retardant sheath.
Product Application ·Data Communication.
·Making connector.
·Located in where waterproofisn't strictly required.
·Patch cord, Pigtail & Indoor distribution.

Detailed Photos
Technical Specifications Optical Characteristics:

	G.652	G.657	50/125um	62.5 / 125 μm
Attenuation (+20ºC)	@850nm			≤3.0dB/km	≤3.0dB / km
	@1300nm			≤1.0dB/km	≤1.0dB / km
	@1310nm	≤0.36dB/km	≤0.36dB/km
	@1550nm	≤0.22dB/km	≤0.22dB/km
Bandwidth	@850			≥500MHZ.km	≥ 500MHZ · km
(Class A)	@ 1300			≥1000MHZ · km	≥600MHZ · km
Numerical aperture				0.200 ± 0.015NA	0.275 ± 0.015 NA
Cable cut-off wavelength		≤1260nm	≤1480nm

Mechanical parameters:

Tensile Strength	Long Term	60N	80N	120N	Allowable tension	Allowable pressure	Bending radius
	Short Term	120N	150N	250N	Tensile Strength	Crush Resistance	Bending Radius
CrushResistance	Long Term	100N/100mm	100N/100mm	100N/100mm	Long / Short	Long / Short	Static / Dynamic
	Short Term	500N/100mm	500N/100mm	500N/100mm	Long / Short Term	Long / Short Term	the Static / the Dynamic
Bending Radius	Dynamic	60mm	60mm	60mm	N	N / 100m	mm
	Static	30mm	30mm	30mm	300/750	200/1000	20D / 10D

Cable parameters:

	DXC-1	DXC-2	DXC-3
Cable Diameter	1.6x3.3mm	2.0x4.1mm	3.0*6.1mm
Cable Weight	6.5kg/km	9kg/km	15.5kg/km
Tight Buffer Fiber Diameter	600±50μm	900±50μm	900±50μm

Packaging & Shipping

Customer Feedbacks
FAQ Q1.What is your delivery time?
A: Generally,it will take 3 to 15 days after receiving your deposit.The specific
delivery time depends on the items and quantity of your order.
Q2.Can you produce according to the samples or drawing?
A: Yes,we can produce by your samples or technical drawings.We also can
design and build the molds for you.
Q3.What is your sample policy?
A: We can supply free sample of common fiber optics, but customers have to
pay courier cost and in massive order, we return the sample cost.
Q4. Do you test all your goods before delivery?
A: Yes, all goods are 100% test before delivery.
Q5.How do you assure long term business and keep good relationship?
A:1.We keep persistent improvement to make nice quality and unique products
with competitive price to ensure our customers' benefit.
2.We keep mutual benefit for customers who have supported our company!
