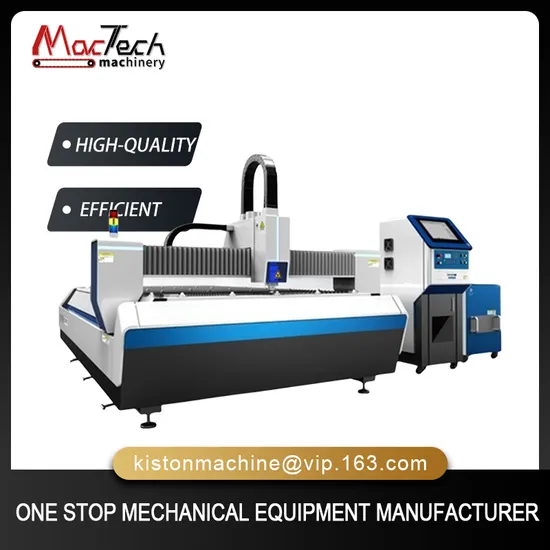

Economical a-T Series CNC Fiber Laser Cutting Machine for Metal Pipe and Plate Cutting

Product Description

Product Description
Cypcut cutting software
Tube welding.
Italian COLGAR machine milling boring.
Machine weight 3.5tons.
Machine error accuracy 0.02mm.
With 24 hours quenching process.
Support max moving speed 60m/min.

China leading laser source brand High Electro-optical conversion efficiency Output fiber length could be customized QBH-QD connector Average output power: 3000W Output power stability: +/- 1.5% Central wavelength: 1080+/-5 nm Red laser included Cooling method: water cooling Dimensions(mm): 900*447*521 (handle included) Warranty: 2 years
Cooling system
Hanli Chiller 3KW Model: HL-3000 Voltage and Frequency: 3 Phase 380V/50HZ Current: 19.5A Machine power: 4.3KW Application environment: Working environment below 45 degree, relative humidity less than 95% Refrigerant: R410a Pump rated flow: 4m³/h Pump power: 0.75 KW Tank volume: 22L Machine weight: 86KG Machine size: 730*550*1020mm
Raytools laser head Raytools Auto focusing cutting head BM 111F
No.1 professional laser cutting head manufacturer in China
Modular design with easy maintenance.
Dual water cooling circuits.
Auto focus to reduce human intervention and improve piercing and cutting efficiency.
3 Cover glasses (top, middle and bottom) to protect collimation & focus lens.
IP65 class dustproof, patented cover glass cover plate. All-around dust prevention.
Sample
Specification

Model	MTK-3015S
Working area	3000mm×1500mm
Laser power	2000W/3000W
X-axis travel	1550mm
Y-axis travel	3050mm
Z-axis travel	300mm
X.Y axis positioning accuracy	±0.05/1000mm
X.Y axis repeat positioning accuracy	±0.03/1000mm
Maximum running speed	100m/min
Acceleration	1G
Maximum bed load	900Kg
CNC system	FSCUT 2000E
Power supply	380V/50HZ (60HZ)
Host appearance (length, width, height)	About 4500mm×3040mm×1650mm

Company Profile
MacTech Machinery is a factory based machine manufacturer in China , specializes in machine tool building for almost 30 years, and main products focus on the overseas markets. Our customers are from over 40 countries in 5 continents. We are able to offer both metal machining machines and metal forming machines to our valued customers. our machine supply include power press and hydraulic press brakes, Laser Marking Machines,CNC laser cutting machines, CNC Shear, Punch machines, welding machines as well as Hydraulic Rolling Machine and Iron Worker etc.

The company's strategic goals in the next five years are: brand creation and value creation;
The company's development direction: market-oriented, management-based, quality-oriented;
The company's development strategy: from the start of enterprise platform to groupization and internationalization;
Company vision: promote China's best equipment to the world;
Company mission: meet customer needs; realize employee value; assume social responsibility;
Company passion: creation and innovation;
Company goal: professional achievement quality;
Customer values: One-stop equipment integration supplier;
Company values: equality and friendship;
Certifications
