Good Quality! Pneumatic Ultrasonic Quilting Machine for Bedding Cover (with CE)
| US$26,500.00-32,500.00 | 1 set (MOQ) |
Basic Info.
Model NO.
MS-1600
Certification
CE
Condition
New
Number of Head
8
Voltage
380V
Type
Non-Needle Quilting
Voltage Supply
380V/50Hz (60Hz)/3phase/4cables
Installed Power
9kw - (Actual Power Consump: About 9kw*60%=5.4kw)
Ultrasonic Frequency
20kHz (15kHz Available for Option)
Working Speed
0-13m/Min, Adjustable Depend on Quilting Thickness
Max. Working Width
1600mm
Workable Materials
Polyester, Nylon, Polyester Wadding, and Non-Woven
Usages
Bedding, Light Quilts, Sofa Clothing & Lining
Leading Time
Within 35 Days on Payment for Order
Transport Package
Plywood Case
Specification
MS-1600
Trademark
MosunSonic
Origin
Made in China
HS Code
84479090
Production Capacity
13m/Min with More Than 12 Hours/Day
Product Description
Good quality! Pneumatic ultrasonic quilting machine for bedding cover (with CE)Model: MS-1600

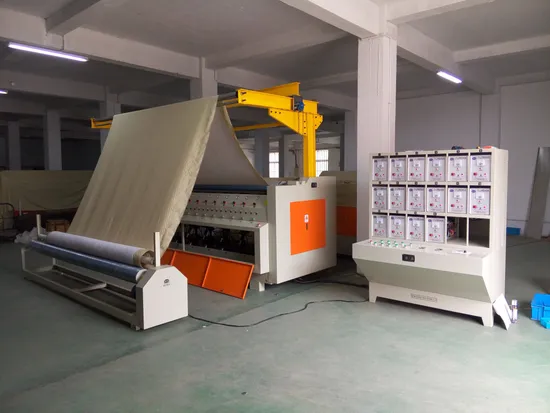

1. Machine and sample pictures:
2. Technical specifications:
| Good Description: | Ultrasonic quilting machine |
| Model: | MS-1600 |
| Voltage Supply: | 380V/50Hz (60Hz)/3Phase/4cables |
| Installed Power: | 9KW - (actual power consumption: about 9KW*60%=5.4KW) |
| Ultrasonic Frequency: | 20KHz (15KHz available for option) |
| Working Speed: | 0-13m/min, adjustable depend on quilting thickness. |
| Quilting Work Width: | 1600mm |
| Pattern Roller Sizes: | 1750MMxØ(200-216)MM |
| Materials Suitable: | Polyester, nylon, polyester wadding, and non-woven fabrics. |
| Usages: | Ultrasonic non-needle & non-thread quilted/laminated materials can be used in bedding, light quilts, sofa clothing & lining, garment clothing & linking, building materials, car seat fabric, soft decorative material, laminated non-woven for medical product, filtering industries and so on. |
| Packing Volume: | About 14.80M3 |
| Gross Weight: | About 3830.00KGS |
3. Basic Equipment:
1) This machine adopts the latest ultrasonic control cabinet with stable and strong power, which is suitable for long operation. There is computer core plate in it; The multi-line ultrasonic protection system guarantees stable operation of mainframe.
2) Structure of whole machine:
(1) Embossing compound mainframe;
(2) Ultrasonic control cabinet;
(3) Finished products rewinding machine;
(4) Bracket for putting materials.
4. Characteristic:
1). Without needlework that omits the bother of replacing line; The product is beautiful;
2). It has better outlook that is suitable for times.
3). It can replace pattern at random according to request.
4). It has high stitching capacity with high efficiency.
5. Applied Example:
Producing kinds of fiber textile, artificial leather, spraying rubber cotton, non-woven fabrics or the compound of needle-punched cotton; It can design pattern at random; The lining production of costume, bedspread, pillow, sofa and the production of inner decoration.
