Gang Type Slant Bed Way CNC Lathe
| US$9,000.00-20,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
TCK6336
Type
Horizontal Lathe
Processing Accessory
Centre CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
CNC Lathe Machine
Tck6336
Swing Over Cross Slide
130
Spindle Bore Dia.
48
Bar Capacity
40
Chuck Size
6"
Swing Over Bed Dia.
390
X-Axis Travel
400
Z-Axis Travel
300
Tool Post
Gang Type
Guideway
Slant 45 Degree
Transport Package
Wood Pallet and Ply Case
Specification
360mm
Trademark
unitech
Origin
China
HS Code
84581900
Production Capacity
100
Product Description
gang type slant bed way cnc latheThis machine is applicable to automobile, motorcycle, electronics, aerospace, oil and other industry. It could turn the conical surface, circular arc surface, end face of the rotary parts, could also turn various metric and
inch threads etc,with higher efficiency and higher precision in bulk.
1. 45 degrees slant bed CNC lathe
2. Higher accuracy Taiwan linear guide
3. Chip conveying capacity is large and convenient, customer could choose
4. Chip conveying in the front or in the back
5. X, Z direction servo motor through high torque low inertia flexible coupling directly connected with the screw, screw supporting the use of pre-stretching structure
6. Gang type tool post
7. high-speed high-precision high-rigidity shell-type spindle unit, servo spindle motor, can achieve higher spindle speeds.
8. Use advanced centralized lubrication system uses
9. machine with full protection design,waterproof debris reliable, easy maintenance.
| Modle | unit | TCK6336(S) |
| Max. swing over bed | mm | Φ390 |
| Max. swing over cross slide | mm | Φ130 |
| Max. processing length | mm | 200(400 optional ) |
| X/Z axis travel | mm | 400/300(500 optional) |
| Spindle unit | mm | 140(170 optional) |
| Spindle nose | A2-5(A2-6 | |
| optional) | ||
| Spindle bore | mm | 48(56 optional) |
| Spindle drawing pipe diameter | mm | 40(45 optional) |
| Spindle speed | rpm | 4000/3500 |
| Chuck size | inch | 6/8 |
| Spindle motor | kw | 3.7/5.5 |
| X/Z feed motor power | kw | 1.5 |
| X/Z feed motor torque | N.m | 6/6 |
| X/Z position accuracy | mm | 0.016/0.016 |
| X/Z repeatability | mm | 0.006/0.006 |
| X/Z rapid feed speed | m/min | 18/15(18/18 optional) |
| Cutting tool shape size | mm | 20*20 |
| Total power capacity | kva | 9/11 |
| Guide type | Taiwan linear guide way | |
| Machine dimension (L*W*H) | mm | 2200(2500 optional)×1340×1710 |
| N.W. | kgs | 2200(2500 optional) |
STANDARD ACCESSORIES:

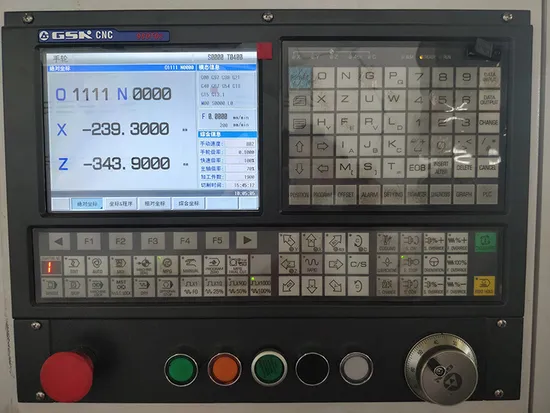

1.GSK980TDC or Siemens 808D NC system
2.servo motor 3.7 kw
3.4 station gang type tool post
4.6" domestic thru-hole type hydraulic chuck
OPTIONAL ACCESSORIES:
1.NC System: KND1000Ti, Fanuc Oi Mate-T
2.Main Motor: Servo5.5/7.5KW
3.Inverter 7.5KW
4.Turret: 4 station electric turret , 6 station electric turret
5. Chuck: 6″Non-through hole hydraulic chuck
8″Non-through hole hydraulic chuck (Taiwan)
8″through hole hydraulic chuck(Taiwan)
6.Chip conveyor
7.Steady Rest
8.Other optional item: Driving tool turret, automatic feeding device and manipulator.
