12inches Fabrics Automatic Rapier Sample Loom for Customized

Product Description

Product Description

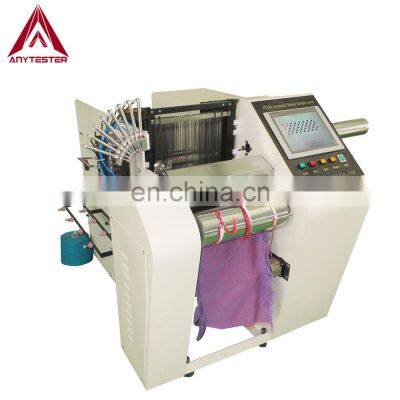

Product DescriptionAT248 Automatic Rapier Sample Loom is used for sample weaving of all kinds of fabrics, such as cotton, hair, jute, silk, chemical fiber, blending, etc. It consists of pneumatic shedding, rapier weft insertion, mechanical let-off, mechanical beating-up, mechanical take-up and pneumatic selection of weft yarns. It is widely used in weaving mills, scientific research units, textile institutes and foreign trade companies, etc.SpecificationModelAT248Reed width12inches (16, 20, and 24inch, optional)Yarn linear density range5~500texWeft density30~45weft/min, selectableNo. of heald frame4~20Color selection8 color, automatic pneumatic controlLet-offActive electronic controlTake-upMotor controlSheddingDobby shedding, pneumatic controlBeating-upMotor controlAir pressure0.45~0.8MpaAir consumptionMax. 200L/minPowerA220V 50Hz, single-phaseDetails & Features★PLC control touch screen with 2G memory capacity to store designed patterns; ★Designable and editable patterns and USB interface to share designed patters; ★Mechanical let-off, beating-up and take-up and pneumatic shedding and selection of weft yarns; ★Pneumatic Dobby shedding mechanism to avoid the disadvantage of easy to wear for traditional peg mechanical structure;★Rapier weft insertion, suitable for various yarns, such as, cotton, terylene/cotton, wool chemical fiber and other fabrics;★Heald frames up to 20pcs, easy to mount and dismount;★Automatic pneumatic selection of weft yarns up to 8 colors; ★Professional software for designing or editing patterns;Our CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingDimensions1300*980*1510mm (LWH)WeightApprox. 200kgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
