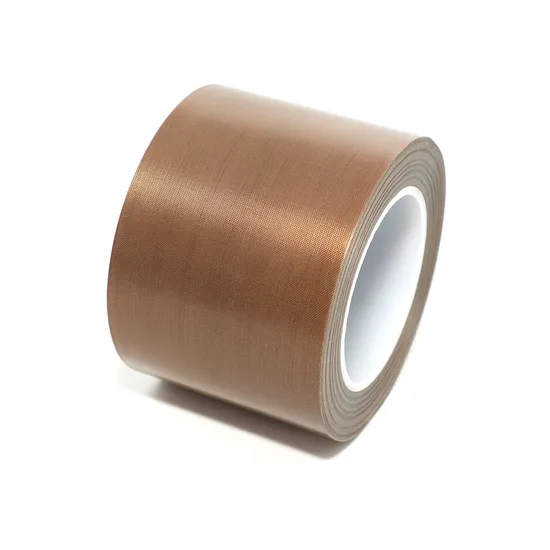

High Strength PTFE Coated Fiberglass Adhesive Tape

Product Description

PTFE adhesive tape
PTFE tape is well known as its smooth surface, non-sticky, chemical resistance and high temperature resistance and insulating properties. It is widely used in packaging, heat moulding, laminating, sealing and electrical industries etc. PTFE adhesive tape is enhanced by fiberglass fabric, which improved its tensile strength.It is reusable and easy to change.
In addition, we use excellent imported materials to produce various PTFE adhesive products in different specifications.
Characteristic:
1.High temperature resistance. It can work at-70-260ºC continuously.
2.Non-sticky. Its melting remnant is not stick to the heater.
3.Excellent electrical insulation.
4.Good stability and durability.
Application: It can be used in hot sealing and cutting machine of food or drug plastic packaging industry and high speed thermal sealing machine. It can be used on the surface of many kinds of machines such as laminating machine drying cylinder, guied roller,paper machine drying cylinder to prevent sticking. It can be used on the face of many tools to prevent sticking to others and dyed or to reduce friction.
Specification:
1.PTFE coated fiberglass adhesive fabric series

Item No	Thickness	Max width	Adhesive strength (to steel)	Strip strength	Temperature
F7008	0.08mm	1250mm	22N/100mm	900N/100mm	-70-260ºC
F7013	0.13mm	1250mm	28N/100mm	1700N/100mm	-70-260ºC
F7018	0.18mm	1250mm	48N/100mm	2750N/100mm	-70-260ºC
F7025	0.25mm	1250mm	62 N/100mm	3650N/100mm	-70-260ºC

2.Pure PTFE adhesive tape.

Item No	Thickness	Max width	Adhesive strength (to steel)	Strip strength	Temperature
FS7005	0.05mm	1000mm	20N/100mm	200N/100mm	-70-260ºC
FS7013	0.13mm	1000mm	25N/100mm	400N/100mm	-70-260ºC
FS7018	0.18mm	1000mm	44N/100mm	650N/100mm	-70-260ºC
FS7025	0.25mm	1000mm	58N/100mm	950N/100mm	-70-260ºC
