Multi-Function Panel Furniture Wood Doors Kitchen Cutting Carving 9kw Spindle C-1325 Atc CNC Router

Product Description

Product Description
Product Parameters

XYZ working stroke/processing size	1300*2500*200mm
Bracket	Thickened brackets, steel beams
Bed frame	Machining center processing bed (heavy-duty bed)
Spindle power	Changsheng HQD 9KW high-power and air-cooled tool change spindle
Drive mode	DORNA 1.5KW servo motor drive (Z-axis brake motor)
Spindle speed	6000-24000r/m
Mesa	Vacuum suction table with 6 partitions and 24 well positions
Transmission mode	XY axis high-precision ground helical gear transmission + Z-axis high-precision TBI screw transmission
Loading and unloading device	Multi-linkage cylinder loading rack (simple and easy to use)
Slideway	Taiwan HIWIN high precision 30 linear square rail
Device cable	pure copper cable
Vacuuming way	3KW double barrel vacuum cleaner
Vacuum pump	7.5KW water-cooled vacuum pump
Control system	Taiwan Baoyuan Control System
Lubrication system	Oil filling and maintenance system
Working voltage	AC380V/50/60HZ
Engraving instructions	Standard G code, u00, mmg, plt
Position	4+2 positioning cylinder
Push material	Pushing cylinder device
Security system	All photoelectric limits of XYZ three-axis
Locating Accuracy	±0.02mm
Max woking speed	18000mm/min
Tool magazine	8/12/16 inline tool magazine
Machine weight	2600KG
Reducer	Japan Xinbao reducer

Here are some samples of machine-processed wood, aluminum, acrylic, and PVC. The machine can be applied to various materials, such as wood, density board, fiberboard, acrylic, PVC, foam, resin, PTFE board, and other materials. In addition, There are also some soft metals that can be processed, such as copper, aluminum, etc.

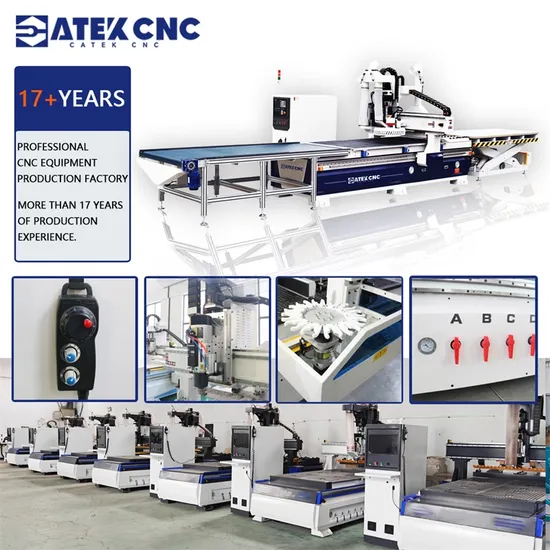

Detailed Photos
High-power 9KW automatic tool changing spindle SITAO porcelain bearing Fully automatic auto feeding system, rolling transmission, saving time
24000R/M,Support automatic switching of 8/12/16 knives
The automatic tool setter can save tool setting time and it is simple & 4+2 positioning cylinder, the plate is in place in one step and load more easier
easy to use
High-power double-barrel bag vacuum cleaner more convenient for dust Fully Automatic feeding system automatic lifting and loading, would be saving
collection and more environmentally friendly processing. labor
Four 6KW high-power air-cooled spindles with fully automatic switching, Ordinary water-cooled spindles require adding water and manual tool change,
it will saving tool changing time and improving efficiency which is a waste of time and has low efficiency
The 12-zone vacuum adsorption table can independently control the zones Ordinary aluminum alloy profile counter tops are fixed with pressure plate
and is equipped with a 7.5KW vacuum pump, making loading more convenient screws which is inefficient and wastes timeThe whole machine uses a heavy-duty bed, integrated gantry, high- Ordinary iron square tube welding machine bed has low overall strength, light
temperature annealing treatment, and an independent control cabinet, weight, slow processing speed and low efficiency
which has strong anti-interference ability and is more stable to use
Company Profile
Jinan Catek CNC Machinery Co., Ltd Catekcnc is a foreign trade subsidiary of Lingrui located in China Jinan, Shandong Province. Lingrui CNC was established in 2006 with atotal investment of 300 million RMB. Since 2006 our company has been deeply cultivating the Chinese market for 17 years and cooperating with well-known factories in China and OEM manufacturing for many foreign trade companies around the world. In 2023,Lingruin invested in the development of the foreign trade market and established Ruisheng CNC committed to providing the mostfavorable and practical digital control equipment to the world.
The company has 12 large-scale production workshops with total area of 100000 square meters. The company's main production equipment adopts world-renowned enterprise brands, and heat treatment processes of the equipment are at the world's leading level. Key components with the overall structure of the bed and the connecting shaft are all self-developed which is effectively ensuring product quality.
The company's products mainly cover various CNC equipment such as CNC woodworking lathes, CNC carving machines, CNC woodworking machining centers, laser fiber cutting machines, CNC marking machines, etc., which are applied in various industries such as wood, stone, metal, synthetic chemical materials, etc. Whether in manufacturing, construction, handicrafts, advertising, or other fields, our mechanical equipment help customers achieve outstanding achievements. We work closely with our customers listening to their voices and needs, constantly innovating and improving to ensure that our products are always at the forefront of the industry. Packaging & Shipping
Our company has 1500+ professional assembly technicians, 300+ professional after-sales teams and 300+ professional sales teams.Our company has a diversified product composition and production equipment in various fields. No matter what your needs are, we can meet with all your needs.
The company has been deeply rooted in China for more than 17 years, serving more than 10000 domestic customers. Factories are involved in various industries and customer satisfaction is 100%. It has become a well-known CNC brand in China. Whether you are a CNC novice or an expert CATEKCNC can meet your any requirements.
As a senior OEM factory has cooperated with many well-known foreign trade companies and shipped equipment to more than 100 countries and regions around the world FAQ
1.Are you a factory or a trading company?
We are a factory with an export license.
2.Can you do OEM?
Yes, We have been cooperating with many trading companies and OEM manufacturing for few years.
3. What is after-sales service?
We have 17 years of after-sales service experience. No matter what problems your machine has we will respond within 10 minutes and solve them within 2 hours. The entire machine comes with a 3-year warranty and technical support is provided through phone, email, WhatsApp, and Skype
4.How to choose the appropriate machine?
You can tell us about the material, size, and machine function requirements of the workpiece. We can recommend the most suitable machine based on our experience.
5.Do you have installation and equipment debugging services?
Yes, we do. The machine has been installed and debugged before leaving the factory. After receiving the machine, you can use it directly. We provide a complete and free operation manual and instructional video and as well as we can also have our technical personnel go to your country to install and debug the machine.
6.Can the machine be customized according to my requirements?
Yes,customization is possible. We have a professional team with professional experience. Our goal is to satisfy our customers.
7. Can I process a sample video to confirm the machine's functionality?
Yes you only need to provide drawings or photos, and we can provide you with free processing samples and recording videos.
8. What are the payment methods?
There are two payment methods.
(1) T/T refers to international bank transfers. 50% deposit, then we start to produce machines for you. 50% before shipment convenient and fast.
(2) ****** Secure Payment. Reliable and secure, ****** will charge a handling fee.
or if you have other payment methods, we can also consider them
