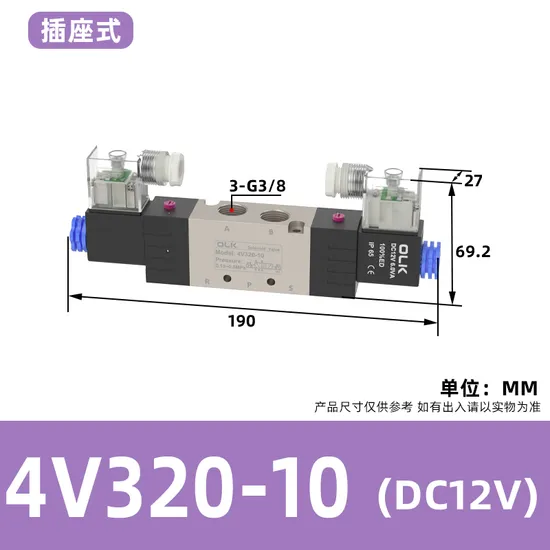

Reliable 4V320-10 DC12V Double Acting Ipneumatic Solenoid Valve with Durable Construction

Product Description

ZHEJINAG OULEIKAI PNEUMATIC CO.,LTD Ouleikai Pneumatic Co., Ltd. has a history of 20 years in China. The plant covers an area of 12000 M², equipped with 280 CNC machine tools, 20 quality inspectors, 8 production lines, research and laboratory. The company adopts the production technology and scientific management methods of international advanced, the key components of the product all realize the computer aided design and production management,, imported from Europe and the United States, the main performance index of the products have reached the international advanced level.
The company's products, excellent quality, reliable performance, the general good, wide variety, complete specifications. The main products are series of pneumatic actuators, control components, auxiliary components, pneumatic machinery and pneumatic integrated system.
The company's designers are senior professional technical elite, the company of professional training, can the proprietary technology and the latest international technology into product design, is the first to ensure the company's products have reached the international advanced level.
OLK has passed CE Certification because of its good service and high quality. By now there are more than 200 agents and distributors in China and we are looking forward to approach more international market.
Main products:solenoid valve,air control valve,mechanical valve,cylinder,air source processor...

Ordering Code
4V	3	10	10	AC110V
Model	Code	valve type	port size	voltage	Explosion proof coil
4v:sports2(3)position solenoid valve	3:300 series	10:single solenoid 5/2 way	08:G1/4	AC220V	Non:Din type
		20:double solenoid vlave 5/2 way	10:G3/8	DC24V	I:Line type
		30C:double solenoid vlave5/3way closed center		AC110V
		30E:double solenoid vlave5/3way exhaust center		AC24V
		30P:double solenoid valve 5/3 way pressure center		DC12V

Model	4v310-08 4v320-08	4V330-08 4V330E-08 4V330P-08	4V310-10 4V320-10	4V330C-10 4V330E-10 4V330P-10
Working medium	Air(Filter through a filter screen of over 40μm)
Action mode	Internal Pilot Type
port size	Inlet=Outlet=Exhaust Port=G1/4		Inlet=Outlet==G1/8 Exhaust Port=G1/4
Effective cross-sectional area	25mm²(Cv=1.4)	18.0mm²(Cv=1)	30.0mm²(Cv=1.68)	18.0mm²(Cv=1.0)
Positions	5/2 Port	5/3 Port	5/2 Port	5/2 Port
Pressure range	0.15-0.8 MPa (21-114psi)
Proof pressure	1.5MPa (215psi)
Woking Pressure	'-20-70 ºC
Body Material	Aluminum Alloy
Lubrication	No Need
Max.Operating Frequency	5 times/second	3 times/second	5 times/second	3 times/second
Weight	4V310-08:310g 4V320-08:400g	450 g	4V310-10:310g 4V320-10:400g	450 g

Stable Coil: Good insulation performance and good heat dissipation Fine Process: Smooth thread for easy mounting Sealing: Good sealing performance OULEIKAI PNEUMATIC CO.,LTD Q1.Are you a manufacturer or a trading company? we are manufacture of pneumatic for 20 years in China.There are 280 CNC machine tools Q2.What's the payment term? T/T Q3.How about the delivery time ? 1-3 days for normal models. For big orders, it takes about 10-15 days. Q4.What is the standard of package? Export standard package or special package according to customers' requirement. Q5. What kind of product quality does your factory offer? We have twenty quality inspectors.Annual production of 2 million units, product rework rate of 1% Q6. Do you accept OEM business? We do OEM/ODM . Not regular fittings MOQ:order 500-1000 pieces
