316 Stainless Steel Soybean Oil Decolorization and Deodorization Equipment

Product Description

316 stainless steel soybean decolorization and deodorization equipment

Applicable scope: Refinement of all animal and vegetable oils, including palm oil, rapeseed oil, walnut oil, soybean oil, cottonseed oil, coconut oil, olive oil, peanut oil, sunflower seed oil, grass seed oil, tea seed oil, fish oil, butter, etc. Product Parameters

Model	XXTC-1000L
Processing quantity	1000KG/TIME
Electric heating power	18kw
Oil pump motor	1.5kw
vacuum pump	5.5kw
voltage	380V
Tank thickness	6mm
Tank diameter	100mm
Tank volume	1500L
Overall weight	860kg
External dimensions	2500*1500*2300mm

Product Description
Equipment Introduction:

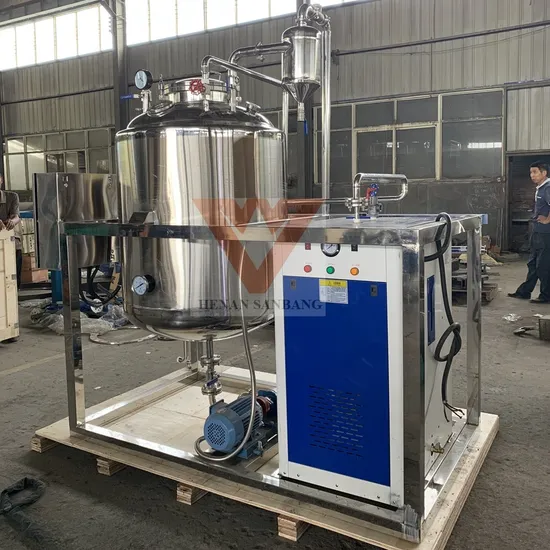

Composed of a deodorization tank, filter, vacuum system, oil pump, and electrical system, it can achieve functions such as drying, deodorization, and removal of peroxide value.
Operation process: degummed crude oil - deodorization (distillation) - filtration - finished oil
Introduction to complete refining equipment:
Batch type refining equipment, Also known as chemical refining equipment.
Processing capacity: 1T / D-5T / D
Main process:Hydration degumming, Neutralization deacidification, Adsorption decolorization,
filtration, Distillation deodorization.
Main equipment and use:
Two refining pot,alternate work,Can degumming,dephosphorization,deacidification. Bleaching tank under vacuum work,Activated clay adsorption decolorization. Automatic slagging filter, simple operation. SUS304 stainless steel deodorization tank, guarantee the quality of the oil;Built-in double coil heating cooling integration. Salting out tanks used to refine soapstock, part of the oil recycling and reduce losses. Conducting oil furnace,Steam generator. Other supporting equipment compressors, vacuum pumps, oil pumps, control cabinet, installation materials, operating platform and pipeline valves, all included; users do not need to purchase additional equipment. Our Advantages
Batch type refining equipment characteristics:
1. small investment income is fast, suitable for small-scale production.
2. saving space, flexible operation, saving labor cost.
3. suitable for a variety of oil refining, business development for users.
4. Independent design, the refining stage, late to expand the scale of production.
Function: degumming, deacidification, decolorization, deodorization.
Company Profile
Henan Sanbang Grain and Oil Machinery Co., Ltd. was founded in 2008. Our company is located in the industrial cluster area of Shenqiu County, Henan Province, China, close to the Shenqiu County high-speed railway station and more than an hour's drive from Zhengzhou, with convenient transportation. He is an important member of the China Grain and Oil Society and a designated research center for oil refining equipment in Henan Province; It is an oil engineering technology company that integrates product research and development, manufacturing, and sales. Has been recognized multiple times by the Provincial Administration for Industry and Commerce as a provincial-level contract abiding and trustworthy enterprise.
In 2010, it passed the ISO quality system certification (certificate number: NOA1717762) and has more than 20 practical patents and invention patents for oil and fat equipment. Previously awarded the AAA credit rating for Chinese enterprises (certificate number: HXZC201936230), and a member unit of the China Oil and Fat Association.
Our company specializes in undertaking various oil and fat processing production line projects. The company mainly produces oil presses, oil filters, fryers, palm oil extraction equipment, complete sets of oil extraction equipment, 1-100 tons/day oil refining equipment, 10-200 tons/day large animal fat dry distillation equipment,; The company's hardware equipment includes: multiple lathes such as car pliers, planing and milling machines, large plate rolling machines, fully automatic bending machines, automatic polishing equipment, welding seam detection equipment, pressure detection equipment and other large-scale mechanical processing equipment.
Our factory covers an area of 15000.00 square meters. We have 6 engineers and technicians with over 10 years of experience, a team of 65 experienced technicians and installers, 7 sales personnel, and 3 project managers and management personnel. Currently, more than 200 sets of small and medium-sized edible oil processing projects with a capacity of 20-100 tons have been built.
Our products are popular in more than 30 countries and regions, including the United States, South Korea, Russia, Greece, South Africa, Indonesia, Vietnam, Thailand, Nigeria, Cameroon, Congo, Uzbekistan, Pakistan, Kyrgyzstan, and Bangladesh. The palm equipment developed and produced by our company has been widely used and recognized in multiple countries such as Indonesia, Malaysia, Congo, Nigeria, and Cameroon.
