Monthly Deals Tinplate High Speed Rotary Shear Cut to Length Line Machine

Product Description

COMPANY PROFILE :

Jinan Eagle CNC Machine Co., Ltd located in Jinan Economic Development Zone, Shandong Prov., China, is a professional manufacturer of metal coils and sheets processing machinery.
The main products include Cut-to-Length lines, Slitting lines, Tension Leveling lines and Precision Leveling machines, etc. Four series with multi-varieties and multi-specifications.
It is one of the few specialized, large-scale, middle and high-end suppliers of coil processing equipment in China.



COMPANY IDEA:
A. Good faith as the fundamental integrity
B. Quality for Survival
C. Technology to Development
COMPANY HONOR:


DESIGN DEPARTMENT:
Product Details:

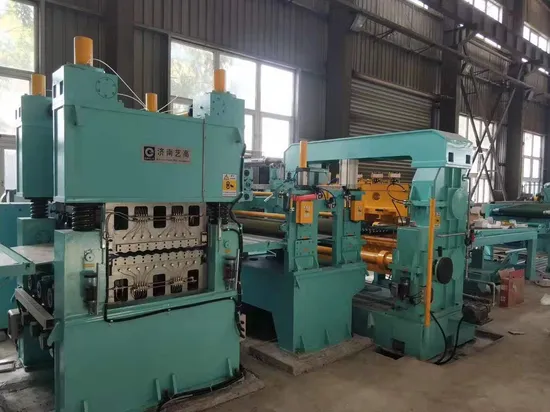

Rotary shear line ERCL series :
This rotary shear is suitable for hot rolling carbon steel, tinplates, stainless steel, and other metal with coated surfaces. It is widely used in home appliances, automobiles, hardware, steel products and other industries. This rotary shear adopts 6H leveler to carry out continuous leveling of the panels. With two stacking devices, this rotary shear has a high working efficiency. It is capable of shearing 150 plates per minute, with a maximum running speed of 80 meters per minute. With 6H leveler, the processed plates are smooth and free of scrapes.

This ERCL rotary shear usually consists of a uncoiler, a leveler, meter encoder, feed roll, rotary shear, conveyor belt and stacker. Application in cold rolled carbon steel, silicon Steel, tinplate, Stainless steel and pre-painted material etc.

Structure of Rotary Shear: Dual Rotary Type :
1. The cutting part of our rotary shear is comprised of an upper blade holder and a lower blade holder. The two slide holders carry out synchronous rotation and are connected to a linear guide rail. When the crankshaft rotates, the cutting station cuts and conveys the material.
2. The upper blade is of rectangular shape and the lower one is of "V" shape. They are made of Cr12MoV. The upper slide rest can be conveniently adjusted to change the cutting clearance.
3. The drive motor of this rotary shear is AC servo spindle motor (55 kw, 500rpm). It is connected to the transmission shaft with a conical connector, which has the capability of enduring frequent impact.

Parameters of Rotary Shear :

Model/ Items	Thickness (mm)	Width (mm)	Shearing Accuracy (mm)	Max. Line Speed m/min	Max. Cutting Speed (spm)	Coil Weight (ton)
ERCL-2x650	0.2-2	100-650	±0.3/1000mm	60	150	8
ERCL-2x800	0.2-2	100-800		60	150	8
ERCL-2x1300	0.3-2	400-1300		70	150	15
ERCL-2x1600	0.3-2	400-1600		70	150	15
ERCL-3x1600	0.4-3	400-1600		70	120	15

Transaction procedure :
Inquiry - Project - Sign - Production - Inspection - Payment - Transportation - Installation& Commissioning - Guaranty
Jinan Eagle CNC Machine Co., Ltd (briefly JEM), located in Jinan city, Shandong Province, China, was founded in 2003. It is mainly engaged in developing and manufacturing of Cut to Length Line, Slitting Line, Rotary Shear, Slitting and Cut to Length Combined Line, Leveling Machine, Tension Leveler and so on. Our products are widely used in transfomer, motor, household appliance, automobiles, hardware, steel industries, etc. It can be used for processing cold and hot rolled steell, carbon steel, galvanized steel, silicon steel, tinplate, stainless steel, pre-painted steel, aluminium, copper and other metals.
Domestic customers include First Automotive Works (FAW), Second Automotive Works, Great Wall Automobile, Bao Steel, Anshan Steel, Handan Steel, Midea Group etc, and many of coil processing centers. Internationally, our products have also been installed in Europe, South America, Africa, Southeast Asia and so on.
Service:Pre-sale service:1, Confirm all specifications with customer
2,All confirmed specifications write in Contract/Technical offer
3,Show our ability and do what we can do, never cheat customer we can do everything, be honest and be professional After-sale service:1,Banglore office person will help to service you after you buy from us
2,Machine have 1 year free guarantee except man-power broken or nature disaster
3,Sales team will visit customer every year in India, Indonesia, Vietnam etc, if other coutries we can come as customer invite
4,keep contact with old customer and ask how is the machine using condition, to get some suggestion to improve our designNew Year Party:Our Factory:
