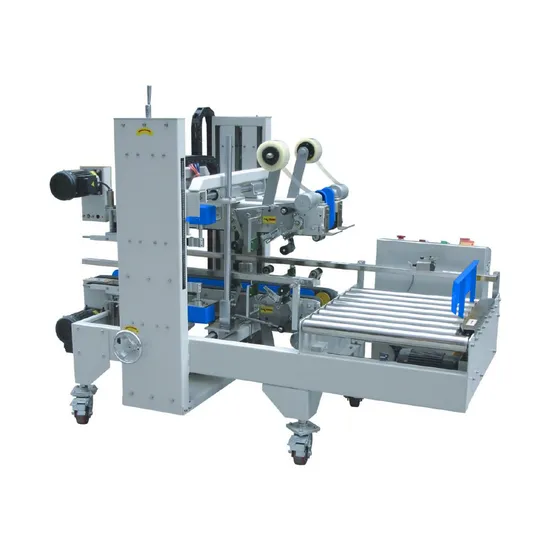

Automatic Corner Sealing Carton Case Box Sealing Machine Carton Sealing Machine
| US$4,000.00-4,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
MC-07
Packaging
Cartons
Automatic Grade
Semi-Automatic
Application
Cosmetics, Cleaning, Detergent, Drinks, Oil, Dairy Products, Skin Care Products, Hair Care Products, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning
Usage
Outpacking
Type
Sealing Machine
Model
Mc-07
Condition
New
Voltage
110/220/380V/1phase
Power
1050W
Weight
500kg
Max Speed
8-10 CTN/Min
Tape
48-72mm
Certification
CE ISO9001
Specification
1998*1224*1444mm
Origin
Jiangsu, China (Mainland)
HS Code
84224000
Production Capacity
300 Set/Sets Per Month
Product Description
| TECHNICAL DATA | STANDARD FEATURES | ||||||||||
| Performance: | Cylinder | AIRTAC | |||||||||
| Throughput Speed | 8-10 box /Minute | Electromagnetic Valve | AIRTAC | ||||||||
| Case Size (Outside Dimensions) | L:320-500mm W:200-500mm H:180-500mm | Motor | CPG | ||||||||
| Sensor | OMRON | ||||||||||
| Operation | Air Flitter Valve | AIRTAC | |||||||||
| adjust size | Manual (MC-07FA model "AUTO") | Tape Cutter | SKD11(Japan) | ||||||||
| Motor Protector | S c h n e i d e r | ||||||||||
| Top & Bottom Seal | Electric Switch | S c h n e i d e r | |||||||||
| Tape | 48-72mm | PLC control | SIEMENS | ||||||||
| Machine Head | 3inch (2inch optional) | ||||||||||
| Service Requirements | Certification | CE | |||||||||
| Air Supply | 6 Bar & 200NL/min | Machine Warranty | 1 year | ||||||||
| Power | 1050W | ||||||||||
| Voltage | 110/220V, 1ph, 50/60Hz | ||||||||||
| Machine Data | Optional | ||||||||||
| Weight | 500KG | Safety door system | with safety sensor | ||||||||
| Dimensions | 1998*1224*1444mm(L*W*H) | Output conveyor | custom made conveyor | ||||||||
| Outfeed Pass Height | 600 mm +/- 150 mm | Machine Layout | Straight infeed &Straight output | ||||||||
| MC-06Pro FEATURE |
| H type sealing: MC-06Pro + MC07 Sealing top &bottom + sealing 4 corner side | Independent Electric Box 1. SIEMENS PLC control 2. Motor protective relay 3. Easy Signal Exchange by I/O | Random size optional MC-07FA Automatic Adjust size Speed: 5-6ctn/min Suitable for automatic production line with random size box |
