Hydraulic Tire Tripling Machine Motor Power 7.5kw

Product Description

Hot Sale Hydraulic Tire Triple Machine to Put Four Tires into One Product Description It is mainly use for waste tyres doubling or tripling together so that to make easy and more quantity transportation. There are hydraulic and pneumatic two types.
Product Parameters

Model	H4800
Drive type	Hydraulic
Power supply required	220V/380V/415V/ 3-phase; For motor, Solenoid valve, travel switch,etc.
Motor power	4kw/5.5kw/7.5kw based on the power supply
Pressure source	Hydraulic pump
Working pressure	10Mpa
Cylinder quantity	Hydraulic cylinders- 9pcs
Max tyre diameter	105cm
Max tyre width	30cm
Tyre tripling quantity	3-5 pcs
Main structure	Host frame, hydraulic system, motor power station
Operation method	Handle rod to control the hydraulic oil
Machine dimension about	2400*850*3570mm
Packing size about	2500*920*2500mm
Weight:	850kg

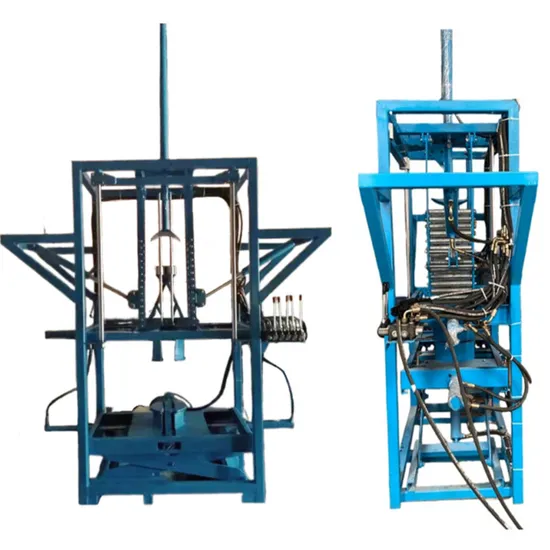

Machine Images
Packaging & Shipping We will pack goods by plywood box and ship it by LCL.

Workshop Show We have professional technical people and workers for tire tripling machine, main market is US and Europe countries. If you have any interest for the machine, just contact us, we are looking for regional agent. We hope to develop long coopearation with you and provide you best price.

FAQ 1, What types of this manchine can you supply?--- Hydraulic and pneumatic two types.2,What is the lead time normally?-- About 25 working days after getting the deposit money from client;3,What is the payment terms?-- T/T. 50% deposit in advance and 50% balance before shipment;4,How about the shipment method?-- Normally, plywood case packing and do LCL shipment.5, How about your warranty and after-sale service?---The warranty is 1 year, if any part broken within one year, we will send the parts to client by express.If there is question about the operation or using, we will give technical support to guide client to do well.
