AA SSR 70-280VAC Input 24-480VAC 0utput Three Phase Solid State Relay 60A

Product Description

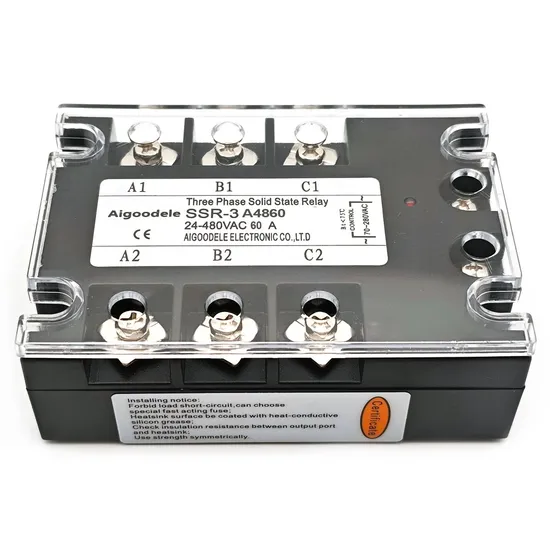

Product Description Product :Three-Phase Solid State Relay
Model : SSR-3 A4810 A4825 A4840 A4860 A4880 A48100 A48120 A48200
Current : 10A 25A 40A 60A 80A 100A 120A 200A
Control mode : AC control AC
Control voltage : 70-280VAC
Load voltage : 24-480VAC


Product Parameters

Parameter
Model	JGX-3 SSR-3 AC to AC
Control voltage	70~280VAC
Min Control Current	5mA
Max Control Current	25mA
Load voltage	24-480VAC
Load Current	10A/25A/40A/60A/80A/100A/120A
lnsulation Resistance	1000M Ohm/ 500VDC
off Leakage Current	<=2mA
on voltage	<=1.5V
On-off Time	<=10ms
Ambient Temperature	-20~+75ºC
Mounting Method	screw fixed
please use with radiator
Equipment power : equipment voltage = type selection current
Type selection current x Coefficient = equipment current (coefficient: 35% for resistive load and 20% for inductive load) For example: if a motor with rated current of 3A is inductive load,

Step 1: Choose a correct control Mode
AA- AC Control AC
Step 2: Choose a correct type
Current of Equipment/Ratio = Current of SSR
PS: The Ratio depend on the kind of your loading equipment.
Resistive load :70%, Inductive load:20%,Capacitive load:10%.
Step 3: Choose a suitable heat sink
During the useage of SSR, it will give out a lot of heat, so in order to extend the life of your SSR, please install a heat sink , also if the current is over 60A,the cooling fan also required.
Notice:
The inside of the solid-state relay is a semiconductor. A semiconductor switch is a non-physical contact switch. if use a multimeter diode or resistor to test ,it always show a high-impedance state, (multimeter light red).
According to the conventional detection methods of solid state relays: a load is required to test the switching state. Using an incandescent lamp as a dummy load is an obvious way to test continuity.
Application Note: This ssr relay module is not suitable for inductive loads such as transformers and motors.
Heating: electric furnace, injection molding equipment, thermoforming, textile equipment, infrared heating, drying system
Application Occasion:Lndustrial Kiln /Automatic Equipment /Heating Equipment /Lighting Equipment
