High Efficiency 1325 CNC Engraving Machines Woodworking CNC Router for MDF Furniture for Sale in Canada

Product Description

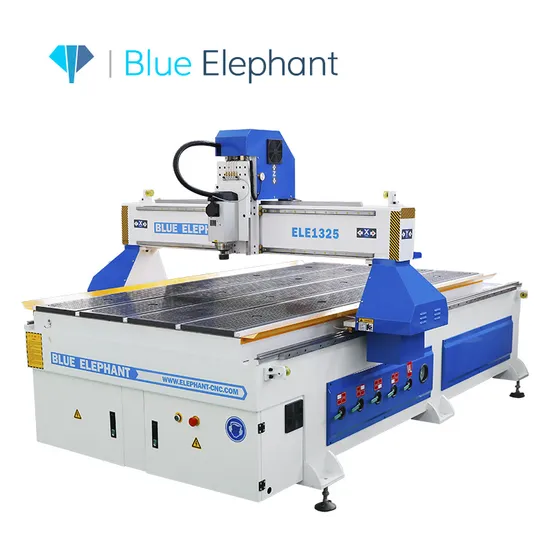

1325 CNC Engraving Machines Woodworking CNC Router for Mdf Furniture
Advantage
1) 10-12mm industrial class square tube strong bed. You can use our elephant cnc router more than 10 years.
2) T-slot working table, pvc protection. T-slot table surface is generally designed for acrylic, aluminum, pvc, pcb etc plastic or metal cutting, milling carving. We can also design vacuum and t-slot table for you, if you also need wood carving.
3) DSP A11 control, very easy operation and support offline which means that you can still operate even though meet power off.
4) Italy HSD 7KW Air cooling spindle. International famous brand, good using and guaranteed after-sale service
5) Stepper motor. Big power supply. Servo motor for your option Parameters

Description	Parameter
X,Y,Z Working Area	1300*2500*200mm
Table Surface	T-slot working table
Structure	10-12mm industrial class square tube strong structure
X Y Z Structure	Helical rack gear for X, Y axis, Taiwan TBI ball screw for Z travel; all axis Sweden SKF group ABBA linear guide and rails, 20#
Max. Working Speed	30000m/min
Spindle	Original Italy HSD 7KW Air cooling spindle
Spindle Speed	0-24000RPM
Drive Motors	FL118 bigger stepper motor and YAKO2811 driver
Inverter	Taiwan DELTA 7.5KW inverter
Command Language	G Code
Control System	RichAuto DSPA11 handle controller with USB port
Computer Interface	USB
Lubrication	Automatic Lubrication system
Tool sensor	Manual tool sensor calibration
X,Y Resolution	<0.01mm
Spare parts	Japan OMRON limit switch for X, Y, Z axis; Highly flexible towline, fire-resistant double-sheathed Shanghai Cardiff cable; French Schneider electric parts; Independent control box; 1.5KW Double bags dust collector with CE Certificate;
Software Compatibility	Artcam 2012 software for free, (Option: Artcam Type3 Software)
Working voltage	380V/50HZ/3PH

PS:All the working area and specifications can be customized according to your requests.
Sample & Application
1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*More than 95% of the timely response rate, timely response to customer questions
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.
Packaging & Delivery
Packaging Details
1.The innermost layer is EPE pearl cotton film package.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5.If you need a wooden box, we will make a wooden box.
Delivery Detail: Shipped in 25-30 working days after payment.
Company Introduction
Jinan Blue Elephant CNC Machinery, the professional cnc router and laser cutting machine manufacturer in China, include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving Machine and so on, which have passed the CE, SGS, ISO9001 etc. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.
