US$10,000.00-80,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Telescoping Lift
Carrying Capacity
Special Weight Level
Feature
Explosion-Proof, Insulating
Type
Telescopic Boom Lifting
Platform Dimensions
2.44*0.91
Transport Package
Nude Packing
Production Capacity
3000 PCS/Year
Packaging & Delivery
Package Size
910.00cm * 249.00cm * 259.00cm
Package Gross Weight
10000.000kg
Product Description
Product Parameters

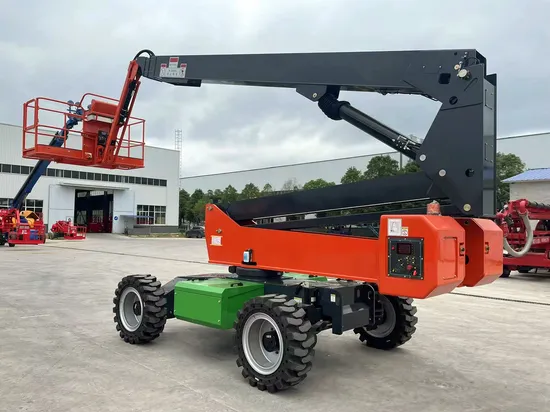

TELESCOPIC BOOM LIFT
SPECIFICATION
Model | GTBZ22D | GTBZ24D | GTBZ29D |
Working height maximum M | 21.6 | 23.5 | 28.6 |
Platform height maximum M | 19.6 | 21.5 | 26.6 |
Working radius maximum M | 13.7 | 15.8 | 18.5 |
(L*W) Platform dimensions M | 2.44*0.91 | 2.44*0.91 | 2.44*0.91 |
Lift capacity kg | 300 | 300 | 300 |
Length (stowed) M | 10.06 | 9.1 | 10.76 |
Width M | 2.49 | 2.49 | 2.5 |
Height( stowed) M | 2.6 | 2.59 | 2.83 |
Wheelbase M | 2.5 | 2.5 | 3 |
Ground clearance M | 0.35 | 0.35 | 0.35 |
Turning radius of inner wheel m | 2.1 | 2.1 | 1.6 |
Turning radius of outer wheel m | 5.4 | 5.4 | 4.73 |
Turntable rotation | 360° | 360° | 360° |
Platform rotation | ±90° | ±90° | ±90° |
Drive speed(stowed) km/h | 4.4 | 4.4 | 4.4 |
Drive speed(raised) km/h | 1.1 | 1.1 | 1.1 |
Max.Gradeability | 40% | 40% | 40% |
Solid tire specification | 36×14-20 | 36×14-20 | 36×14-20 |
Battery V/Ah | 48V460Ah(Lithium) | 48V560Ah(Lithium) | 48V300Ah(Lithium) |
Charger V/A | 48/60 | 48/60 | 48/60 |
Control voltaqe | 12V | 12V | 12V |
Drive Motor | 4×4kW | 4×4kW | 4×4kW |
Weight kg | 9000 | 10000 | 12000 |
Platform Leveling | Automatic Leveling | Automatic Leveling | Automatic Leveling |
STANDARD FUNCTION
1 | Automatic Leveling Platform | 15 | Horn and buzzer safety warning |
2 | 180°Hydraulic Rotary Platform | 16 | Strobe light |
3 | Driving confirmation | 17 | Maximum allowable 5 ° working inclination angle |
4 | Three handle gradient proportional control | 18 | Tilt protection system |
5 | Thumb rocker steering | 19 | High definition color large screen |
6 | Weighing system | 20 | Fault Diagnosis System |
7 | Foot switch | 21 | 360 ° turntable rotation |
8 | Operator anti extrusion protection system | 22 | Turntable protection lock |
9 | Emergency stop system | 23 | Timer |
10 | Emergency descent system | 24 | Oil cylinder protective sleeve |
11 | Emergency braking release | 25 | Arm dustproof component |
12 | Descent and movement alarm | 26 | Front floating bridge |
13 | AC power cord connected to the platform | 27 | Four-wheel drive |
14 | Line protection sleeve | 28 | Four wheel brakes |
INTRODUCTION
Can adapt to specific working environment, that is, can work in wet, corrosive, dusty, high temperature, low temperature environment.
The machine has the function of automatic walking, can be in different working conditions, fast and slow walking, only one person at the height of the operation can operate the machine to complete the lifting, forward, backward, steering, rotary and other actions, compared with the traditional hydraulic platform greatly improve the work efficiency, reduce the number of operators and labor intensity.
FEATURES JIB with a 90 °- 360 ° rotatable platform. The ability to drive and operate at full height Stabilization technology helps good performance Fast elevating boom at full height Unparalleled platform stabilization Smart control system make the lower energy consumption. Compact structure dimension for narrow space work. Straight boom provides greatest horizontal reach Best-in-class grade ability and reach Fastest lift and drive speeds for unmatched productivity
