Stainless Steel High Shear Mixing Tank Emulsification Tank
| US$2,800.00-8,300.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
WYES-800
Application Area
Food
Certification
CE
Condition
New
Main Material
Stainless Steel
Mixing Drum Shape
Disc
Stirring Type
Spiral
Working
High Speed Mixer
Capacity
800L
Material
SUS304
Heating Mode
Steam Heating
Number of Layer
Two Layers
Motor Power
3kw
Mixing Speed
3500rpm/ 1750rpm
Motor Position
Top or Bottom
Mixer Type
Agitator
Layout Type
Verticle
Operating type
Cycle Operating
Transport Package
Wooden Case
Origin
Wenzhou China
Product Description
Emulsifying tank stainless steel high shear mixing tankHere is the high shear mixer, or you can call it high shear mixer, mixing speed is 3000rpm.
Made into 3 layers or 2 layers, inner layer was the contact part with your raw material such as milk, juice or any other liquid product… Outside the inner layer, there is a heating / cooling jacket for steam or hot water / cooling water. Then comes the outer shell. Between outer shell and the jacket, there is a 50mm thickness temperature preservation layer.

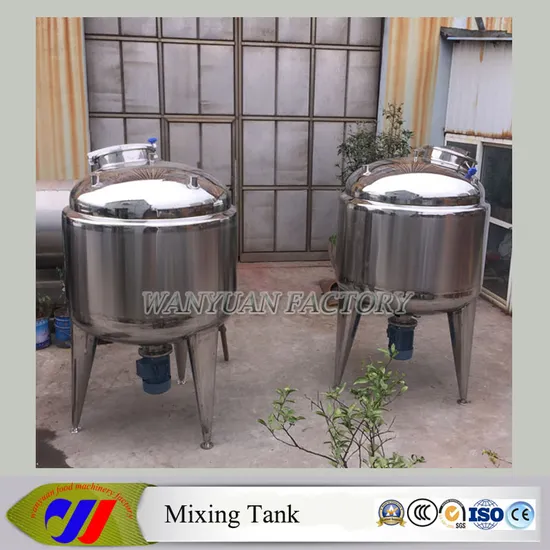

Emulsifying tank pictures:
----Motor at the bottom
The specification of emulsifying tank
| Model | LRG-1T | LRG-2T |
| Capacity | 1000Liter | 2000Liter |
| Construction material | AISI304 | AISI304 |
| Design pressure | 0.3Mpa | 0.2Mpa |
| Working pressure | 0.25Mpa | 0.25Mpa |
| Design temperature | 171 degree C | 171 degree C |
| Working temperature | 110 degree C | 110 degree C |
| Heating medium | Steam / hot water | Steam / hot water |
| Cooling medium | Tap water / ice water | Tap water / ice water |
| Mixing speed | 3000rpm / 960rpm | 3000rpm / 1450rpm |
| Mixer type | high shear mixer / disperser | high shear mixer / disperser |
| Motor power | 3kw | 5.5kw |
| Dimension | Φ 1300 ×2100mm | Φ 1500 ×2300mm |
