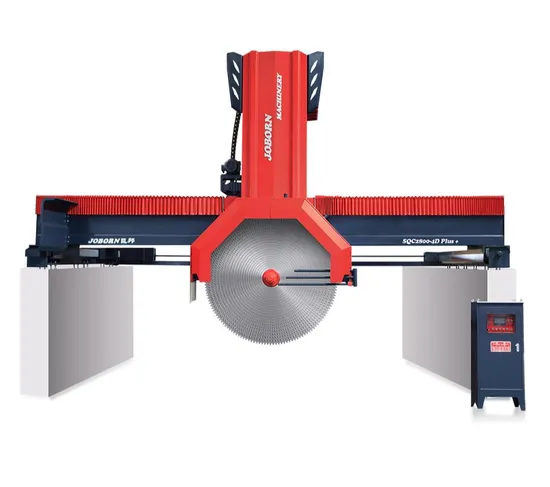

Hot Sale Bridge Type Block Cutter with Combination 16 Blades in Bulgaria
| US$29,500.00-36,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
sqc2500-4d
Usage
Granite, Marble
Application
Stone Industry
Source Voltage
380V
Automation
Automatic
Cutting Ability
High Speed
Control
PLC
Certification
ISO, CE
Max. Blade Diameter
2500mm
Max. Processing Length
3500mm
Max. Processing Width
2200mm
Main Motor Power
55kw
Max.Lifting Stroke
1350mm
Spindle Length
500mm
Spindle Diameter
100mm
Transport Package
Standred Packing
Trademark
Joborn
Origin
China
HS Code
8464109000
Production Capacity
360 Sets/Year
Product Description
Product Description| Appellation | Unit | Type A | Type B |
| Max. Disc Diameter | mm | Φ2200/Φ2500/Φ2800 | |
| Max. Processing Length | mm | 3800/3500/3200 | 4300/4000/3700 |
| Max.Processing Width | mm | 2200 | |
| Max. Lifting Stroke | mm | 1350 | |
| Water Consumption | m³/h | 15 | |
| Power Of Main Motor | kW | 37/45/55 | |
| Total Motor | kW | 48/56/66 | |
| Dimension(L*W*H) | mm | 8000*4400*3700 | 8500*4400*3700 |
| Weight | kg | 14000 | 14500 |
This machine adopts microcomputer control system and human-machine interface, uses inverter to control left-right feeding, adjusts the speed according to the stone material.
It uses hydraulic lifting system , combination of chrome-plated guide pin and wear guide bush, with small gap , wearable, beautiful structure , and guide sleeve with multi-layer seals , with waterproof , dust-proof , anti-spill , improving the service life, main motor uses brand energy-efficient motor, reduces the later using cost;forward-backward automatic slicing uses high-precision screw nut driving, main spare parts adopt imported good-quality materials;
The block can be placed in the ground directly to save worktable and its maintenance costs; thus the whole machine is featured as high cutting efficiency, high slicing precision, and flatness of plate after cutting, high stability, easy-operating to suit specially cutting granite and marble block with high value and big size. Note: 360°rotating worktable can be selected if customer requires.
