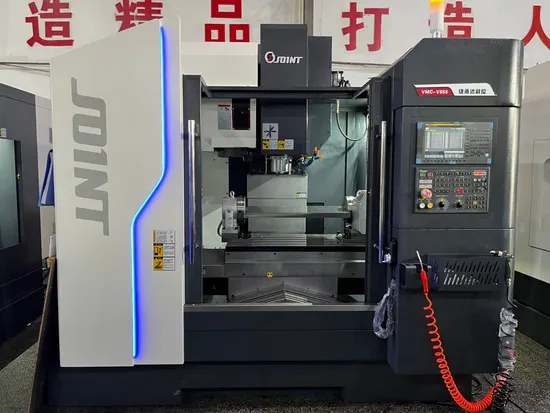

Vmc-V855 CNC Vertical 3 Axis Milling Machine for Sale with 4 Axis or 5 Axis with Reasonable Price

Vmc-V855 CNC Vertical 3 Axis Milling Machine for Sale with 4 Axis or 5 Axis with Reasonable Price

US$29,840.00-52,100.00 1 set (MOQ)

Basic Info.

Model NO.
VMC-V855
Process Usage
Metal-Cutting CNC Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.006mm/M
Performance Classification
High-End CNC Machine Tools
Certification
ISO 9001
Condition
New
Table Size
1000*500mm
Machining
Parts Machining
Rotation Speed
10000/12000/15000rpm
Spindle Taper
Bt40
X Axis Travel
800mm
Y Axis Travel
540mm
Z Axis Travel
540mm
Distance Between Spindle and Work Table
140-690mm
Spindle Power
7.5kw
Spindle Type
Belt or Direct Spindle
Three Axis Type
Linear Guide Way
Max Tble Load
500kgs
T Slot
3-18-130
Spindle Output Torque
35/35.8
X Axis Motor Rate
2.0/1.8
Transport Package
Wooden Package
Specification
2550*2850*2800mm
Trademark
JOINT
Origin
China
HS Code
8457101000
Production Capacity
150 Sets

Product Description


Introduction:
This V series CNC machine center has the characteristics of fast feed speed and high rotation speed, so it is suitable for batch parts with many tools, complicated processing and multiple processes. Mainly processing cabinets, complex curved surfaces, heterosexual parts, disks, sleeves, plate parts, etc., are widely used in electronics, machinery and automotive, automation, medical, national defense and other fields.

Why we design VMC-V855:
First of all, 850 two axes linear guideway model is the traditional one, with thick fuselage, and relatively small screw pitch, and relatively slow processing speed, generally 24m/min. 850 series is used for processing aluminum workpiece, steel workpiece and mold, with characteristic s of high rigidity but low efficiency.
Second, v85 three axes linear guide way model is popular series for processing aluminiun workpiece in recent years because of light and handy fuselage and high three axes moving speed, generally 48m/min. But when it process steel workpiece, it's rigidity is not enough, and its speed need to slow down.
However, now lots of customers receives include aluminium and steel, and usually it is batch orders. such as the automation module processing industry
For these customers, buying one of these two models is not enough for them. 850L is not high efficiency for aluminium parts and v85 is not rigid enough steel parts. And it is not high cost performance for buying both of them. So we launch a new model v855 which can meet customers'efficiency and rigidity requirements. And it's cost hasn't increased much.
New Comer Advantages:
1. First, rigidity is greatly enhanced. Some V855, V856 models on the market, that is, the rigidity is increased, just widened the base, the rigidity is improved, but not very much, because from the force analysis, the biggest force is the spindle box and column, and finally to conduct to the end seat. So our V855 is according to the force analysis and improvement of the structure of the spindle box (see video) on the fuselage widened, and the pillar is shortened, pillar line rail mounting surface widening, Z axis increased to 6 sliders, column on both sides of the widening, increase the knife library brackets, on both sides of the balance, it is adopted the design of high precision mould machine V85P, base also widened, The rigidity of the machine was increased across the board. The structure of V855 can withstand the inertia generated by accelerated processing speed, in the machine tool fast feed, the overall dynamic response characteristics are higher, compared to THE V85 model, the cutting speed can be accelerated, the cutting effect will be better, but also can easily process steel parts. Now we use A ф 16 milling cutter, processing 45 steel, feed speed 3500, speed 4000, depth 50 wire, machine tool without vibration, very smooth, there is no vibration sound. Let's see the processing effect, knife lines is neat, smooth and bright.
2. In cooperation with Fanuc, we have developed an independent single page to display the alarm and maintenance functions of oil pumps and refueling machine tools. You can operate on one page by clicking directly without switching to different pages, which speeds up the operation efficiency of users.
3. There are 10 grade parameters in the system. Users can choose different grades according to their own processing requirements to get different processing effects. For example, rough machining, choosing level 10, can reach high processing efficiency. When you just need low finishing, you can choose level 5, processing speed will become slower for high finishing processing. We also set up a professional packet storage module for this machine additionally. If customers have special and regular processing requirements, its adjusted parameterss can be stored in the module, then at next time customers can directly use this module when processing similar parts, no need to adjust again. This storage module is our unique technology. Similar products currently on the market do not have this technology in China.
Specification:
Model V855
Travel X axis travel mm 800
Y axis travel mm 540
Z axis travel mm 540
Distance between spindle and table mm 140-690
Distance between spindle and column mm 590
Table Size mm 1000*500
Load kg 500
T slot size mm 3-18-130
Spindle Taper BT40
Installment diameter mm Φ150
Rotation speed r/min Belt 50-10000/Direct 12000/15000
Three axis X,Y axis motor output torque N.M 13.7/11
Z axis motor output torque N.M 22.5/20
X,Y axis motor rate KW 2.0/1.8
Z axis motor rate KW 3/3
Cutting feed m/min 15
Rapid feed m/min 48/48/48
Arm type Tool magazine Tool capacity T 24
Maximum diameter/ length/ weight of tool mm/mm/kg 80/200/8
Maximum diameter of tool (no tool) mm 150
Tool change time (T-T) s 2.8
Accuracy Positioning accuracy (X/Y/Z) mm 0.006/0.006/0.006
Repeat positioning accuracy (X/Y/Z) mm 0.005/0.005/0.005
Other Dimension mm 2450*2535*2660
Power capacity KVA 15
Weight kg 5200

Applicant Industry:
Standard accessories:
1. Mitsubishi/ Fanuc controller system with AICC2 Function
V85C direction connectin with 12000rpm SPEEDCN spindle
2. Fully enclosed cover
3. Pneumatic system
4. Anto lubrication system
5. Work piece coolant system
6. Heat exchange
7. Air gun
8. Water gun
9. Spindle oil coolant
10. 24T Arm type tool magazine
11. Rear flishing
12. Hand wheel
13. RS232 Interface
14. Alarming light
15. Working light
16. Guide way cover
17. Technical documents
18. Operation manual
Optional accessories:
1. Screw type conveyor
2. Chain type conveyor
3. 4 axis Rotary table
4. Coolant through spindle (CTS)
5. Spindle rotation speed can be direct connection with 12000rpm.

Package:

Company Information:
Shenzhen Joint Technology CO.,LTD., was established in 1995. One of our headquarters is located in PingHu town, Shenzhen City ,Guangdong province ,China, we are dedicating to research and development, production, sale, and service of mold processing machine tools and specialized machine tool equipments for machine work of excellent quality for more than two decades.
There are eight series of products-high speed turret milling machine, precision surface grinding machine, EDM machine tool, CNC milling machine, NC milling machine, Gantry type machine center, CNC engraving machine, and CNC lathe machine
Our own brand "JOINT " Has been the top quality machine's signal in domestic sales, JOINT also has been recognized as " GUANGDONG Famous Brand ", and milling machine was recognized as " TOP 10 Famous Brand of Milling machine " in China. Our product had been exporting to Europe, South America, Southeast Asia, the middle east etc, and enjoyed a good reputation there, Welcome your visit !
