Tsautop 2.4*1.2*0.9 Meter Stainless Steel Manual Hydro Dipping Tank

Product Description

TSHDT Series CE Certification Manual Hydro Dipping Equipment Hydro Dipping Tank

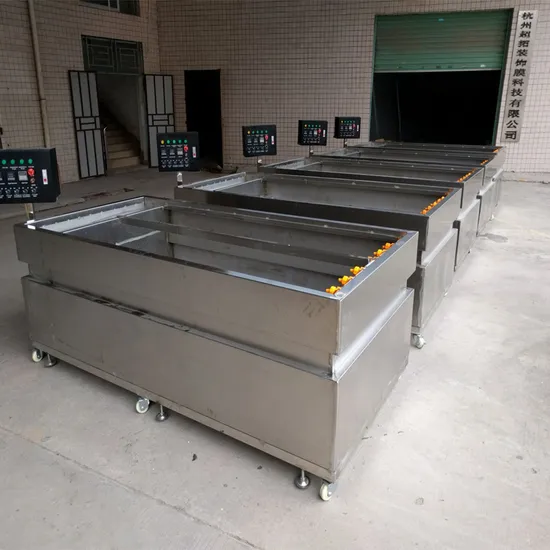

TSAUTOP® hydro dipping tank with CE certification is a simple, safe, useful, eco and efficient hydro dipping machine. It is a key equipment for the whole hydro dipping process. It is very suitable for small dipping business owners.
TSAUTOP® hydro dipping tank has a superb welding process and a humanized structural design. All welded parts are welded with 304 stainless steel welding wire. All the welding marks are polished to ensure no leaks. So, it can guarantee no water leakage for 5 years. TSAUTOP® hydro dipping tank is equipped with 4pcs wiper and partition plate and one beam, can wipe the film slag and divide the dipping area into few small areas, ensure the film not to expand too much. TSAUTOP® hydro dipping tank is designed as two parts dipping tank, filter and heating tank. It ensures enough dipping area and fast heating.
TSAUTOP® hydro dipping tank is made of 2.5mm thick 201 stainless steel, framed of 2mm thick 304 stainless steel square pipe and equipped 6pcs universal wheels and thick feet, all of these ensure that the hydro dipping tank can hold enough water without deformation. Thick stainless steel can ensure to resist acid, alkali, salt and corrosion. All of these ensure TSAUTOP® hydro dipping tank long life.
TSAUTOP® hydro dipping tank have good quality and high-power heating element.1.2m tank has 1set 6kw heating element,2-3m tank has 2sets 6kw heating elements. This can ensure fast-heating in 30minutes.There has 2 pcs thermostats on the control box and 2pcs temperature sensors, the temperature of dipping tank and heating tank can be set and monitored real-time. When the temperature reaches the set temperature, the heating element will stop to heat water, this will save your power. In the normal, the temperature will set 25-35ºC.Certainly, you can turn on all or one or nothing according your local temperature.
TSAUTOP® hydro dipping tank is equipped low-noise, strong-flow and long-life stainless-steel water pump, ensure flush the film slag. 375W pump for 1.2m tank,750w for 2-3m tank, We can make the tanks with various voltages as your requirements, such as single phase 110v,220v,3phases 220v,380v or the other special votages. There have some high-pressure spray nozzles at the end of water outer ensure the water flushed farther.
The electric box and wires of TSAUTOP® hydro dipping tank is equipped safely. All working units are equipped of circuit breaker protection switches and emergency stop switch, ensure the safety of human and machines in the emergency. All wires are concealed and packed of protective pipe to prevent electricity leakage. All tanks have equipped earth wire to avoid electric shock.

TSAUTOP® hydro dipping tank is easy to install and operate. The electrical wire connecting is simple. Each wire sticks a number, you connect the wire as the number. We supply detail manual book. We have different dimensions hydrographic tank, you can choose the suitable one according to your working items.

Item NO.	TSHDT1200 L*W*H	TSHDT2400 L*W*H	TSHDT3000 L*W*H
Overall Size	120 * 70 * 85(cm)	240 * 120 * 85(cm)	300 * 120 * 85(cm)
	3.94 * 2.3 * 2.79(ft)	7.87 * 3.94 * 2.79(ft)	9.84 * 3.94 * 2.79(ft)
Dipping Area Size	80 * 60 * 70(cm)	200 * 100 * 70(cm)	260 * 100 * 70(cm)
	2.62 * 1.97 * 2.3(ft)	6.56 * 3.28 * 2.3(ft)	8.53 * 3.28 * 2.3(ft)
Machine Material	Thickness =2.5mm+-0.2mm 201#Stainless Steel	Thickness =2.5mm+-0.2mm 201#Stainless Steel	Thickness =2.5mm+-0.2mm 201#Stainless Steel
Heating Elements	1Set, 208-240V, Single Phase, 50 HZ, 6000W	2 Sets, 208-240V, Single Phase, 50 HZ, 6000W*2	2 Sets, 208-240V, Single Phase, 50 HZ, 6000W*2
Water Recirculation System	Stainless Pump, 220V, Single Phase, 50 HZ, 375W	Stainless Pump, 208-240V, Single Phase, 50 HZ, 750W	Stainless Pump, 208-240V, Single Phase, 50 HZ, 750W
Certification	CE	CE	CE
