Fiber Laser Cutting Machine for Metal Tubes Steel Pipes Industrial Tube Cutting Machine Round Pipe Sqaure Tube Rectangle Tube Fiber Laser Cutting Machine

Product Description

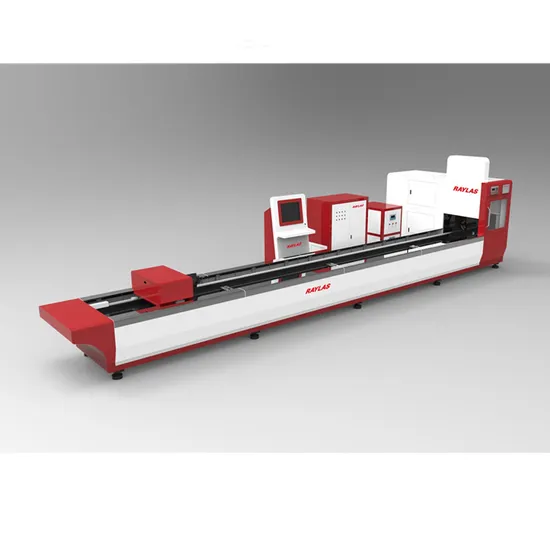

Fiber Laser Cutting Machine for Metal Tubes
Industrial Tube Cutting Machine
We can produce 5 Axis and 6 Axis Tube Cutting Machine with 2 Chucks.
We can produce 8 Axis and 9 Axis Tube Cutting Machine with 3 Chucks.
We can customize the tube cutting laser machine according customer's requirements.
Tube Shapes that our machine can cut:
Round Pipes, Square Tubes, Rectangle Tubes, Oval Tubes, etc.
H-shaped Tubes, I-shaped Tubes, L-shaped Tubes, U-shaped Tubes, V-shaped Tubes, W-shaped Tubes, etc.
Cutting Materials: Stainless Steel, Carbon Steel, Aluminium, Alloy, etc.
Chuck Numbers: We can produce tube cutting machine with 2 chucks or 3 chucks.
Chuck Size: 160mm, 220mm, 240mm, 320mm, 360mm, 450mm, etc.
Tube Cutting Length : 6000mm or 9000mm or 12000mm.
Laser Source:1500W, 2000W, 3000W, 6000W, 12000W.
1.Standard Configurations of RL-FLT6000-3000W Raycus

Major Configurations	Content	Brand
Laser Generator	Raycus	Raycus 3000W
Laser Cutting Head	Auto Focus	Raytool, Switzerland BM111
Height Controller	Capacitive transducer	Cypcut, China (Bus Control System)
CNC Controller	TubePro
Professional Laser Cutting Software	TubePro
Speed Reducer	Shimpo	Shimpo, Japan
Rack and Pinion	YYC	YYC, Taiwan
Linear Guide	HIWIN	HIWIN, Taiwan
Proportional Valve	SMC	SMC, Japan
X/Y Drag Chain	Mammut	Mammut, China
Shield Cover	Domestic	Cangzhou, China
Industrial Water Chiller	Domestic	TongFei, China
Industrial PC and LCD Screen	Domestic	Raylas ,China
Double Servo driver system	Delta	Delta, Taiwan
220mm Front Chuck +220mm Back Chuck	Dairuike	Dairuike, China

2.Technical Data

Technical spec	Standard Data
Total weight	7T
Total Power	37KW
Laser Type	Fiber laser
Maximum Cutting Thickness	16MM Mild steel, 8MM Stainless steel
Effective Cutting size	Maximum Tube Cutting Length: 6000mm or 9000mm or 12000mm Circular tube:20MM-200MM Square tube:20MM-150MM I Type: 14# /U Type: 14# /L Type: 11#
X.Y.W Axis Drive system	Rack and Pinion mode, Yaskawa / Delta servo system 3KW W1/ 1.8KW W2/ 1.8KW Y1 /1.8KW Y2 /1.3KW X /400W Z /1.8KW S1/ 1.8KW S2
Laser cutting head Drive System	Ball screw mode, Yaskawa / Delta servo system
Machine loading tube weight	264KG10%
Laser cutting head lifting distance	150MM

3.Technical Accuracy

Maximum rapid X, Y Axis Speed	80m/min
Maximum rapid W Axis Speed	100r/min
Maximum Acceleration X, Y Axis Speed	0.8G
Position Accuracy	0.02mm/M
Repeat Accuracy	0.03mm/M
Cooling Style	Recycling water
Assistant Gas	Oxygen/Nitrogen/Compressor Air
Continuous Working Time	24 Hrs

4. Equipment Working Condition

Sub item	Item	Requirements	Notes
Power	Laser Source	10KW	The total installed capacity is not less than 37KW, And this machine need very good ground line.
	Chiller	5.7KW
	Machine Servo System	13.7KW
	Dust blower Motor	5.5KW
	Other accessories	2KW
	Stability of 3-phase power	380V±5%
	Instability of 3-phase power	<2.5%
	Earthing	<4Ohm
Water	Water for Chiller	Distilled water without minerals	Change every month
Gas	Cutting Gas	N2>99.5%	The processing parameters
		O2>99.5%
		AIR pressure should not less than 0.8MPA
Working	Temperature requirements	5-40 Degree
	Humidity requirements	Less than 70%
	Foundation requirement	There should be no vibration source nearby	If there is a vibration source on site or nearby, the user is required to dig an anti-vibration trench around the foundation
Work piece	For CS and SS: quality surface and no rust

5. Laser Source for Fiber Laser Cutting Machine for Metal Tubes
We can equip the Raycus laser source or Max laser source with the laser cutting machine.
6. Laser Cutting Head for Fiber Laser Cutting Machine for Metal Tubes Switzerland imported laser cutting head Raylas customized. Auto Focus function (software control focus) Anti-collision function with non-contact Capacitance sensor Breakpoints Cutting Quick and Convenient part changing
7. Laser Cutting Software for Fiber Laser Cutting Machine for Metal Sheets and Metal Tubes
Cypcut Operating System (Higerman):
A simple visual operating system that allows for intuitive adjustment of laser power, gas type, and pressure; Automatic positioning; NC file import support, flexible process, image display, and simple operation The special processing system for H-shaped steel is easy to install, simple to operate, excellent in performance, complete in process solutions, realizing stable and high-precision cutting, integrating a powerful data process library, and bringing users a simple, convenient, and efficient intelligent experience
Nesting Software: supports all Tekla building software, intelligent nesting, reporting function, unlimited upgrades, and supports the WIN10 system. Intelligent temperature control, constant temperature guarantee.
8. Front Chuck and Back Chuck
For sheet and tube cutting machine, there are four types of chucks:
220mm, 240mm, 320mm, 350mm, 360mm, etc.
Back Chuck System
Pneumatic Clamp:
Operate Mode: The four claws are controlled by pneumatic system which is intelligent and convenient.
Features:
1. It's easier to clamp any different kinds of pipes without any adjustment.
2. Travel distance: 0mm to 220mm. All of the axle can be adjusted easily according to pipe diameter. 3.The clamp pressure is able to adjusted, any thickness pipes can be non-damage clamped.
Sum: Save time, Save cost, Operate easily, More efficient!
Front Chuck System
Pneumatic Clamp:(0-220MM)
Operate Mode: The four claws are controlled by pneumatic system which is intelligent and convenient.
Features:
1. No matter square pipe or circular pipe, the claws can be adjusted easily according to pipe diameter.
2. Adopt fully enclosed design, effectively prevent smoke and dust from entering during cutting.
3. A large number of parts are designed with aerospace aluminum, which reduces the weight of the chuck, increases dynamic performance and rotational stability.
4. One-button clamping, easy to use and improve production efficiency.
9. Tube Cutting Samples
10. Tube Cutting Machine Designs
5 Axis Tube Cutting Machine with Two Chucks More Designs
8 Axis Tube Cutting Machine with Three Chucks More Designs
11. Factory Pictures
12. Machine Delivery
We can delivery the machine by ship or by train.
13. Machine in client's factory
We will send engineer to client's factory to provide installation and training for clients.
14. FAQ Q: I don't know which machine is suitable for our company?A :Just tell us below informations1) Maximum steel tube size: for choosing most suitable machine size and machine model.2) Materials and Cutting thickness: for choosing suitable Power of laser generator.3) Business industries: We sell a lot of tube cutting machines and give advice on this business line.
Q: I don't know how to use after we received the machine, what should we do?A: We can provide online support such as team viewer/Whatsapp/Email/Phone/Skype.
We can also provide on site service if you need.
We will send engineer to client's factory to provide installation and training for clients.
Q: If we need Raylas technician to train us after order, how to charge?A:1) If you come to our factory to get training, it is free for learning.
And the seller's technician accompany you in factory about 5 working days.
(Every one learning ability is different,also according to details)2) If you need our technician go to your local factory to teach you ,you need to bear the technician'sbusiness travelling ticket / hotel and transportation, etc.
If you want to know more, please feel free to contact us, we will reply you asap.
