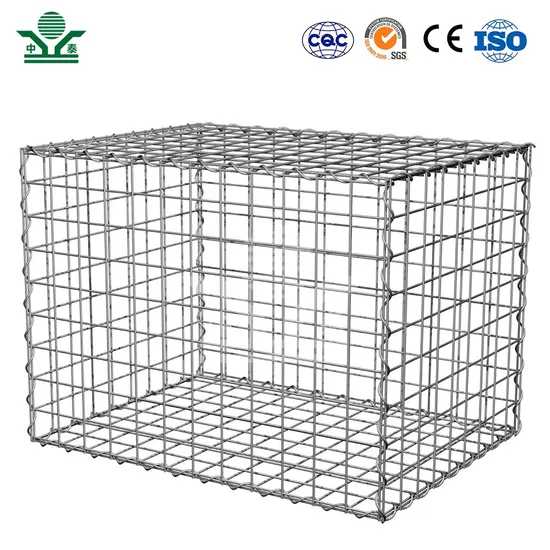

Zhongtai Gi Gabion Box China Suppliers Welded Gabion Box 1X0.5X0.5m 3.5-4.5mm Wire Gauge Galvanised Cages for Stones

Product Description

ZHONGTAI Gi Gabion Box China Suppliers Welded Gabion Box 1X0.5X0.5M 3.5-4.5mm Wire Gauge Galvanised Cages For Stones Product Introduction
Welded Gabion Installation Guide
Description
Welded gabion is manufactured from 4 mm galvanized or galvanic steel wire. Welded mesh in a square 76 × 76 mm. It is supplied in flat packs and complete with lacing wires or clips.
It is supplied in flat packs on pallets and lacing wire in rolls or spiral wire bundles.
Delivery
Gabions are delivered in a collapsed and compressed structure. They are strapped together in a folded form on pallets for save spacing and easy transporting. The lacing wire is delivered in coils and spiral wires are bundled.
Features And Advantages
Durable structure: High-strength steel wires and solid welds ensure welded gabion a rigid structure. It can prevent transformation even if it is filled with stones. The stiffeners can help keep their structure effectively.
Easy to assemble: It is easy to fold up and assemble on a construction site just needs simple accessories and tools. Lacing wire, spiral wires, and various connection methods for efficient installation.
Aesthetically appearance: welded gabion has a natural appearance and can be painted in various colors to blend well with the surroundings. Meanwhile, we provide an enhanced aesthetically pleasing appearance if combined with green plants or vegetation. Product Parameters

Common Specification of Welded Gabion Box
Wire diameter:2.0-5.0mm
Nominal Box sizes(m)	Mesh size(mm)	No. of diaphragms(no.)	Capacity per box(m3)
1.0×1.0x0.5	50×50 75×75 50×100 100×100	0	0.5
1.0×1.0x1.0	50×50 75×75 50×100 100×100	0	1
1.5×1.0x0.5	50×50 75×75 50×100 100×100	0	0.75
1.5×1.0x1.0	50×50 75×75 50×100 100×100	0	1.5
2.0×1.0x0.5	50×50 75×75 50×100 100×100	1	1
2.0×1.0x1.0	50×50 75×75 50×100 100×100	1	2
3.0×1.0x0.5	50×50 75×75 50×100 100×100	2	1.5
3.0×1.0x1.0	50×50 75×75 50×100 100×100	2	3
4.0×1.0x0.5	50×50 75×75 50×100 100×100	3	2
4.0×1.0x1.0	50×50 75×75 50×100 100×100	3	4
Remark: Customized size is also available

Detailed Photos

FAQ Q1. What Are Your Terms Of Packing?
A: Generally, We Pack Our Goods In Neutral White Boxes And Brown Cartons. If You Have A Legally Registered Patent,
We Can Pack The Goods In Your Branded Boxes After Getting Your Authorization Letters.
Q2. How About Your Delivery Time?
A: Generally, It Will Take 15 To 30 Days After Receiving Your Advance Payment. The Specific Delivery Time Depends
On The Items And The Quantity Of Your Order.
Q3. Can You Produce According To The Samples?
A: Yes, We Can Produce Your Samples Or Technical Drawings. We Can Build The Molds And Fixtures.
Q4. What Is Your Sample Policy?
A: We Can Supply The Sample If We Have Ready Parts In Stock, But The Customers Have To Pay The Sample Cost And
The Courier Cost.
Q5. Do You Test All Your Goods Before Delivery?
A: Yes, We Have 100% Test Before Delivery
Q6: How Do You Make Our Business Long-Term And Good Relationship?
A:1. We Keep Good Quality And Competitive Prices To Ensure Our Customers Benefit ;
2. We Respect Every Customer As Our Friend And We Sincerely Do Business And Make Friends With Them,
No Matter Where They Come From.
