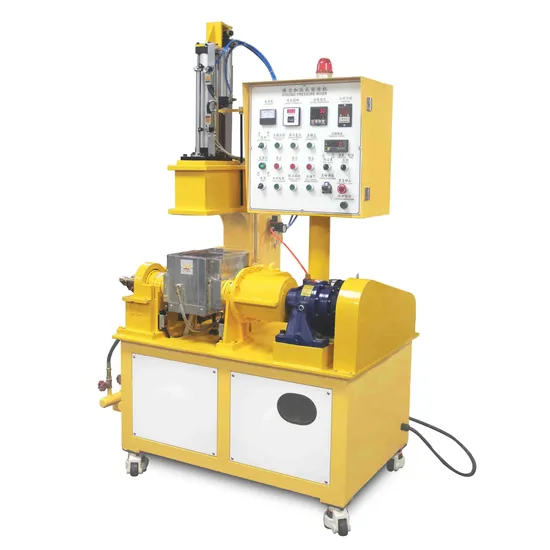

New Internal Rubber Mixer Equipment with Efficient Motor Manufacturer′s Kneader Machine for Enhanced Mixing

Product Description

Product Description:
This machine is suitable for stiring, kneading and dispersion of all kinds of chemical raw materials, such as plastic, rubber, synthetic rubber hot melt adhesive, etc. And then put the formula into the production line. This machine is equipped with PLC man-machine interface, temperature control module, and heat condition oil heating cooling system. Make it easy to operate, fast heating and cooling. With this machine, you can do many different experiments of all kinds of material in a short time.

XH-420-1L Technical parameter
Mixing Volume	1L, 3L, 5L, 10L,25L,50L,75L etc.
Control Mode	Key control/PLC control (optional)
Flip Motor	0.75kw
Rotor speed (front and rear)	40r/30 min (speed adjustable)
Filp Angle	110ºC
Air pressure	0.3-0.5Mpa
Volume(H*W*D)	1900*1300*1500mm
Weight	1300kgs
Power supply	3∮, AC380V (or customized)

Details Images
Control Panel:Here you can control the whole machine, control the temperature, rotor speed, dust cover rise and fall, etc., by adjusting here to achieve the appropriate mixing of the corresponding materials, in order to achieve the purpose of mixing.Mixer chamber:The ingredients that we're going to mix here,this machine is suitable for mixing,kneading and dispersiong of various chemical raw materials such as plastic,rubber,synthetic rubber,hot melt adhesive and low viscosity materials.Rotor:The material is mixed by the rotation of these two rotors, and in the mixing chamber,two agitator shafts with spiral edges on the surface are enclosed in the "W"chamber.Under certain pressure and temperature conditions, the two shafts are operated at a relatively different speed to stir and disperse the materials.
Internal Mixer Features
1) The local device automatic temperature and time control system, precise operation, simple and easy, mixing up and take the best uniform dispersion effect
2) The mixing tank to be dumped style, mixing shaft mechanical seal leak dry cleaning so easy to change colors easily
3) Pressurized sealed mixing chamber to ensure the quality of the mixture outside and prevent environmental pollution
4) Mixing tank using advanced alloy steel, wear-resistant steel surfaces are treated by surface abrasion particularly good, hard chrome plating
5) Electronic control requires adjustments according to customer requirements
Other size of Lab kneader. Such as 1L,3L,5L,10L,25L,50L,75,etc.
Our Service
If you face any problems in future during testing process we promise we will give you a reply within 24 hours and solution provide within 2 working days. We can offer operation video and English operation muanual. We can provide operation video for machines.Onsite Service
A. Device installation;
B. Equipment Operation Test Technology training;
C. Equipment Calibration;
D. Daily maintenance and maintenance of equipment
Free technical training for visiting factories
24-hour Online contact
Free software upgrades
Free information
A.Product Instruction;
B.Product operation instructionvideo;
C.Experiment Test (test application, test report)
24-hour Online contact
Free software upgrades
Free information
A.Product Instruction;
B.Product operation instructionvideo;
C.Experiment Test (test application, test report)
Device Problem Handling
A. Social media 24 hours online communication;
B. Mail Seamless Docking;
C. Video Conferencing;
D. Artificial free door-to-door service
Why Choose UsOur Company:Guangdon g Xihua Machinery Co., Ltd. is a laboratory equipment high-tech enterprise that integrates research and development, manufacturing, sales, and service.The company was founded in 1995 and is headquartered in Dongguan, Guangdong. The factory covers a total area of 15000 square meters. It has passed ISO quality management system certification and CE EU'safety certification.Our strength:Closely cooperate with many Fortune 500 companies, well-known domestic enterprises and research institutions. The international market covers Russia, Germany, Australia, the United States, Canada, Mexico, Brazil, India, Saudi Arabia, Singapore, Malaysia,South Korea, Thailand, Turkey, the Philippines. Vietnam, etc.Our customers:Closely cooperate with many Fortune 500 companies, well-known domestic enterprises and research institutions. The international market covers Russia, Germany, Australia, the United States, Canada, Mexico, Brazil, India, Saudi Arabia, Singapore, Malaysia,South Korea, Thailand, Turkey, the Philippines. Vietnam, etc.Our commitment:
>>24-hour service>>personalized customization>>20+ years manufacture experience>>lifetime after-sales service>>6000+ cooperative customers>>product quality assurance
Packing & DeliveryWe first wrapped the fuselage with a winding film and fixed it initially. Then it is further wrapped with pearl cotton to avoid damage to the machine due to bumps on the road, and finally the wrapped machine is placed in a wooden box for transportation to ensure the safe transportation of the product.
F&Q
1.I need this product, but what can i do the specifications shown on the details page are not what I want?
Please rest assured that all the company's product specifications, configurations, etc. can be customized according to customer needs, the product is only the company's standard machine model, you can customize according to demand, but it should be noted that the price will fluctuate.
2.Are you a manufacturer or a trading company?
We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.
3.How is your company's product after-sales service system?
The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.
4. How long is your delivery time? If I want to customize the instrument,how long does it take?
1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.5.How is the package of goods? Delivery methods?
1. Standard export fumigation sign wooden box packaging2. Express, air, sea shipping according to customer requirements, find the most suitable way.
More questions, please contact customer service.
