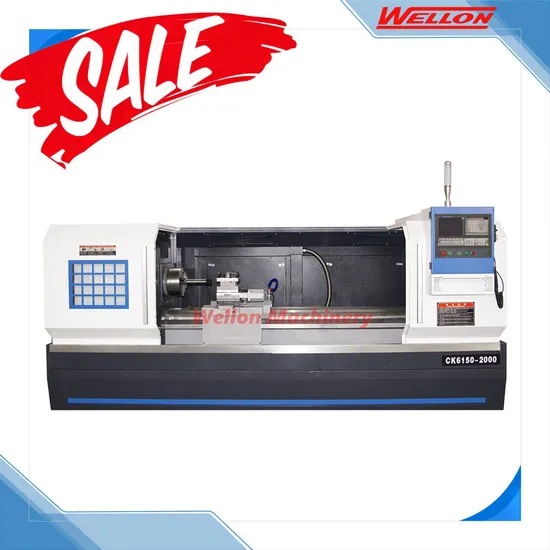

Flat Bed CNC Turning Lathe Machine (CK6150 horizontal Turning Machine)
| US$9,000.00-18,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CK6150
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Double-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Product Name
CNC Turning Lathe Machine
Swing Over Bed
500mm
Spindle Bore
82mm
Swing Over Cross Slide
250mm
Transport Package
Wood Case
Specification
CE ISO9001
Trademark
WELLON
Origin
China
HS Code
84597000
Production Capacity
10 PCS/Month
Packaging & Delivery
Package Size
250.00cm * 220.00cm * 200.00cm
Package Gross Weight
1800.000kg
Product Description
Product DescriptionProducts Description
Performence Features:
It can automatically process the inside and outside cylinder surface, cone surface, circle arc surface,end face. It can also turn the single and multiple threads in metric , inch and other standard.
1.high rigidity pedestal and wider lay board are suitable for heavy cutting
2.four station electric turret
3.frequency conversion stepless speed regulation
Technical parameter:
| SPECIFICATION | CK6150 |
| Max. swing over bed | 500mm |
| Max. swing over cross slide | 250mm |
| Max. processing length | 1000mm |
| Guide way width | 400mm |
| Spindle bore | 82mm |
| Max. diameter of the bar | 65mm |
| Spindle speed | 1800 rpm |
| Spindle nose | A2-8 (A2-11 optional ) |
| Spindle motor power | 7.5kw |
| X/Z axis position accuracy | 0.006mm |
| X/Z axis repeatability | 0.005mm |
| X/Z axis motor torque | 5./7.5 N.m (7/10N.m optional) |
| X/Z axis rapid feeding speed | 8/10 m/min |
| Tool post type | 4-station electric turret |
| Tool bar section | 25*25mm |
| Tailstock sleeve dia. | Φ75mm |
| Tailstock sleeve travel | 200mm |
| Tailstock taper | MT5# |
| N.W. | 2850kg |
| Machine dimension (L*W*H) | 2950*1520*1750mm |
Standard Accessories
Standard accessories :
Fanuc 0I mate TD control system
inverter main motor 5.5kw
4 station electric turret
200 mm manual 3 jaw chuck
manual tailstock
integrated automatic lubrication system
coolant system
lighten system
Optional accessories :
Servo motor 5.5/7.5kw
Invertor motor 7.5kw
6 station electric turret
8″Non-through hole hydraulic chuck
8" thru-hole hydraulic chuck
8″Non-through hole hydraulic chuck (Taiwan)
8" thru-hole hydraulic chuck( Taiwan)
Steady rest
Follow rest
Auto chip conveyor Company Profile
