High Precision Smell Size CNC Machine for Milling Hard Metals

Product Description

Introducing our Hot Selling High-Speed, High-Precision 3/4/5 Axis CNC Milling Machine - the epitome of cutting-edge engineering and performance excellence. Elevate your machining capabilities with our superbly crafted device designed to meet the highest industry standards.
Product Description
Model: TZ-V855 Our line rail vertical machining center represents a new generation of CNC machine tools, born from advanced design principles such as ergonomics, precision manufacturing technology, and innovative automation techniques. Through meticulous simulation calculations in engineering mechanics and comprehensive prototype evaluations, this remarkable machine delivers unparalleled performance. Perfectly suited for industries like medical, UAVs, new energy auto parts, precision fixture fabrication, and automation equipment manufacturing, it excels in mass-producing precision components with exceptional accuracy.
Product Parameters

Model		TZ-V640	TZ-V850	TZ-V855	TZ-V1165	TZ-V1270
Worktable size L*W	(mm)	700x420	1000x500	1000x550	1100x530	1200x600
Work table Max. loading	kg	350	400	500	500	600
T-slots size (N×W×D)	mm	3x18x125	5x18x90	5x18x90	5x18x90	5x18x100
X/Y/Z axis travel	mm	600/400/450	800/500/500	800/500/550	1100/650/600	1200/700/700
X/Y/Z axis feed speed	m/min	48/48/48	48/48/48	48/48/48	48/48/48	48/48/48
X/Y/Z axis motor	kw	1.5/1.5/3 kw	2/2/3 kw	2/2/3 kw	2/2/3 kw	3/3/3 kw
X/Y/Z axis roller Guide	mm	30/30/35	35/35/35	35/45/45	35/45/45	45/45/45
Spindle taper		BT40	BT40	BT40	BT40	BT40
Max. spindle speed	rpm	12000	12000	12000	12000	12000
Spindle motor power	kw	7.5	7.5/11	7.5/11	7.5/11	11
Distance from spindle nose to workbench	mm	150-610	120-620	120-670	150-750	140-840
A.T.C capacity	pcs	24	24	24	24	24
Positioning accuracy (X/Y/Z)	mm	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300
Re-positioning accuracy(X/Y/Z)	mm	±0.003/300	±0.003/300	±0.003/300	±0.003/300	±0.003/300
Machine weight	kg	4300	5000	6000	6800	8100
Machine size (L*W*H)	mm	2000*2400*2600	2500*2250*2650	2600*2500*2650	2700*2500*2750	3100*2760*3100

Detailed Photos
• Exact Size & Accuracy:
Diameter precision: A precise diameter of 63mm with a tight tolerance range of -0.05 to 0 ensures exceptional quality control and consistency.
Accuracy Excellence: The compact BT40 shanks are renowned for delivering superior accuracy and stability, making them ideal for precision machining tasks.
• High-Performance RPM:
RPM: Our high-performance spindles are designed to achieve impressive RPMs, suitable for high-speed cutting operations. With varying speed ranges dependent on brand and model, BT40 spindles commonly reach a remarkable 8000~12000 RPM.
• Sophisticated Lubrication and Cooling:
Employing advanced oil mist lubrication technology, our machine ensures comprehensive bearing lubrication even at high speeds. Concurrently, the spindle benefits from internal circulating waterway cooling to maintain optimal temperature control during high-speed operations.

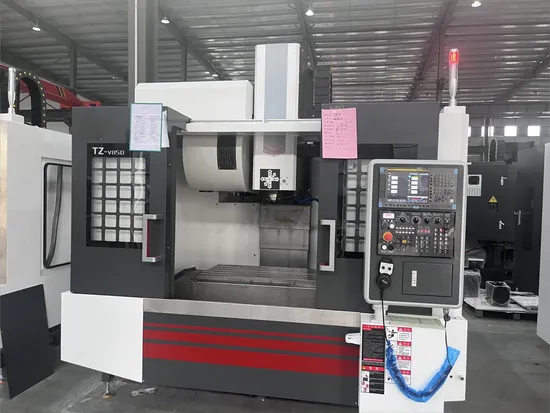

Picture of the machine

Main Parts		Branch/ Origin
CNC System		M80B Mitsubishi/ Japan
Spindle and three-axis servo motor		Mitsubishi/ Japan
Spindle		Dejiu TAIZ/ Taiwan
Ball screw		Yintai or Shangyin/ Taiwan (C3)
Screw bearing		P4NSK/ Japan
Rail		Yintai or Shangyin/ Taiwan (P)
A.T.C capacity		TAIZ or Deda/ Taiwan
Body casting		High density and high strength resin sand cast iron
Coupling		R+W\NBK / German
Electrical components		Franch
Handwheel pulse		East Test/Internal Security Control / Janpan
Pneumatic components		Taiwan AirTAC/ Japan SMC

Anoher Advantages
Optimized processing conditions paired with an exemplary production environment. Our imported horizontal machining center, vertical machining center, CNC boring machine (with rotating table), and gantry guideway grinding machine guarantee exceptional workpiece accuracy, substantially enhance assembly precision, and ensure enduring accuracy for unrivaled performance.
State-of-the-Art Detection Methods Employing laser technology for positioning accuracy tests and optimal corrections, we adhere to the stringent German VDI3411 inspection standards (conducted five times each) to ensure unparalleled precision.
Each machine tool undergoes a rigorous processing side test before leaving our facility, guaranteeing it meets actual processing demands and the stringent accuracy requirements dictated by the industry.

Product sample
• Our CNC machine center seamlessly integrates milling, drilling, and tapping functionalities for unmatched versatility. • Expert CNC machining accommodates various metal profiles, including aluminum, steel, copper, and non-metal materials, offering unmatched flexibility and precision. • Widely utilized in the dynamic industries of 3C electronics, rail transportation, aerospace, liner module guide rail, and more for its unparalleled performance and adaptability.d etc.
Packaging & Shipping
•Ensure Highly Protective Measures
•Guarantee Structural Stability
•Commitment to Environmentally Friendly and Recyclable Practices
FAQ
1.What's the Payment Terms?
A: T/T, 40% initial payment when order, 60% balance payment before shipment.
2.What is your trade terms?
A:FOB CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machinewe can ready the machine within 30days. if some special machines will be some longer.You can place order accordingto delivery time and ship time we will give you the answer accordingly.
4. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.
5. What is the package of the machines?
A:The machines standard will be packed in wood case.
6:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
