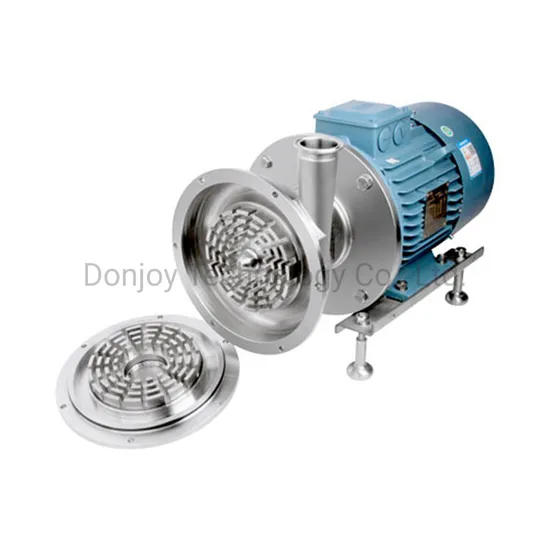

3A Emulsifying Homogeneous Stainless Steel Pump with Hopper
| US$1,750.00-7,750.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JZ1
Application Area
Food
Certification
3A, FDA
Condition
New
Main Material
Stainless Steel
Stirring Type
Spiral
Working
Shear Mixer
Motor
ABB
Temperature
-20~140degree
Max. Flow
40t/H
Max. Power
45kw
Connection Way
Threaded, Clamped, Flanged etc.
Motor Cover
Included
Material
SS316L
Mixer Type
Homogenizer
Layout Type
Horizontal
Operating type
Continuous Operating
Warranty
12 Months
Transport Package
Plywood Case
Specification
JZ1-130~240
Trademark
DONJOY & OEM
Origin
Wenzhou, China
HS Code
8413810090
Production Capacity
30, 000 Sets/Year
Product Description
3A Emulsifying Homogeneous Stainless Steel Pump With HopperAdvantage
High efficiency, dispersing, cutting, refining, smashing, emulsifying, mixing, homogenizing, high cleanliness
Specification
| Item Name: | Single stage Homogeneous Emulsifying Pump |
| Material: | SS316L/1.4404 |
| Seal Material: | EPDM (Standard, FDA approval), or FPM (Viton) |
| Max. Flow: | 40 m3/h |
| Max. Power: | 45KW |
| Media refinement: | ≤ 60 GRIT (≈300 μm) |
| Mechanical seal: | SIC/C/EPDM(Standard) |
| Temperature: | -20~140 degree centigrade |
| Surface treatment: | ≤RA 0.8μm, ≤RA 0.6μm, ≤RA 0.4μm |
| Mechanical seal: | Single mechanical seal & double mechanical seal |
| Motor: | ABB/domestic |
| Motor Frequency: | 50HZ, 60HZ |
| Available connection: | Clamped, Threaded, Flanged, Aseptic flanged |
| Available standard: | DIN, SMS, 3A, RJT, ISO, IDF |
| Operated: | By electic motor |
| Low discharge : | Diaphragm valve/ball valve/butterfly valve |
| Certification: | 3-A-02-11(N.O.1579); MD/06/42-EC(N.O.70521616101-00); FDA 177.2600; USP CLASS-II; EG/VO1935/2004; |
| Application range: | Food, beverage, pharmacy, health protection, fine chemistry, coating, pesticide, daily chemical and papermaking etc. |
| Packaging Details: | By plywood case |
