3 Axes Machining Center CNC Milling High Speed Vmc855 Graphite Milling Machine Tools Cutting Machine Tools
Basic Info.
Model NO.
VMC855
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Name1
CNC Machining Center
Name2
Vertical Machining Center
Name3
CNC Vertical Machining Center
Name4
CNC Precision Machining Center
Name 5
CNC Economic Machining Center
Name 6
Four Axis Machine Center
Name7
Four Axis Milling Machine
Name 7
Five Axis Machine
Name 8
Five Axis Machining Center
Transport Package
Good Wooden Case
Specification
2800x2500x2700
Trademark
AJMTG
Origin
China
HS Code
8457101000
Production Capacity
1200 Sets Per Year
Packaging & Delivery
Package Size
4300.00cm * 2350.00cm * 32.00cm
Package Gross Weight
7500.000kg
Product Description

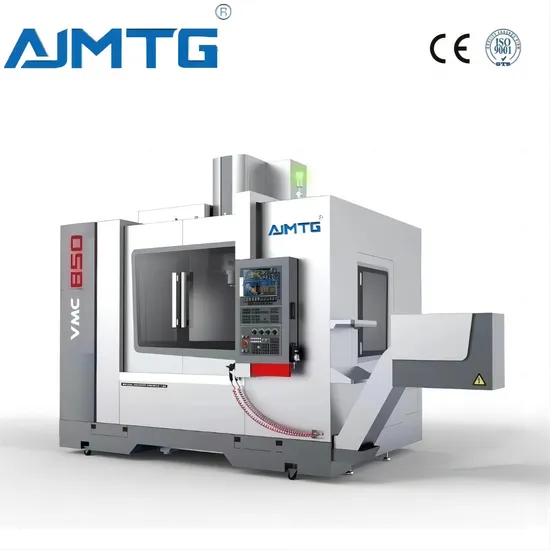

Hot sale VMC850A machining center 4 axis with Japan technology Japan technology leading the market
Best quality configuration and pursue best leading quality Top-level machining equipemnts to produce leading quality accuracy parts used in our machine tools. We are ready to establish a long business relationship with your esteemed company as your most reliable supplier, partner and a friend. Warmly welcome your inquires to us from home and abroad! High quality resin sand Taiwan spindle Taiwan ball screw and locking nut Taiwan pressure cylinder Japanese NSK bearing germany R+W coupling Automatic lubrication system Chip conveyor at optional Application: This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping,boring ,etc
Specifications Machining range X axis travel 800mm Y axis travel 500mm Z axis travel 500mm Spindle nose to worktable 150-650mm Spindle to column guide 550mm Worktable Worktable size 1000x500mm T slot 18X5X90mm Weight load 500kgs Spindle specification Spindle 8000rpm belt drive Japan make Spindle motor 7.5kw Spindle taper BT40(Ø140) Feed system G00 fast feed 48/48/36m/min G01 cutting feed 1-10000mm/min Servo motor 2*2*3kw Tool system Capacity 24 tools arm type Taiwan make
X-axis travel 800 mm
Y-axis travel 500 mm
Z-axis travel 500 mm
Power 7.5 kW
Spindle speed 8,000 RPM
Tool magazine capacity 24
Table width (W) 500 mm
Table length (L) 1,000 mm
Spindle taper BT40
Number of axes 4
Control system CNC (any brand)
Well-sold Vmc650 Vmc850 Vmc1270 Vmc1060 3/4/5axis Horizontal Metal Cutting Mini Vertical Driling CNC Milling Machine CNC Machining Center VMC
Specifications :
| Machining range | X axis travel | 800mm |
| Y axis travel | 500mm | |
| Z axis travel | 500mm | |
| Spindle nose to worktable | 150-650mm | |
| Spindle to column guide | 550mm | |
| Worktable | Worktable size | 1000x500mm |
| T slot | 18X5X90mm | |
| Weight load | 500kgs | |
| Spindle specification | Spindle | 8000rpm belt drive Japan make |
| Spindle motor | 7.5kw | |
| Spindle taper | BT40(Ø140) | |
| Feed system | G00 fast feed | 48/48/36m/min |
| G01 cutting feed | 1-10000mm/min | |
| Servo motor | 2*2*3kw | |
| Tool system | Capacity | 24 tools arm type Taiwan make |
| Main parts | Make | |
| Ball screw | Taiwan C3 grade diameter 40mm, pitch 12/16mm | |
| Linear guide | Taiwan HIWIN or Germany 35mm pin roller type | |
| Spindle | Taiwan diameter 140mm , 8000 rpm | |
| Tool magazine | Taiwan BT40-24 tools arm type | |
| Bearing for 3 axis | Germany or Japan Nachi, Screw Angle Support Bearing 30X62 | |
