Automatic Single Double Coated Disposable Paper Bowl Making Forming Machinery

Product Description

LIFENG NEW TYPE PAPER SALAD BOWL MACHINE!!
A. PRODUCT DESCRIPTION

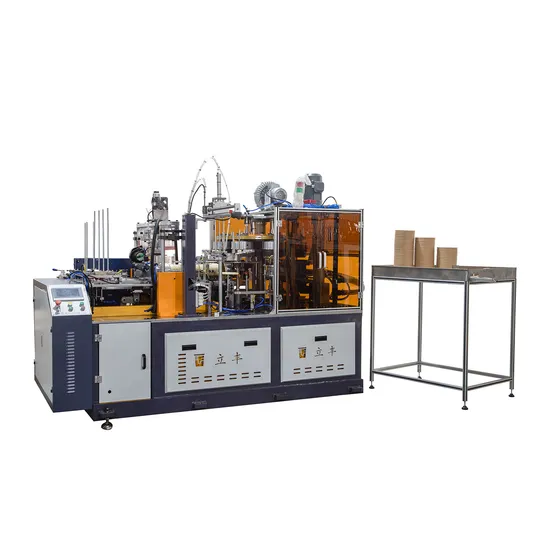

DW-50 Full automatic salad bowl forming machine is a machine that developed on the technique of Korea machine. It has the function of automatic paper feeding, preheating, sealing, oil injection, bottom cutting, heating, knurling, curling, and so on. It can alarm via sensor checking, counting and collecting itself. DW-50 paper bowl machine is an equipment both for single and double PE coated paper bowl, making soup bowls and noodles bowl etc.
B. CHARACTERISTIC(middle speed paper bowl machine)

Model	DW-50
Paper bowl Size	bottom diameter 110-165mm top diameter 140- 185mm height 40-85mm
Raw Material	One-side or two-side PE coated paper(Singe PE or Double PE coated paper)
Speed	45-50pcs/min
Suitable paper weight	170-350gsm
Voltage supply	380v50hz 3-phase *If user's voltage supply is different, please inform us in advance.
Working Air Source	Air pressure 0.6-0.8mpa 0.4m3/min User should buy Air Compressor
General power	16kw
Net weight	3500kgs
Measurement (mm)	2200*1200*1800
Cup Side Sealing	EVERGREEN Ultrasonic
We can customize machine and mold according to customer's requirement.

C. MACHINE ADVANTAGES
1. The core components adopt open cam design, with gear motor
2. Machine has full automatic lubrication by oil pump and filtration, more convenient for maintenance.
3. Separated curling from knurling and heaters makes less noise on machine than old design, more stability and long lifetime.
4. Control panel use touch screen, a clearer vision, the whole electrical appliances adopt imported configuration, have high generality and good performance, and facilitate equipment maintenance.
5. The machine is controlled by PLC, and has a encoder to control the working of ultrasonic, sensors, solenoid valve and so on, to make the running of each process more accurately.
6. Directly bottom paper feeding system can reduce the wastage of bottom paper .
7. New-type stable collecting system solves the collecting problem of the paper bowl totally, reduce the packing labor and improve the working efficiency.
D. PACKAGE DETAILS
our paper cup machine all package with strong woodencase,and also will send you a tool box,english manual and electric diagram with machine,also will send you a CD to teach you how to operate machine.
E. LIFENG Company and Certification
WE ARE THE MANUFATURER , NOT THE TRADING COMPANY.
F. Our Services
Guarantee and After- sale Service
1. One year guarantee for whole machine except of the easy-wear part.
2. 24 hours technical support by email/ wahtsapp /wechat
3. Use- friendly English software, user manual and detailed Video /CD
G. samples show

FAQ
Q1: if the machine break down overseas, what is the effecient to solve the problem?
A1: Basially , the machine is easy to operate, the engineer can teach the client how to fix the machine by video or email. And the engineer are available to overseas.
Q2: The payment, MOQ, producing period and delivery time? A2: T/T 30 % as the deposit, and the balance payment should be paid before delivery.
MOQ is 1 set.
The producing time is 25 days after deposit.
The delivery time is within 5 days after balance payment.
Q3: How to get my company?
A3: The address: 7# building , Yongding Road, Songjiadai Industril Zone, Feiyun Town , Ruian city.
If you want to visit my company, please send your ticket information to my skype or email. I will meet your in the Wenzhou Longwan Airport.
