Product Description

Product Description
Product Description

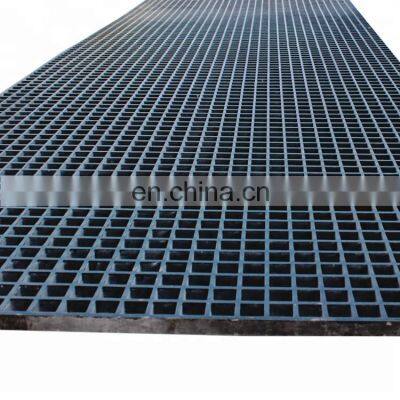

lightweight frp grating australia Platforms Decking Grating FRP WalkwaysFRP Molded Grating is a structural panel which uses high-strength E-Glass roving as reinforcing material, thermosetting resin as matrix and then casted and formed in a special metal mold.

Specification	Bar Size(Top/Below)	Panel Size (mm)
Mesh size 38mm*38mm, 25mm thickness	6.5/5.0mm	1220x3660,1226x4010,1524x4000,1530x4010,1997x3012
Mesh size 38mm*38mm, 30mm thickness	6.5/5.0mm	1220x3660,1220x4010,1524x4010,921x3055
Mesh size 38mm*38mm, 38mm thickness	7.0/5.0mm	1220x3660,1220x4010,2100x4240,998x4010,1220x2440
Mesh size 38mm*38mm, 50mm thickness	9.5/7.5mm	1220x4010,1220x3666,1230x4010,1220x2440,921x3055
Mesh size 38mm*38mm, 60mm thickness	10.5/8.5mm	1230x4010
Mesh size 38mm*38mm, 70mm thickness	11.0/9.0mm	1230x4010
Mesh size 40mm*40mm, 25mm thickness	6.5/5.0mm	1007x3007,1007x4007,1247x4047,1527x4047
Mesh size 40mm*40mm, 38mm thickness	7.0/5.0mm	1527x4047,1247x4047,1007x3007,1007x4047
Mesh size 40mm*40mm, 38mm thickness	7.0/5.0mm	1527x4047,1007x3007,1007x4047,1247x4047
Mesh size 50mm*50mm, 15mm thickness	6.0/5.0mm	1228x4020,1220x3660,1220x2440
Mesh size 50mm*50mm, 50mm thickness	8.0/6.0mm	1524x4000,1220x3660,1220x2440,1220x4000
13x13/40x40 micro mesh38mm thickness	6.5/4.5/5.0mm	1527x4047,1247x4047,1007x3007,1007x4047
19x19/38x38 mini mesh38mm thickness	6.5/5.0mm	1220x3660,1220x2440,921x3055,1220x4000,1226x4010
25x25/50x50 mini mesh50mm thickness	8.0/6.0mm	1532x4020

Our Lanyu company is very professional FRP grating manufacturer in China.The process for the FRP grating production is as following:
Application
frp plastic grass lawn grid industrial garage smooth surface frp molded grating
Product Application:Fiberglass is light weight,height strength,Non-Conductive,Corrosion Resistant,Slip Resistant and No Welding required.Widely used by:Chemical Plants ------ Having excellent resistant to corrosion, FRP grating is extensively used in Chemical Plants.It is mainly used operation platform,walkways,oil storage tanks,power distribution boards and rooms.etc.Manufacture ------ FRP grating can be used as Walkways,Fencing,Racks and shelving,Wash racks,Scaffolding,Drainage pit covers Stairs,etc.Transportaion ------ FRP grating can be used as access ways,Platforms(static resistant),docks,trenches,tanker,Stairs,Freight car flooring fill areas as well as walking surfaces and in work areas,etc.Water and Sewage Water ------ FRP grating are environmentally safe and can be used extensively as filter media support,access walkways,trench Scaffolding,manhole cover,walkovers Scaffolding and Fencing,Stairs,etc.
Packing&Shipping
Welcome your inquiry about FRP grating anytime.Cathy is always here!
