Pxb200d High Speed HDPE PP Plastic Automatic 5L 10L 15L Canister Jerrycan Bottle Extrusion Servo Motor Making Blowing Moulding Blow Molding Machine with CE

Product Description

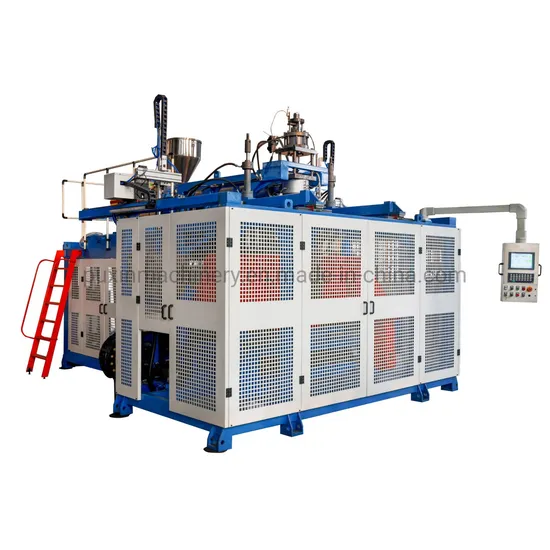

PXB200D Blow Molding Machine
Center continuous die head;
Strong center clamping, with crank arm system ("C" type) to provide strong clamping force;
The main hydraulic system provide precise pressure of proportion, flow control, quick actions with long working life.
Product Details:
Product Parameters:

Model	Unit	PXB200D	Remarks: Customization is available according to your requirements.
Max.Capacity Volume	L	15
Raw Material	Plastic	PP,PE,etc
Average Consumption	KW	40
Diemension	M	5*3.8*3.6
Weight	T	15
Clamping Force	KN	200
Platen Size	MM	480*560
Opening Stroke	MM	240-620
HDPE extrusion capacity	KG/H	125
Screw ratio	L/D	25

Company Profile

Zhangjiagang Puxin Machinery Co. Ltd is a leading manufacturer of extrusion blow moulding machines.
Since entering the field in 2002, we steadily grew technical research and development with over thousands of blow molding projects in PE, PP, PVC, PETG, PS, EVA, EVOH, PVDC, ABS, TPE, TPU from 5ml to 3000L.

We have been pursuing highly reliable solutions among chemical containers, automobile parts, commodity package, logistics, food package, toys, fitness equipment and even more industries.

With patented techlogies, we have provided not only machines, but also customised service to global partners in North America, Central and South Ameria, Southeast Asia, the Middle East, Africa, Europe.

Its always believed that "Your satisfaction is our pleasure." We will continue providing top-quality machines with before & after service to every client, and expand our contribution to society.

Transport Packaging
Machines will be packaged on strong wooden bottom with plastic film covered as standard.
Machines will be loaded carefully into container, all parts will be safely delivered.
Our Advantages
1)R&D experience over 20 years.
2)Global agents and engineers are available.

3)Quality guaranteed before shipment.

4)Machine wrranty with life-long technical support will be provided.
Cooperative Partners

FAQ
Q: Are you trading company or real manufacturer?
A: We are one of leading manufactuer with experience over 20 years. Our factory is located in Zhangjiagang City, Jiangsu Province (2-hour driving distance from Shanghai).
Q: What do you manufacture?
A: We manufacture blow molding machines over 30 different models, we also offer other auxiliary equipment for clients from our reliable suppliers with reasonable price.
Q:How is your quality of machines?
A: Quality control is one of our biggest focus. Before arraging shipment of a machine, we have full test for machines and molds to make sure everything can meet real production condition. We have a quality control group to process our own "10 step" inspection standard for every machine.
Q: Do you provide any wrranty for machines?
A: We provide with 12-month official wrranty and life-long technical support.
Q: Can you send engineers to foreign countries?
A: Yes, we provide global enigneers by clients' need.
Q: Can you put different language system for a machine?
A: Yes, we can put any language by clients' requirement.
Q: How do you help clients with their blow molding project?
A: 1) We collect basic information for the project including information about products and output goals.
2)We provide analysis for consumption calculation.
3)We provide customized machines with suggestion.
4)We make CAD drawings for workshop layout by clients' need.
5)We provide distance training or global engineers visiting by clients' need.
