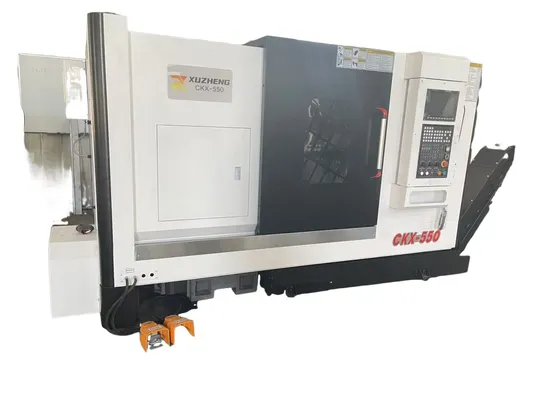

Large Caliber Cutting CNC Lathe Disc and Shaft Machining Can Be Customized

Large Caliber Cutting CNC Lathe Disc and Shaft Machining Can Be Customized

US$32,000.00-60,000.00 1 Piece (MOQ)

Basic Info.

Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
Used
Color
Customized
Delivery Time
30 Working Days
Processing Scope
Chuck/Bearing
Package
Wooden Box
Text
Video and Remote Instruction
Transport Package
Fine
Specification
5~14T
Trademark
XUZHENG
Origin
China
HS Code
8504330000
Production Capacity
1000pieces/Year

Product Description

This machine is suitable for processing various small and medium-sized shaft and plate workpieces, as well as turning various threads, arcs, cones, and rotating inner and outer surfaces. This machine is widely used in bathroom, expensive, electrical appliances, instruments and meters, automobiles, motorcycles, bearings, etc.
name unit HSL550A-C HSL550B-C HSL750A-C HSL750B-C HSL1050A-C HSL1050B-C
Machining range Maximum swing diameter of lathe mm Ф660 Ф1000 Ф1350
Maximum cutting diameter of workpiece mm Ф550 Ф750 Ф1050
Maximum slewing dlameter of bed saddle mm Ф500 Ф820 Ф1100
Maximum machining length mm 1350/1850/2850/3850/4850 1850/2850/3850/4850/5850 1850/2850/3850/4850/5850
Sliding saddle Torque of supporting plate motor in X axis mm 15 15+1/3 reducer 22=1/3 reducer
Torque of large pallet motor in Z axis Nm 15+1/3 reducer 15+1/3 reducer 22=1/3 reducer
X-axis stroke Nm 315 425 625
Z-axis stroke mm 1500/2000/3000/4000/5000 2000/3000/4000/5000/6000 2000/3000/4000/5000/6000
Spihdle Principal spindle end form A2-8 A2-11 A2-11 A2-15 A2-15 A2-20
Diameter of spindle through hole mm Ф87 Ф132 Ф132 Ф220 Ф220 Ф320
Maximum output torque of spindle Nm 300 400 800 900 1200 1300
Spindle speed rpm 0-2000 0-1000 0-1000 0-500 0-500 0-300
Hollow hydraulic chuck 12-in 15-in 15-in 630MM manual four claws 630MM manual four claws 800MM manual four claws
Bar through hole mm Ф75 Ф118 Ф118 Ф220 Ф220 Ф330
Servo tailstock Taper of mandrel tapered bore Mohs 5# Mohs 6# Mohs 8#
Mandrel stroke mm 100 100 100
Taper of moving motor inZ1 axis Nm 15+1/3 reducer 15+1/3 reducer 22+1/3 reducer
Moving stroke in Z1 axis mm 1250/1750/2750/3750/4750 1750/2750/3750/4750/5750 1750/2750/3750/4750/5750
Speed Torque of moving motor in Z2 axis Nm 15+1/3 reducer 15+1/3 reducer 22+1/3 reducer
Power tool rest Fast moving speed (X axis) m/min 6 5 4
Fast moving speed (Z axis) m/min 12 10 8
Fast moving speed (Z1 axis) m/min 6 5 4
Fast moving speed (Z2 axis) m/min 6 5 4
Cutting feeding speed mm/min 1-8000 1-8000 1-8000
Machining lathe Refine Degrees Tool rest specification BMT 55 65 75
Maximum torque of the power motor NM 45 68 90
Tool capacity Pcs 12 12 12
Size of turning tool mm 25*25 32*32 40*40
Maximum diameter of boring tool mm Ф40 Ф50 Ф60
Positloning accuracy (X axis) mm 0.01 0.01 0.012
Positloning accuracy (Z axis) mm 0.015/0.017/0.021/0.025/0.029 0.016/0.020/0.024/0.028/0.032 0.016/0.020/0.024/0.028/0.032
Positloning accuracy (Z1 axis) mm 0.015/0.017/0.021/0.025/0.029 0.016/0.020/0.024/0.028/0.032 0.016/0.020/0.024/0.028/0.032
Positloning accuracy (Z2 axis) mm 0.015/0.017/0.021/0.025/0.029 0.016/0.020/0.024/0.028/0.032 0.016/0.020/0.024/0.028/0.032
Repeated positioning accuracy (X axis) mm 0.006 0.006 0.008
Repeated positioning accuracy (Z axis) mm 0.009/0.009/0.012/0.014/0.016 0.010/0.012/0.014/0.016/0.018 0.010/0.012/0.014/0.016/0.018
Repeated positioning accuracy (Z1 axis) mm 0.009/0.009/0.012/0.014/0.016 0.010/0.012/0.014/0.016/0.018 0.010/0.012/0.014/0.016/0.018
Repeated positioning accuracy (Z2 axis) mm 0.009/0.009/0.012/0.014/0.016 0.010/0.012/0.014/0.016/0.018 0.010/0.012/0.014/0.016/0.018
Power capacity kva 22-45 45-80 55-80
Others Two-center bearing T 2 3 6
Net weight of machine tool T 7/8/10/12/14 11/14/17/20/23 16/20/24/28/32

1:How can I choose the most suitable machines ? A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you . 2. What is your trade terms? A : FOB, CFR and CIF all acceptable. 4: What's the MOQ? A: 1 set .(Only some low cost machines will be more than 1 set ) 5: What about your warranty? A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free 6:How do you offer after-sale service? A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
