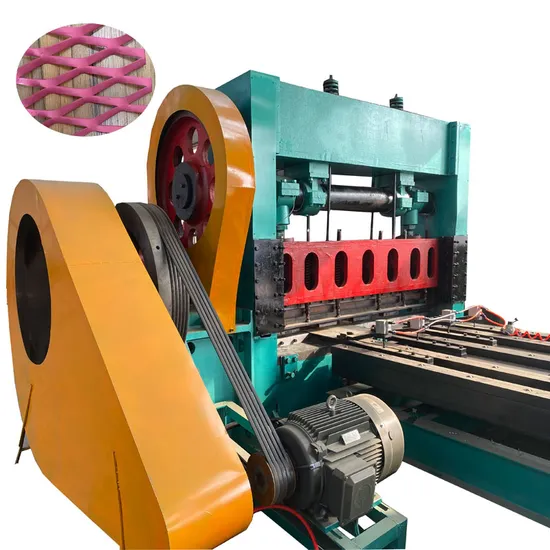

Diamond Expanded Plate Mesh Making Machine

Product Description

Diamond Expanded Plate Mesh Making Machine Product Description

The machine produced by our company is high technology, and high practicability, It can produce steel plate mesh, aluminum plate mesh, titanium plate mesh and some other material mesh.
The machines are used for punching all kinds of expand plate mesh in construction, common hardware, window and door, machine protecting etc.
Feeding mechanism passes the chain link by the main engine directly, the movement accurate is reliable.
The times of feed mechanism punching shear start from 0, it can shear at will scope.
Main parameter:

Type	SH25-6.3	SH25-16	SH25-25	SH25-63	SH25-100
Pounding thickness	≤1.0mm	≤1.2mm	≤1.3mm	≤2.5mm	≤6mm
Pounding width	≤500mm	≤1000mm	≤1250mm	≤2000mm	≤2500mm
Stocks per minute	230/min	160/min	130/min	70/min	40/min
Short Distance	1-10mm	1-20mm	5--30mm	10-100mm	10-120mm
Length Distance	1--20mm	2--30mm	10-50mm	20-200mm	20-250mm
Press plate pressure	63KN	160KN	250KN	630KN	1250KN
power	2.2KW	3KW	4KW	11KW	22KW

Detail pictures:
Finish products
Usage:
Expanded mesh is widely used in national defense, industry, railways and highways fence , shipbuilding, coal, light industrial textiles, building materials, agriculture and sideline industries, aquaculture, gardens, minerals, petrochemicals, home appliances, and also used in integrated ceilings, doors and windows anti-theft, safe passages, Corridor stair baffles, tables, chairs and benches, vents, various cargo-carrying frames, shelves, etc.
FAQ:
Guarantee: one year, during this year, any broken parts caused by the quality, we can offer free,after this year can offer with the lowest cost.
Install and training:offer video and operation manual, if need engineer oversea service, the customer need to pay the round air tickets, hotel, food and also the salary USD100 per engineer one day.
Delivery time: 20days after advance payment
Payment terms: T/T, 30% in advance, and the balance before delivery. also accept LC.
Packing: waterproof material,control box: wooden case
Company profile
1.Anping Shenghua Metal Wire Mesh Machine Factory(Anping County Taojin Wire Mesh Machine Co.,Ltd.) is belong be Shenghua Group, we have engaged in wire mesh machine manufacture over 30 years, our company from only 1500m2 small factory to now 40000 m2.
2.We are produce and sell kinds of wire mesh machine, like chain link fence machine, welding wire mesh machine, expanded plate mesh machine, weaving machine, razor barbed wire machine, perforated mesh machine and so on
Machine Loading picture
Related machine
