Factory Directly High Speed Fast PVC Roller Shutter Door

Factory Directly High Speed Fast PVC Roller Shutter Door

US$1,200.00
1-4 Sets
US$1,000.00
5-9 Sets
US$700.00
10+ Sets

Basic Info.

Model NO.
NTHD
Material
Steel
Type
Rolling
Open Style
Rolling
Opening Type
Power Driven
Special Function
Wind and Insect Resistant
Color
Customized
Certification
ISO9001
Position
Industrial
Surface Finishing
Finished
Application
Electrical, Mechanical, Food, Pharmacy, Chemical
Frame Material
Steel, Stainless Steel
PVC Material
High Strength Polyethylene
Door Rib Material
Aluminum Alloy
Visible Window
Available
Opening/Closing Speed
0.8-1.5m/Sec
Control Box
Digital Tube, Frequency Conversion Control System
Limit Swtich
Multi-Turn Absolute Encoder
Power Supply
220V
Safety Standard
En ISO 12100
Max. Size
5500*6500mm
Max Wind Resistance Rate
Level 6
Visible Window Thickness
1.5mm
Safety Configuration
Infrared, Pressure Airbag, Warning Light
Product Name
High Speed Fast PVC Roller Shutter
Transport Package
Standard Seaworthy Package
Specification
5500*6500mm
Trademark
NEWTON
Origin
China
HS Code
3925200000
Production Capacity
5000 Units Per Month

Product Description

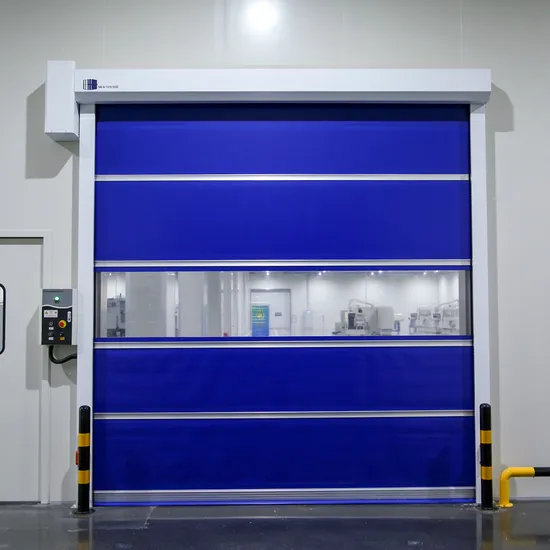

Factory Directly High Speed fast PVC Roller Shutter Door
- Product overview The PVC high speed roller shutters has a high speed partition function. The cold splicing process makes the curtain more smooth and beautiful. The segmented splicing reduces the maintenance cost, reliability, practicality, easy opeartion and low maintenanace costs. This door is the most economical selection for the facility entrance, to prevent the entrance, widely used for the electrical, mechanical, food, pharmacy, chemical, textile, printing, supermarket and the logistics & warehiousing.
- PVC cutainer testing report
- Product parameters
Opening/Closing spped: 0.8m-1.5m/sec Control box: Digital tube, frequency conversion control system Limit switch: Multi-turn absolute encoder Power supply: 220V Safety standard: According to EN ISO 12100 Test life circle: The tested service cycle reaches 800,000 times per year, 500 times per day Wind resistance rating: Wind-resistant ribs are connected in sections for easy replacement; Maximum level 6 Standard size: Maximum 5500 x 6500mm Transparent window: PVC full transparent film, thickness 1.5mm Sealing performance: The U-shaped airbag cloth pocket at the bottom of the curtain can be closely attached to the uneven ground. The double-row brush seal structure of the PVC base is adopted for the double-row brush seal structure on both sides of the door frame to prevent dust and insects. Insulation protection: Ip54 is waterproof and dustproof even when used in harsh environments Safety configuration: standard infrared photoelectric protection, pressure airbag, warning light, anti-collision pillar
- Opening methods Motion sensor Inductionloops Bluetooth Pull-cord switch Remote control Photo eyes Safety light curtain Safeyt edge
- Quick and easy installation
Step 1 Door steel frame installation
Step 2 Door curtain installation
Step 3 Mount the motor
Step 4 Mount the door cover
Step 5 Infrared detection or other safety device installation
Step 6 Speed and stroke debug

- CE Certificate (UDEM)
- Our Professionalism Our team works in this industry with many years' experience, from the design, manufacture, package, delivery, installation and commissioning, maintenance after-sale service, we provide all-sided supports for our customers at every link, particularly, our technicans can design the suitable door based on the customers' practical demand to save the cost, and provide our customers the effective training to help them operate and maintain the doors properly.
- Package Qualified plywood for LCL; and Qualified carton or pallet for FLC, however, we are able to provide the package according to your specified requirements.
- Service scope 1. Factory and production online inspection
2. Pre-shipment inspection
3. One year warranty: As long as the goods is received, we will provide one year warranty to supply the accessories free of charge
4. Installation video support: During the installation, we will provide the videos or other documents to help you install the doors successfully, if necessary, we will provide the online guidance.
5. Timely response: Our sales will provide the quick response to help you solve the problem timely.
- About us WUXI NEWTON TECHNOLOGY CO.,LTD is the manufacturer in the field of all kinds of automatic doors in China, includes automatic folding doors, automatic industrial sectional doors, high speed roll-up doors, garage door, door hardware kit, with a well established reputation for outstanding performance.
Recognized worldwide for its proprieraty design and manufacturing know how. NEWTON has been involved in this industry since 2000. We got here on the basis of providing optimal solutions and strong supports to clients who buy our products.
We understand what our customers need to stay competitive:
Optimal design for different projects At an affordable rate In the pastest possible Meeting these goals requires precision in everything we do, and all stages are controlled strictly by our skilled operators and technicians.
We are proud to offer our high quality automatic doors to the world market. But more importantly, we are pround we've helped our customers meet their demands, to grow their businesses.
