Wood Log Debarker for Veneer Plywood Peeling Machine

Product Description

Working principle of wood debarker: (doouble rotors) 1.Peeling machine adopts an open hopper, which can be supplied from one head to the other, and the other is out of material. It overcomes the shortcoming of the existing roller type peeling machine. 2.Because of the impact of the teeth on the wood section of the wood peeling machine, not only is the wood segment circulated in the shell, and it revolves around itself, so the peeling machine has a high efficiency, and the eucalyptus and poplar trees have a better peeling effect, and the net degree is more than 97% 3.The wood peeling machine has a strong adaptability to wood. It can peel off the length and shape of different tree species, diameter, and the shape of the wood removing machine. The concave part of the bend wood section can also be in good contact with the peeling teeth because of the rotary motion and irregular beating of the wood section. Therefore, the stripping rate of bending logs is much higher than that of other drum types. 4.The wood peeling machine is fixed because of the large machine shell, so the energy consumption is small, the failure rate is low, the maintenance work is small, the vibration and noise are much lower than that of the roller peeling machine. The wood removing machine can be produced by the machine landing machine, even without the installation of the base, it is convenient to use. Feature of Wood peeling/debarker: 1.Using four point tool, easy to use, low cost. 2.Voltage controlled by the hydraulic cutter, advanced structure, reliable performance. 3.Continuously variable feeding mechanism of frozen material, bent wood, eucalyptus, oak, elm and other trees with good hard peeling peeling effect. 4.High cleanliness, high productivity, and little damage to wood
Parameters:

Type	HX-S700	HX-S800	HX-S900
Wood diameter (mm)	50-300	50-400	200-600
Wood length (m)	0.5-5.5	0.5-5.5	0.5-5.5
Capacity (TH)	6-8	10-12	15-25
Debarking rate (%)	Fresh log >95% Dry log > 90%	Fresh log >95% Dry log > 90%	Fresh log >95% Dry log > 90%
Roller diameter (mm)	275	377	530
Roller rotational speed	230rpm	200rpm	200rpm
Roller length (mm)	5000-6000	5000-6000	5000-6000
Power (kw)	7.5 x 2	11 x 2	15 x 2

Note:length,hight,motor,,,all can customized based on requirement

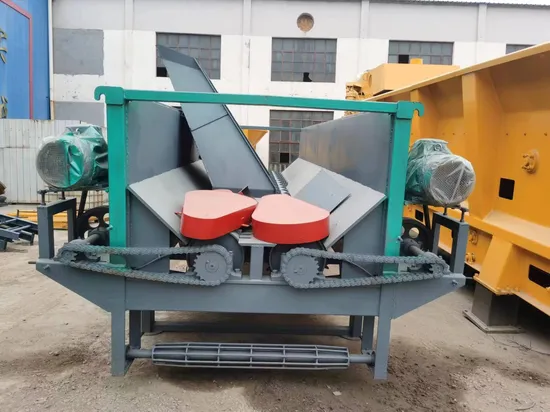

Picture:
Normally process:(for making wood chips for making paper pulp )
Manufacture team
Certificate
Clients visiting
