Color Screen Hi-Target Hts-520 Total Station

Product Description

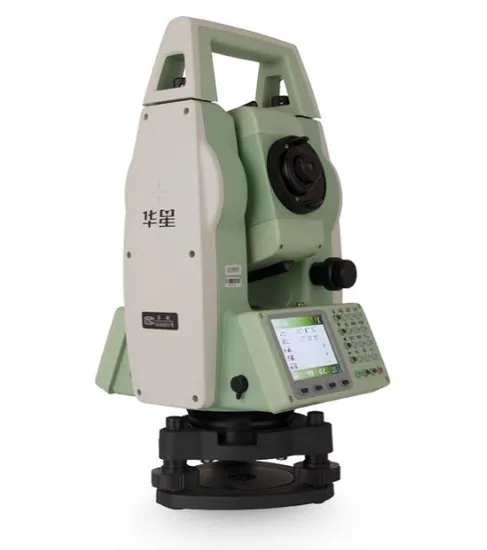

Product Description Color screen Prism free ranging 800m Hi-Target HTS-520 Total Station
High brightness true color display screen:
* 2.8 inch 240 * 320 image high brightness true color display screen
* Level 4 lighting brightness can be adjusted to achieve true color flat magic;
* Can display clearer image effects and adapt to different working environments.
Product Parameters

Hi-target HTS-520L8 Total Station
Angle Measurement
Measurement Method:	Absolute Encoding
Minimum Readout:	1″/5″/10″(0.3mgon/1.5mgon/3mgon)optional
Accuracy	2"
Distance Measurement (with Reflector)
Single Prism	3000m (9,842ft.) under good condition3
Three Prisms	6000m (19,685ft.) under good condition3
Reflective Sheet	800m (2,624 ft.)
Accuracy	2mm +2ppm
Measuring Time (Fine/Quick/Tracking)	1s/ 0.5s
Distance Measurement (Reflectorless)
Reflectorless Range	800M
Single Prism	>7500m (24606ft.)
Accuracy	3mm+2ppm
Measuring Time	1.5s
Telescope
Magnification	30X
Field of View	1°30′ (2.7m at 100m)
Minimum Focusing Distance	1.5m
Reticle	Illuminated
Compensator
System	Dual-axis (optional)
Working Range	±3′
Setting Accuracy	1″
Bluetooth
Interface	Standard RS232, SD card4, USB pen drive
Internal Data Memory	Approx. 20,000 Points
Data Format	ASCII
Operation
Operation system	English Real-time Operating System
Display	2.8-inch High resolution backlight black and white display with contrast adjustment/ Graphics: 240 x 320 pixels / Character: 6 lines x 25 characters
Keyboard	2 sides Alphanumeric backlit crystal keyboard
Laser Plummet
Type	Laser point, 4 brightness levels adjustment / Optical plummet (optional)
Centering Accuracy	1 mm at 1.5m instrument height
Power Supply
Battery Type	Rechargeable Li-ion battery
Voltage/Capacity	ZBA-400: 7.4V (DC) / 3000mAh
Operating Time With ZBA-400	Optimal 16 hours5 (Continuous angle measurement every 30 seconds) / 10 hours (typical)
Measuring Times	Approx. 12000 times
Environmental
Operating Temperature	-20ºC ~+50ºC( -4ºF to +122ºF)
Storage Temperature	-40ºC ~+70ºC(-40ºF to +158ºF)
Dust&Water Proof (IEC60529 Standard)/Humidity	IP55

Packing & Delivery Packaging Details Hitarget HTS-520L8Packaging Details:1 cartonsSize:45cm*55cm*38cm; 11KGLead Time :5 working days after payment confirmed PortShnaghia Port/shenzhen port Example:

Quantity(Pieces)	1-3	4-50	>50
Lead Time	5	8	To be negotiated

About payment Generally, we accept Online payment, Trade Assurance, Irrevocable LC at sight, Advance T/T, Escrow and West union.If you prefer other payment terms, please let us know.

Packaging & Shipping
Company Profile
R Total Stat About the company Nanjing Haoce Surveying Instrument Co.Ltd. We began survey instrument business since 2010. As the agent of CHC and South and Hi-Target in JiangSu province for survey instruments, we can give you the rock-bottom price and best service. We supply you with Gnss RTK, auto level, theodolite, total station, 3D scanner, rotary laser, tripod, prism, prism pole, prism group and so on. At the basis of Foif total station, we can accept OEM. Our warranty policy is as followed. For instruments(total station, GNSS, auto level), we offer one year warranty, for accessories(prism, pole, tripod, leveling staff), we offer six months warranty from the day you get the products. For product within the warranty period, please send us photos to show the problem. And then we will decide to send you parts or you send the instrument back to us to repair. Please make sure to contact us first instead of sending the damaged parts direct to us. For problem out of the warranty period or warranty lialility, we will judge the problem and quote for you.
Our Services 1.Any inquiries will be replied within 12 hours.2.All our products have 3 year warranty, And we sure the products will be free from maintenance within warranty period.3.All products will have been strictly quality checked in factory before sending out.4.we can providing instrument technology training.5.If you like a product, please feel free to contact me by adding my WhatsApp:+86 18860957452


ion Dual-axis reflectorless total station, provides an efficient measurement experience
