Rising Stem Cast Steel Full Bore Double Flanged OS&Y Wedge API 600 Gate Valve (China Manufacturer price)

Product Description

Product Description Introduction

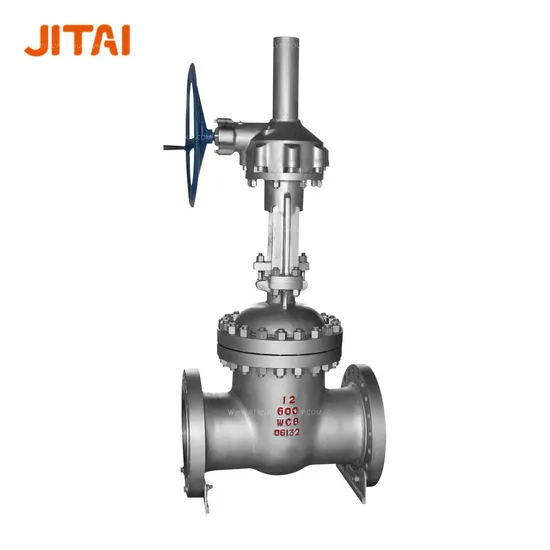

OS&Y wedge type gate valve is a gate for opening and closing parts. The movement direction of the gate is perpendicular to the direction of the fluid. The gate valve can only be fully opened and fully closed, and cannot be adjusted or throttled
Features
1. Small flow resistance. The medium channel inside the valve body is straight, the medium flows in a straight line, and the flow resistance is small.
2. Less effort when opening and closing. It is compared with the globe valve, because whether it is open or closed, the direction of movement of the gate is perpendicular to the direction of medium flow.
3. Large height and long opening and closing time. The opening and closing stroke of the gate is relatively large, and the lifting is carried out by the screw.
4. Water hammer is not easy to produce. The reason is the long closing time.
5. The medium can flow in any direction on both sides, easy to install. Both sides of the gate valve channel are symmetrical.
6. The structural length (the distance between the two connecting end faces of the shell) is small.
7. Simple shape, short structure length, good manufacturing technology and wide application range.
8. Compact structure, good valve rigidity, smooth passage, small flow resistance, stainless steel and hard alloy sealing surface, long service life, PTFE packing, reliable sealing, light and flexible operation.

Scope

Nominal size	2"~48"(DN50~DN1200)
Nominal pressure	Class150~2500(PN10~PN420)
Standard:	API 600, API 603, ASME B16.34, ASME B16.25
Body material	Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel
End connection	RF, BW, RTJ,
Operation	Manual, Pneumatic, Electric, Hydraulic

Product Parameters
Company Profile
Jitai Valve Group is a genuine valve manufacturer. 7000-sqm factory 100 employees 5+ senior engineers 30+ design patents 2 million sets of valves delivered 20 million USD annual revenue Since 1988, we have been expert in manufacturing a wide scope of industrial valves including: Gate valves Globe valves Check valves Ball valves Butterfly valves API valves Steam valves High pressure valves High temperature valves Power Plant valves Our Advantages Heavy-duty valve expert with proven expertise in harsh environment; Stringent quality control and traceable reports to provide zero-defect products; Rugged and durable configuration according to API, ASME, BS, JIS, EN standards; All kinds of UG, PRO/E, Solidworks software simulations ensure the efficiency and robustness for tailored components; Complete BV cerified report can be viewed and downloaded on our page About us FAQ
1.Q:Are you are a trading company or manufacturer?
A:We are a manufacturer with 7000-sqm factory and 100 employees.
2.Q: Can you provide the assembly drawing for confirmation ?
A: Yes, we can give the relavant drawing within 24 hours.
3.Q: Can you do non destructive test for valve components ?
A: Yes, we can perform radiographic testing, penetration testing, ultrasonic testing, magnetic particle testing, etc
4.Q: How can I vist you when I am in China?
A: We are near the Wenzhou Airport. If you take a plane, it takes 2 hours to reach our factory from Shanghai, 2 hours from Guangzhou, 3 hours from Beijing.
5.Q: Can we take sample for quality check?
A: Definitely. You can advise the model number and we will prepare the sample within 7 days.
6.Q: How can I become your distributor or agent?
A: You can send your company profile and reference list to our sales manager.
7.Q: Can you help with site maintenance and commissioning?
A: Yes, we are glad to offer our assistance whenever you need it. We can send our after sales team to address the issue within 14 days
