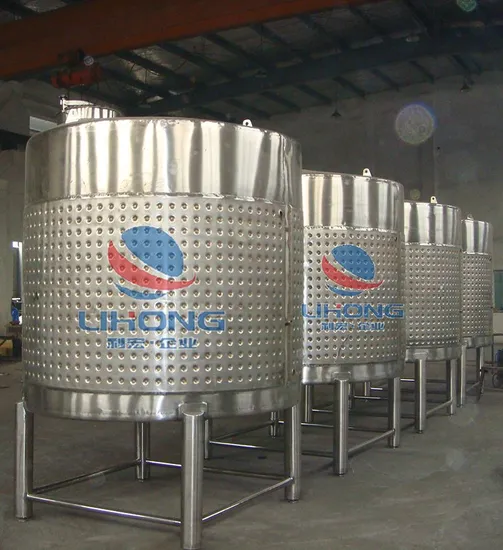

Stainless Steel Conical Wine Storage Pot with Side Manhole

Product Description

Conical Wine Storage Pot with Side Manhole
Application:
Winery and brewery storage and fermentation
Configure:
Inner tank body: SUS304, mirror polished
Outer cover: SUS304, satin finish
Dimple jacket: SUS304
Feet: Adjustable(which is great for uneven ground surface), 3pcs or 4pcs
Fittings: Top manhole, side manhole, spray cleaning ball, thermometer, air vent, sampling valve, outlet valve, glass level gauge, stainless steel ladder(if need it), etc
Parameters:
Capacity: 500L~20,000L
With dimple pad cooling jacket, cooling exchanger areas are available in different design
With sloping bottom, easy to discharge the product out.
With top manway and side manway
Racking port with butterfly valve is optional
Bottom outlet is with tri-clover butterfly valve
The machine is with glass level gauge
The machine is with tri-clover sampling valve
CIP cleaning spray ball and thermometer
Material:
All materials adopt stainless steel SUS304 or SUS316L. Internal surface is polished to Ra≤0.4μm and external surface has got surface polishing treatment.
The tank uses arc welding, which ends in no dead angle.
Warranty: One year after receiving equipment, offer life long after sale service.
Installation and commissioning: We can send professional engineer to install and commission the equipment.
Maintenance services: any malfunction happened, once you enquiry us, we will reply you within 24 hours except the special reasons.
Inspection: the third party inspection company or yourself to inspect the products before shipment.
Documentation: User manual, Maintenance manual, Equipment test report, etc.
Remark: The equipment is customized, if any your own requirements, please send them to us.

Volume(L)	Inlet & Outlet(mm)
500	38
1000	51
1500	51
2000	51
3000	51
4000	51
5000	51
6000	51
7000	51
8000	51
9000	51
10000	51
12000	51
15000	51
20000	51

FAQ:
1. Are you a factory or trading company?
We are a factory
2. How long is the warranty period?
One year
3. What's the main market of your company?
We have customers all over the world
4.What's your delivery time?
Normally it is around 30 days, the exact time depends on product type and quantity.
5. What's the payment terms?
TT, LC, etc
6. Can we visit your factory?
Welcome to visit our factory!
7. Where is your factory? How can we go there?
Our factory locates at Wenzhou city, Zhejiang Province, who is very near the airport, you can take the plane to Wenzhou airport and we will go to airport to pick up you.
