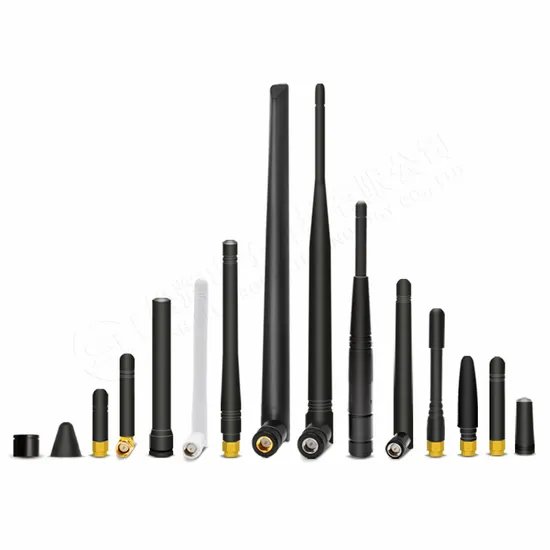

High Gain GPS GSM Bt WiFi TV Laptop CDMA 2.4G 5.8g Wi-Fi Antenna SMA SMB Connector Coaxial Antenna

Product Description

Custom Made GPS GSM BT/WiFi DVB-T TV Laptop CDMA 2.4G 5G Coaxial Cable Antenna2G: CDMA450, GSM850/900/1800/1900MHz, CDMA800/1900MHz3G: WCDMA4G: FDD-LTE, TD-LTE,450MHz,3400-3800MHzWiFi: 2.4GHz, 5.8GHzBluetooth: 2.4GHzRFID/UHF/NFC: 13.56MHz, 433MHz, 750MHz, 915MHzGPS/BDS/GLONASS/GALILEO: 1559MHz-1615MHz An antenna is an array of conductors (elements), electrically connected to the receiver or transmitter. Antennas can be designed to transmit and receive radio waves in all horizontal directions equally (omnidirectional antennas), or preferentially in a particular direction (directional, or high-gain, or "beam" antennas). An antenna may include components not connected to the transmitter, parabolic reflectors, horns, or parasitic elements, which serve to direct the radio waves into a beam or other desired radiation pattern. Strong directivity and good efficiency when transmitting are hard to achieve with antennas with dimensions that are much smaller than a half wavelength.
Used of GPS GSM BT/WiFi DVB-T TV Laptop CDMA 2.4G 5G Coaxial Cable Antenna

Electrical performance
Frequency range	1700-1800MHZ
Voltage standing wave ratio	≤1.5
Input resistance	50Ω
Gain	(3.5±0.5)dBi
Polarization Type	vertical
Horizontal beam width	(65±5)°
Vertical beam width	(50±2)°
Front-to-rear ratio	≥3dB
Maximum input power	50W
Connection type	antipole SMA
Third-order intermodulation	≤-107dBm
Protect Raiden	Direct Current
Mechanical
Size	L=50mm
Weight	0.1kg
Cover material	ABS+PU
Working temperature	(-40~+60)°

Used on the roof of a car magnetic antenna sucker antenna

Connector	SMA/FME/TNC/BNC/N/SMB
Plating	Gold Plated / Nickel Plated / Black Chromium Plated
Radome material	ABS
Temperature range	-40~+85°C
Vibration	100m/s2 (10~500Hz)
Impedance	50 OHM
Frequency Range	433M/GSM/2G /3G/GPRS/4G/ISM/5.8G
Peak gain	0~12dBi
Radiation pattern	Omin-directional in azimuth
Contact resistance	≤0.4 OHM @ inner contact ≤1.5 OHM @ outer contact
Max power	50W
VSWR	≤ 1.2

Product Applications
Company Profile
LSH Electronic Technology Co.,LTD was Founded on June 2000, The factory area is 7500 M2.LSH focuses on production design, professional hardware products and RF-connector product manufacturing. We have accumulated nearly 20 years of production and processing experience and a broad domestic and foreign raw material market with more than 100 high-precision automatic lathes, CNC lathes and a full set of secondary processing equipment, the company has added a new CNC lathe division since 2016 to meet the needs of different customers. Our customers from Japan, American and taiwan many international well-known enterprises to establish a long-term, good relations of cooperation.
The Raw Materials :Copper( Brass, beryllium copper, lead-free copper, etc),Free cutting iron, Stainless steel, Die steel, Aluminum alloy, PTFE, etc .
The main products: RF-Connector ,RF-Antenna ,PTFE,PEEK,PEL,POM insulators , Precision communication electronic spare parts,Precision auto parts.
Certification
LSH also approved ISO9001:2015. All the products approved CE,ROHS,ETL.
Companies strictly enforce the ISO9001(2015)international quality certification system. Packaging & Shipping Each piece packed in an opp bag, each opp bag packed in a small inner box,small boxes put in one standard exporting carton, then cartons packed in one pallet.Sea Shipping, Air Shipping and Express(DHL, Fedex, UPS)
Delivery Details:
Sample Order: 3-5 Days
Bulk Order: 7-14 Days after receiving your payment.
FAQ
Q1:Are you manufacturer?
A: Yes, We are manufacture since from 2000, is a well-known company with good reputation in China.
Q2:If I need sample, could you support?
A: We can supply you with the sample for free, but the delivery charges will be covered by our customers. For avoiding the misunderstanding, it is appreciated if you can provide the International Express Account for Freight Collect.
Q3:What's your MOQ?
A: 1000 pieces per model.
Q4: How do you charge the mold fee?
A: In case we need to open new mold for your ordered profiles, the mold fee will be refunded to customers when your order quantity reaches a certain amount.
Q5: What is the difference between theoretical weight and actual weight?
A: Actual weight is the actual weight including packaging. Theoretical weight is identified according to the drawing, calculated by of the weight of each meter multiplied by the length of profile.
Q6: How do you quote price, per piece?
A: We provide more than two pricing modes
Q7: How can you ensure high quality?
1) We have our own material production workshop and die factory for 20 years.
2) 100 workers, and workers should be well trained before go to work.
3) 100% QC on line and final inspection, no any defective products can be out from our factory.
4) We have a lot of certificates to ensure our quality, such as ISO9001:2015, ,SGS
certificate, etc.
Q8:What's your payment term?
A: 30% T/T deposit + 70% T/T before shipping.
