2023 Best Selling Manufacturer Sawdust Pellet Machine Biomass Wood Pellet Mill

Product Description

Product Description
2023 Best Selling Manufacturer Sawdust Pellet Machine Biomass Wood Pellet Mill

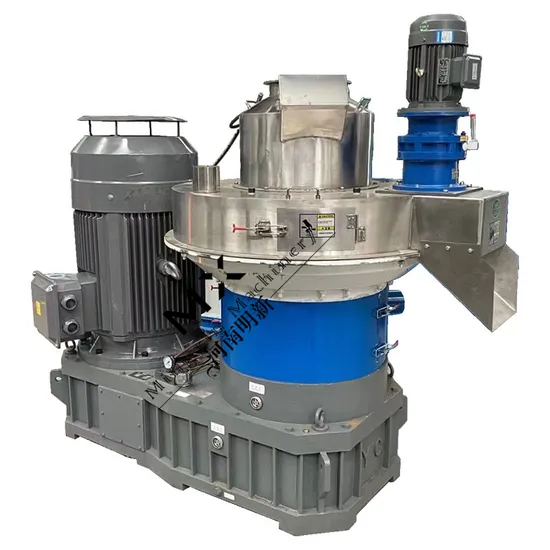

Biomass pellet machine is a kind of biomass energy pretreatment equipment. It mainly uses agricultural and forestry processing waste such as wood chips, straw, rice husk, bark and other biomass as raw materials, and solidifies it into high-density pellet fuel through pretreatment and processing. Biomass pellet machine is divided into flat die biomass pellet machine and ring die biomass pellet machine .

Advantage: 1. Feeding vertically, free of arch of the raw materials, easy for the heat emission in pelleting room. 2. Ring die with double layer, up and down dual use,reducing production cost. 3. Die fixed while rollers rotating, producing much higher presion, and materials are centrifugal,evenly distributed around, improving production capacity and also assuring pellets hardness and density. 4. With automatic lubrication system,easy maintenance,reducing cost, prolonging working life of the equipment. 5. 24 hours continuous operation, saving labour.
Application
The use of biomass fuels is a new type of bio-energy. It can replace wood, raw coal, fuel oil, liquefied gas, etc. It is widely used, such as:
1. Civil heating and domestic energy: high fuel utilization and easy storage.
2. Biomass industrial boiler: as the main fuel for industrial boilers, replacing coal combustion, reducing atmospheric emissions and pollution.
3. Power generation: It can be used as a fuel for thermal power generation.
Raw Material of Biomass Pellet Machine
This product is suitable for pressing materials that are difficult to bond and form. Such as: rice husks, sunflower seed husks, peanut shells, and other melon and fruit husks; branches, bark and other wood scraps; various crop straws, such as: wheat straw, corn straw, reed straw, rice straw, cotton Rods, etc.; various chemical raw materials such as rubber, cement, ash and slag.
1. Raw materials diameter requirement : 3-5mm(If large ,crusher machine should be used)
2. Raw materials moisture:15-25%.(If beyond the scope,dryer machine should be used ) Product Parameters

Model		MX-1600	MX-900	MX-750	MX-550	MX-450
power/KW	Main Machine	160	90	75	55	45
	Pellet Pusher	1.5 Spindle drive
	Electric Grease Pump	0.37
Rotation Speed/(r/min)		1450
Voltage/V		380, 3phase or customized
Pellet Size/(mm)		4-12
Pelletizing Temperature/(ºC)		80-100
Raw Material Moisture Content/(%)		15-25
Machine Weight/(t)		7.6	6.8	5.6	3.6	2.9
Mould Diameter/(mm)		580	560	500	450	400
Capacity/(t/h)		2	1.5	1.2	0.8	0.6

Detailed Photos

Production Line
1. Use Wood Chipper, Wood Crusher to make wood logs, chips (or other materials) smaller. 2. Use Dryer (rotary drum dryer / Air-flow dryer) or add water to the sawdust(or other materials) till its moisture content between 8-15%, which is the best moisture content for pelletizing. 3. Put the sawdust into the pellet machine gradually. Large scale pellet production need a screw feeder to make sure stable feeding of raw material. 4. After pelletized, the pellets are of high temperature that is not suitable for direct packing. So they should be cooled by pellet cooler. Then, pellets go through a vibrating sieve, where good pellets will be left, while broken ones or powder will be collected for reproduction. 5. After all the above procedures, pellets can be packed with a pellet packing machine. Packaging & Shipping

Inner packing: we can use plastic packing if the client needs
Outer packing: usually wooden case or the container
We can also pack the machine according to the client's need.
Delivery method: by sea
Delivery time: We respect the contract, and will deliver the goods on time as agreed for customized order. For normal products, we have stocks for immediate delivery. Our Company

Our company insists on the professional development based on the principle of innovation and honesty. We win the market with our advanced skills, high-quality products and considerate services.The products in our company have been exported to the South Africa, Pakistan, Vietnam and other counties with the advanced technology, reliable quality and reasonable price. We have also got the good reputations from customers at home and abroad.
FAQ
Q: How about the quality of your products?
A:We put the quality in the first place based on the honesty. Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before the delivery.
Q: How about the price?
A: We pursue small profits but quick turnover, and we can give you lower price than other trading companies. If the product is really suitable and can benefit you, the price is negotiable.
Q: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to solve your problems promptly and thoroughly.
