Marine Yacht Stainless Steel 20kn 4.3kw Hydraulic Electric Anchor Capstan Windlass Winch

Product Description

Marine Stainless Steel Electric Windlass/Winch/Capstan for 12.5mm~52mm diameter AM-2 anchor chain for yacht boat&patrol vessel&ship

Detailed Photos

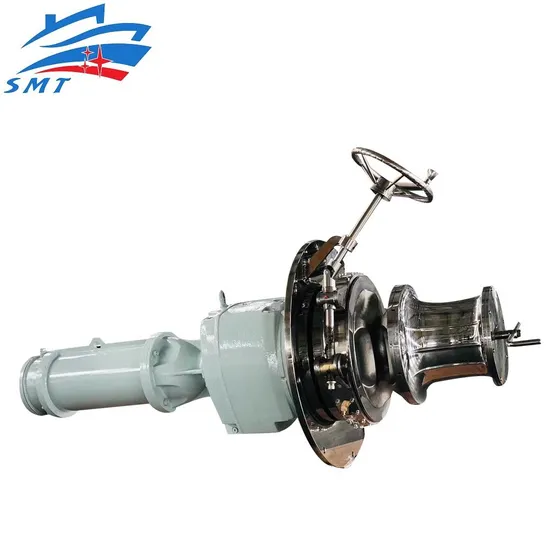

The Stainless Steel Anchor Winch Carefully hand polishing by our workers in order to make it perfect:
We can customize the windlass, design based on the type&Weight of your boat&vessel&ship, and then it can help your vessel work perfectly!
Speed of anchoring: 9 meters/min, Wrapping drum can install or remove according to the requirement of the customer.
Anchor Capstan Rated load according to the anchoring depth is ≤ 82.5 m Calculation
Furthermore, If there are special requirements, it needs to explain when ordering, therefore can customize according to customer requirements.
Moreover, The anchor chain wheel with diameter below 30mm adopts precision casting parts.
In addition with cast steel and 316L stainless steel for choice,which makes the product more beautiful and lighter.
Product Parameters
Stainless Steel Anchor Winch Working Parameters:

Chain Dia (mm, U2 Chain)	Rated load(KN)	Overload(KN)	Holding load(KN)	Speed(m/min)	Electric Power-Double Motor(KW)	Hydraulic Power(KW)
12.5	6.6	9.9	42	≥9	2.4/1.5	4
14	8.3	12.5	52	≥9	2.4/1.5	4
16	10.9	16.4	67	≥9	3.3/2/2	5.5
17.5	13.0	19.5	81	≥9	4.3/1.7	5.5
19	15.3	23	95	≥9	4.3/1.7	5.5
20.5	17.9	26.9	110	≥9	4.3/1.7	7.5
22	20.6	30.9	126	≥9	6/2.5	7.5
24	24.5	36.8	145	≥9	8.5/3.5	11
26	28.7	43.1	175	≥9	8.5/3.5	11
28	33.3	50.0	202	≥9	11/11/7.5	15
30	38.3	57.5	231	≥9	11/11/7.5	15
32	43.5	65.3	262	≥9	11/11/7.5	15
34	49.1	75.7	295	≥9	11/11/7.5	18.5
36	55.1	82.7	329	≥9	16/16/11	18.5
38	61.4	92.1	365	≥9	16/16/11	22
40	68.0	102	403	≥9	16/16/11	22
42	75.0	112.5	442	≥9	22/22/16	30
44	82.3	123.5	486	≥9	22/22/16	30
46	89.9	134.9	527	≥9	22/22/16	30
48	97.9	146.9	572	≥9	22/22/16	30
50	106.3	159.5	617	≥9	30/30/22	37
52	114.9	172.4	666	≥9	30/30/22	37

FAQ
WHO ARE WE ?
We are professional marine equipment supplier/exporter, new shipbuilding&ship-repair materials&outfittings soulution provider in Mainland, China
WHAT CAN WE DO ?
We have professional design team to help you solve problems of your vessel, we can recommend a set of solutions for your vessel to choose.
HOW TO ENSURE THE QUALITY?
Every equipment will be tested before leaving our factory, we can show you the video and testing report, also if go for marine classification society survey, we will have the product certificate showing all the testing result and approved. WHAT CERTIFICATE DO YOU HAVE?
Our products can be issued of ABS, BV, CCS, DNV, GL, LR, RINA…etc, while BV and CCS are most common use and worldwide accepted certificate, every products can apppy for above certificate.
HOW TO ENSURE INTERNATIONAL DELIVERY SECURITY ?
Every cargo will be packed with appropriate package, also we have professional packing workers and forklifts to load and fix the cargo in container&air plane, ensuring the safety of sea/air transportation. HOW ABOUT THE WARRANTY OF THE PRODUCTS ?
One year warranty-when the cargo arrived at your vessel we will keep providing service like Installation instructions and spare parts repairing in later using, we will always be there once you have any problems.
