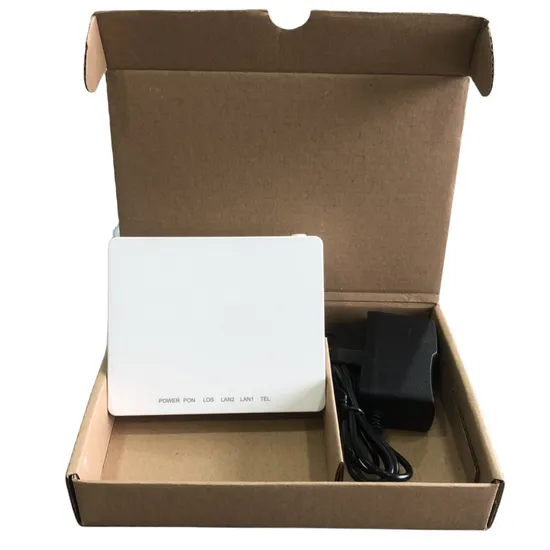

Factory Direct Sale Gpon Epon Xpon ONU Ont Hg8120c 1ge 1fe 1pots FTTH Hgu Terminal English Version

Product Description

Product Description
As a network terminal, the HG8120C is deployed at the GPON access layer and connects the home users and SOHO users to the Internet through the optical upstream port. On the local area network (LAN) side, the HG8120 provides abundant hardware ports to meet multiple network requirements of home users and SOHO users.

Model	Internet Ports	Voice(tel)	Router (PPPOE)	Wifi	Firmware language
HG8120C	2	1	support	NO	English
	Power plug: EU,AU,AM,UK etc			Noted: with Chinese manual

The HG8120C Provide English firmware and EU, US, UK, AU Power adapter for your choice.
DATASHEET

GPON Port Specifications:
Transmission rate	Rx: 2.488 Gbit/s Tx: 1.244 Gbit/s
Port mode	Single mode
Connector	SC/APC, SC/UPC
Maximum reach	20 km
Standard compliance	ITU-T G.984.2 CLASS B+
Center wavelength	Tx: 1310 nm Rx: 1490 nm
Tx optical power	0.5 dBm to 5.0 dBm
Extinction ratio	> 10 dB
Minimum receiver sensitivity	-27 dBm
Maximum overload optical power	-8 dBm
Power Specifications:
Power adapter input	100-240 VAC, 50-60 Hz
System power supply	11-14 VDC, 1A
Maximum power consumption	8W
Working Environment:
Operating temperature	0ºC - 40ºC
Environment humidity	5% - 95% (non-condensing)
Dimensions and Weight:
Dimensions (L W H)	143mm x 115mm x 30mm
Weight (including power adapter)	about 250g

Feature and Application:In the upstream direction, the HG8120C is connected to the optical splitter and the networkside OLT through the passive optical network (PON) port, namely the OPTICAL port, to provide the integrated access service.
In the downstream direction, the HG8120 is connected to various terminals through the abundant LAN-side ports, implementing the triple play service. Two 10/100M Base-T Ethernet port, which can be connected to terminals such as the PC, STB, and video phone to provide the high-speed data and video services. One TEL port, which can be connected to the telephone set or fax machine to provide the superior and cost-effective voice over IP (VoIP), fax over IP (FoIP), and modem over IP (MoIP) services. Comprehensive Triple Play ServiceOn the LAN side, the HG8120C provides abundant hardware ports to implement multiple access services, including the Internet access, voice, and video services, providing users with the comprehensive triple play service. The HG8120C applies the TR-069 and OMCI management, manages terminal services without additional IP networks, which facilitates automatic provisioning, maintenance, and managemen of the remote service. Detailed Photos
