500ml 3 Cavities Fully Automatic Blow Moulding Machine
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
ZQ-M600-3
Making Method of Parison
Injection Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
After-sales Service
Engineers Available to Service Machinery Overseas
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Number of Cavity
3 Cavities
Max.Output
3000-3300bph
Products Max.Volume
600ml Pet Bottles
Auto Systems
Fully Automatic
Delivery Date
30 Days
Transport Package
General Packing
Specification
CE & ISO 9001
Trademark
ZQ
Origin
Huangyan, China
HS Code
8477300000
Production Capacity
30 PCS/Month
Product Description
500ml 3 cavities Fully automatic blow moulding machineZQ-M Series is Fully Automatic Bottle Blow Molding Machine
By structure optimization and technicial innovation, Cost-effective ZQ-M series of blowing machines have been developed on the basis of ZQ-A series of blowing machines.

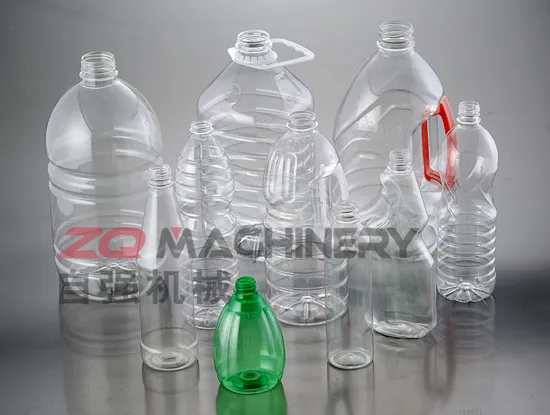

ZQ-M series of blowing machines can produce different shapes of 0.6L, 2.0L, 5L and 10L carbonated, mineral, pesticide, cosmetics, wide-mouth and other plastic PET/PP containers. They have all the advantages of ZQ-A series of blowing machines: Low rejection rate, high speed, stable running and easy operation.
Settings One.
A). PLC colour display: OMRON(Japan)
B). Pneumatic parts: FESTO(Germany)
C). Controller of preform transfer: Servo motor DELTA(Taiwan)
D). Other electric parts are all world-famous brand
500ml 3 cavities Fully automatic blow moulding machine,equipment information.
| TYPE | ITEM | ZQ-M600-1 | ZQ-M600-2 | ZQ-M600-3 | ZQ-M600-4 |
| CONTAINER | Number of cavity | 1 | 2 | 3 | 4 |
| Output | 1200-1500 pcs/hr | 2000-2300 pcs/hr | 3000-3300 pcs/hr | 4000-4500 pcs/hr | |
| Max.container volume | 0.6L | 0.6L | 0.6L | 0.6L | |
| Max.neck diameter | 38mm | 38mm | 38mm | 38mm | |
| Max.container diameter | 60mm | 60mm | 60mm | 60mm | |
| Max.container height | 260mm | 260mm | 260mm | 260mm | |
| ELECTRICAL SYSTEM | Number of lamp | 14pcs | 28pcs | 32pcs | 32pcs |
| Max.heating power | 12kw | 22kw | 32kw | 48kw | |
| Installation power | 14kw | 25kw | 35kw | 52kw | |
| Actual power consumption | 9kw | 14kw | 20kw | 32kw | |
| AIR SYSTEM | Operatating pressure | 8kg/cm² | 8kg/cm² | 8kg/cm² | 8kg/cm² |
| Low pressure consuming | 800Ltr/min | 1000 Ltr/min | 1200 Ltr/min | 1400 Ltr/min | |
| Blowing pressure | ≤30kg/cm² | ≤30kg/cm² | ≤30kg/cm² | ≤30kg/cm² | |
| High pressure consuming | 1200-1600Ltr/min | 1500-2000Ltr/min | 2000-2500Ltr/min | 2500-3000Ltr/min | |
| CHILLER WATER | Operating pressure | 8-10 kg/cm² | 8-10 kg/cm² | 8-10 kg/cm² | 8-10 kg/cm² |
| Temperatuer | 10°C | 10°C | 10°C | 10°C | |
| Consuming | 3600kcal/hr | 5600kcal/hr | 7600kcal/hr | 8800kcal/hr | |
| Flow rater | 20Ltr/min | 30Ltr/min | 40Ltr/min | 50Ltr/min | |
| MACHINE | Machine dimension | 2.5×1.4×1.7(m) | 2.9×1.55×1.8(m) | 3.4×1.4×1.8(m) | 3.95×1.65×1.85(m) |
| Machine weight | 1.7T | 1.8T | 2.1T | 2.5T |
Note: The specifications are subject to change without notice for the further improvement.
Note: Custom production accepted. Any client idea tried.
