Advanced Combine Harvester for Efficient Grain and Potato Harvesting Tasks

Product Description

Product Parameters

Model		4LZ-13
Horsepower		Yuchai 260HP
Drive type		4WD
Dimension(L*W*H)(mm)		9450*5800*3850
Weight(kg)		12500
Cutting width (mm)		5400-6100
Production efficiency	Productivity(hm²/h)	1-2.7
	Fuel consumption(L/hm²)	≤41
	Fuel tank capacity(L)	370
	Working speed (km/h)	1.5-6
	Mini clearance(mm)	430
	Feeding speed(kg/s)	13
Thresher	Grain tank(m³)	10
	Max unload height(mm)	4750
	Threshing pattern	Vertical axial flow rod tooth type
	Grain unloading drum height	4400
	Sorting method	Reciprocating vibrating screen+Centrifugal fan
Chassis	Wheel base(mm)	3305
	F/R wheel space(mm)	F:2600/R:2638
	Tyre model(F/R)	F:28L-26/R:19.5L-24

Detailed Photos

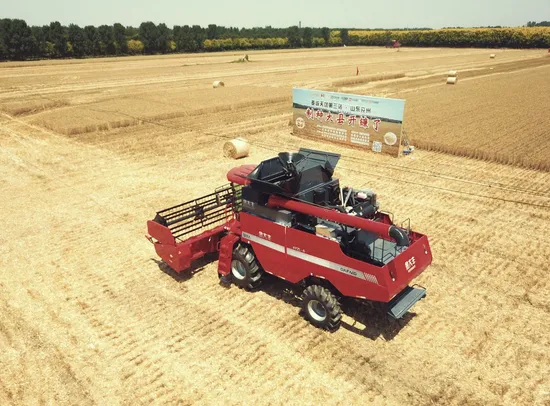

4LZ-13 This self-propelled wheat harvester, identified as the 4LZ-13, is engineered with cutting-edge longitudinal axis flow roller separation technology. It is primarily designed for harvesting wheat and rice, ensuring optimal efficiency and precision. With the flexibility of interchangeable parts, it can skillfully switch to harvesting a variety of crops such as soybeans, miscellaneous grains, and corn kernels, featuring a 6-row corn header with working widths of 4030 or 3780mm.
Renowned as China's premier grain combine harvester, the 4LZ-13 excels in versatility. It can effortlessly harvest an array of crops including soybeans, corn kernels, sesame, sunflowers, barley, sorghum, and rice. By simply replacing the header and adjusting the operational speed, it offers unmatched adaptability and practicality. Its extraordinary capabilities have garnered immense popularity in the global agricultural market.
The customized edition of the 4LZ-13 has already made a significant impression on the international scene, earning high praise from satisfied customers worldwide.
We offer an extensive range of personalized services, empowering you to craft your very own grain combine harvester, precisely tailored to meet your unique agricultural needs.


Product Description
More detailed technical information about 4LZ-13
With an impressive working width ranging from 5.4 to 6.1 meters and a robust feeding rate of 13 kg/s, this harvester sets the benchmark for efficiency. For instance, when tackling a standard block of 200 meters in length, it can harvest a bountiful 2.7 hectares of wheat within just one hour, showcasing its outstanding productivity and time-saving capabilities. Equipped with a mighty Yuchai 260 horsepower engine that offers four versatile operating gears adjustable at 260, 240, 220, and 160 horsepower, this machine empowers the driver to select the optimal power output tailored to the specific crops being harvested. This ensures not only remarkable energy efficiency but also significant fuel savings, making it an eco-friendly choice. The front wheel, sized at 28L-26, and the rear wheel, sized at 19.5L-24, are both engineered with enlarged and wide high-pattern tires. These advanced tires are expertly designed to navigate a variety of terrains, including sandy, muddy, and slippery land, providing unparalleled adaptability and performance under diverse agricultural conditions. Featuring a robust four-wheel drive structure, the front drive employs a static hydraulic system to deliver seamless and comfortable operation. The collaboration of a 1000 series front axle with a heavyweight four-wheel drive rear axle ensures exceptional load-bearing capacity and excellent roadholding capabilities, delivering unmatched stability and reliability on the field. An extended fish scale screen significantly enhances the cleaning area, while the easy-to-change concave screen panels facilitate rapid modifications to the cutting header and threshing components. This versatility enables the harvester to efficiently process various crops such as wheat, corn, soybeans, and sorghum, offering a multifunctional solution with a single machine. The harvester boasts a heavy-duty high-low gearbox roller transmission housing, expertly integrated with a continuously variable speed disk. This design allows the roller speed to dynamically adjust between 300 to 1100, accommodating diverse operational demands. Every spherical bearing on this machine is crafted with American Peer bearings, renowned for their remarkable load-bearing capacity and durability. Additionally, the transmission belt, featuring a black one-tooth design, excels in tension and heat dissipation, making it perfectly suited for prolonged and extensive operations. The harvester's cutting header bridge is ingeniously equipped with a reverse function, simplifying the process of clearing blockages from the bridge and cutting table. This advanced feature facilitates uninterrupted operation and enhances overall efficiency. The grain tank's innovative hydraulic system enables automatic raising and lowering with a simple one-button operation. The driver can effortlessly manage the grain bin cover through a convenient electric control button, ensuring user-friendly functionality and seamless operation. Company Profile
Shandong King Machinery Co., Ltd. proudly stands as a national high-tech enterprise, fully dedicated to the innovation, creation, and international distribution of top-tier agricultural machinery. Our comprehensive portfolio features an array of cutting-edge harvesters, including corn, grain combine, soybean, peanut, and rice harvesters, alongside robust tractors and essential agricultural auxiliary tools.
Our expansive facilities span 300,000 square meters, staffed by nearly 1,000 skilled professionals, fortified by three decades of unparalleled expertise in agricultural machinery manufacturing. We are committed to delivering superior service, with our products reaching over 30 countries across diverse regions such as Russia, South America, Central Asia, Southeast Asia, and Africa. Boasting over 70 inventive technology patents, our company thrives on exceptional management and research capabilities, constantly innovating and tailoring designs to fulfill customer requirements. Celebrated for our outstanding product quality, self-reliant R&D, and impeccable after-sales service, we hear the continuous accolades from both domestic and international clientele. 'Serve customers and make progress together!' Emboldened by this ethos, we pledge to persistently advance in the realm of agricultural machinery and equipment, offering world-class products and services. Our mission is to arm farmers with unparalleled planting support and to spearhead innovation as the KING of agricultural machinery-cementing our status as a pioneering leader in R&D and manufacturing.
Our product's exceptional quality is guaranteed by the integration of the most advanced technology available.
We offer an unrivaled array of options, ensuring that every customer's diverse needs are met with precision.
Our elite and cutting-edge technical team delivers prompt and expert technical services, setting the standard for excellence.

Our Advantages
What truly captivates and conquers the market is never just the price,
but the impeccable and unwavering quality of our offerings.
What genuinely moves and inspires people is never mere language,
but the steadfast integrity that we consistently uphold.
What genuinely retains and satisfies customers is never just a discount,
but the powerful and persuasive word of mouth that endorses us.
Certifications
PERFECT TECHNOLOGY GIVES YOU FULL SATISFACTION
At Shandong King Machinery Co., Ltd., our confidence stems from our cutting-edge technology that ensures every grain and potato harvesting task is executed with precision and excellence.
