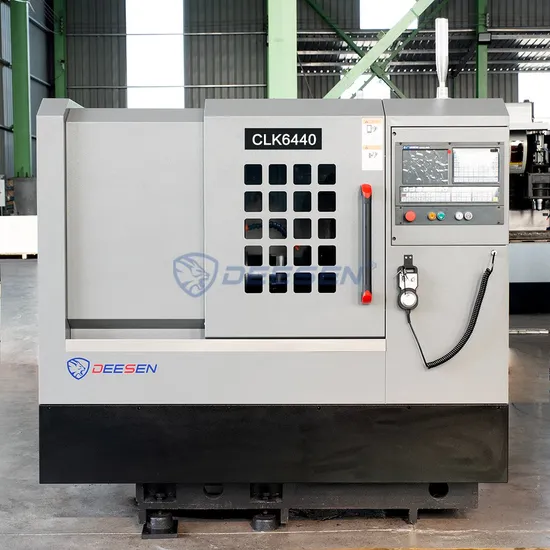

Automatic Metal Tck6440 Horizontal Metal Slant Bed CNC Lathe

Product Description

Automatic Metal TCK6440 Horizontal Metal Slant Bed CNC Lathe Product Description

Guarantee of Quality
The excellent quality is our dignity. All MAXNOVO MACHINE products are produced with high quality standards.
There are same or similar products on the market, however, those products could not meet the WEWOO MACHINE strict quality.
Our products are convincing by outstanding quality, accurate manufacturing and at a cost-efficient price and trustable performance.
Laser Interferometer Testing Equipment
Well trained quality control department is the first contact for adhering to quality on site.
They are responsible for the dimensional accuracy of the components as well as their control and the quality of the manufacturing process.
A team of quality control engineers directly influences the production process on site by regular training courses and tests.
What is more, they are closing working together with the technical department in the factory.
Due to this intensive care at the production site we are able to achieve literally the WEWOO MACHINE.
Product Parameters
SPECIFICATIONS

Specifications	TCK6340	TCK6350	TCK6440
Max.swing over bed (mm)	φ400	φ730	φ540
Max. processing length (mm)	φ300	φ410	φ400
Max.swing over cross slide (mm)	φ140	φ220	φ270
Spindle nose	A2-5	A2-6	A2-6
Chuck size	6/8''	10''	8″
Spindle motor power (kw)	5.5KW	7.5KW	7.5KW
Max.spindle speed (rpm)	3500rpm	3000rpm	4000rpm
Spindle bore (mm)	φ56	φ66	φ65
Max turning Dia Bar (mm)	φ45	φ55	φ52
Bed tilt angle	45°	45°	45°
X/Z axis travel (mm)	380/350	500/500	350/270
X axis limit Travel (mm)	380	500	350
Z axis limit Travel (mm)	350	500	270
X/Z axis repeatability	±0.003	±0.003	±0.003
X/Z axis feed motor torque	6/6	7.5/7.5	7.5/7.5
X/Z Rapid traverse	18/18	18/18	18/18
Machine dimension (mm)	2350x1500 x1750	2500x1620 x1890	1925x1840 x1700
Weight (kg)	2500	2900	3000

Detailed Photos
HYDRAULIC CHUCK
Standdard With Hydraulic chuck
TAIWAN LINEAR RAIL&BALL SCREW
Taiwan linear rail& ball screw with high precision and speed.
HYDRAULIC COLLET
Standard with hydraulic collet .Hydraulic chuck is optional,need extra cost.
Taiwan brand spindle unitwith high speed
Integrated casting bed body, resistant totension and earthquake resistance.2.30 °inclined bed for more convenientchip removal.
CNC CONTROLSYSTEM
Taiwan precision lead screw.Standard:GSK
Optional :SiemensFanuc,Syntec, Mitsubishiand others.

Company Profile

Since its establishment, Deesen Machine Tool (Shandong) Co., Ltd. has more than 20 years of experience as a professional lathe manufacturer. Has been deeply cultivated in the machine tool industry, has gradually developed into a highly influential enterprise.
In the field of research and development, we have invested a lot of resources and set up a professional research and development team with top talents. The team members include mechanical engineering experts, automation technology elites, etc., they keep up with the industry's cutting-edge technology trends and constantly explore innovation. With the in-depth study of the core technology of the machine tool, the company has independently developed a number of key technologies, which makes our machine tools reach the micron level in cutting accuracy, greatly improving the degree of refinement of parts processing.
In terms of production, the company adopts advanced production management system, has a modern production workshop and high-precision processing equipment. Whether it is casting, stamping, or machining, we strictly follow the principle of fine production to ensure that every component meets high quality standards. Moreover, we have established a strict quality inspection process, from raw material procurement to finished product assembly, each process is checked at various levels, using a variety of internationally accepted quality inspection methods, to ensure that the product pass rate of more than 99%.
The company has a complete range of products, from conventional ordinary machine tools to high-end CNC machine tools. Among them, our CNC machine tools have the advantages of high automation, high precision and high stability, and are widely used in high-end manufacturing fields such as automobile manufacturing, aerospace and precision mold processing.
In addition to excellent products, we have also built a perfect after-sales service network. The after-sales center arranges professional technical service personnel to provide 7×24 hours rapid response service. Whether it is equipment installation, commissioning, maintenance, or operator training, we can provide customers with a full range of quality services.
Over the years, with leading technology, excellent product quality and perfect service system, Deesen Machine Tool (Shandong) Co., Ltd. has not only occupied an important market share in China, but also exported to many countries and regions, winning wide praise from customers at home and abroad. In the future, we will continue to take innovation, quality and service as the cornerstone, constantly improve the competitiveness of enterprises, and lead the machine tool industry to a new height.
FAQ

1:How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?

A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?

A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?

A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .

6: What's the MOQ?

A: 1 set .(Only some low cost machines will be more than 1 set )
