Animal Poultry Feed Pellet Cooling System for Farm
| US$4,500.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Processing Technics
Cooling Feed Pellets
Screen Mesh
With Screen Mesh
Grinding Equipment Type
Feed Hammer Mill
Pellet Mill Type
Ring Die Pelleter
Output
1000-20000 Kg/H
Pellet Size
1-20 mm
Application
: Machinery Repair Shops, Food & Beverage Factory
Transport Package
Export Wooden Case
Origin
China
HS Code
84743900
Production Capacity
30000PCS/Year
Product Description
Product Description1. The counterflow cooling principle is adopted to cool the pellets with high temperature and moisture. Hot air touches hot pellets and cool air touches cool pellets so as to avoid the pellet surface crack caused by sudden cooling produced by direct touching between cool air and hot pellets. At the same time, the airlock is used for feeding and space of air inlet bigger, therefore it can get better cooling effects;
2.Slide reciprocating discharger has smooth and reliable discharging, low residue;
3.Low power consumption, ease of operation;
4.Pellet temperature after cooling is less than +3°C~5°C ambient temperature;
5. Capable of cooling pellets.

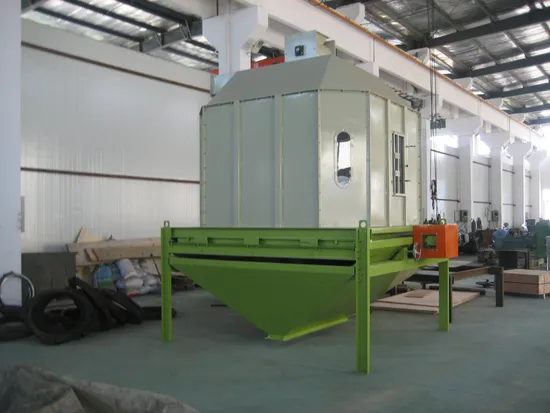

Detailed Photos
Product Parameters
| Model Parameters | SKLN1.5 | SKLN2.5 | SKLN4 | SKLN6 | SKLN8 |
| Volume(m³) | 1.5 | 2.5 | 4.0 | 6.0 | 8.0 |
| Capacity(t/h) | 3 | 5 | 10 | 15 | 20 |
| Cooling time(min) | Less than 10-15Mins | ||||
| Temperature after Cooling(°C) | Not higher than ambient temperature +3~5 | ||||
| Aspiration(m³/min.t) | 34 | ||||
| Power(kw) | 0.75 | 1.10 | 1.50 | 1.50 | 1.50 |
| Power of Airlock (kw) | 0.55 | 0.55 | 0.75 | 1.1 | 1.5 |
