Mini Metal Moulds CNC Router Cutting Milling Machine for Iron Aluminium Copper 4040 Precsion 0.02mm

Product Description

Product Description
metal moulds cnc router machine for iron aluminium copper

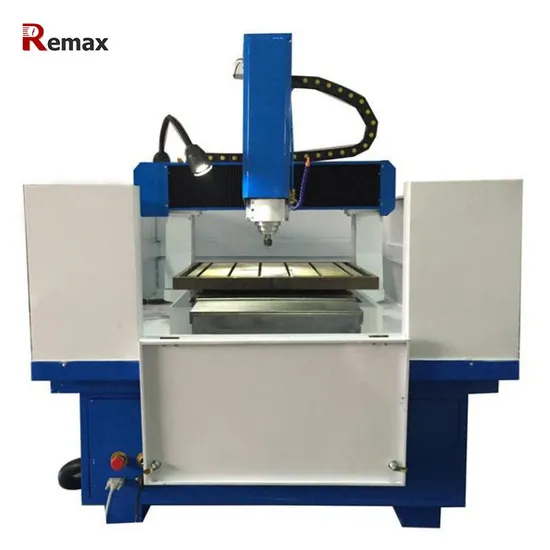

REMAX-4040 3 AXIS MACHINE
1. The metal machine body is strong, high precision and durable. Whole steel structure, good rigidity and stability.
2. High quality all steel linear guide with high precision,ensure machine frame much stability and durability.
3. The metal milling machine adopts advanced CNC system, has break point memory mode to make continuous working after electronic drop or other situation.
4. Automatic (manual ) oil lubrication system is easy to operate by one key press, equiped with dust proof and water proof for XY axis.
5. Imported high-precision ball screw gap, smooth movement, to ensure that the machine tools high-precision
Application of CNC Metal Engraving Machine
1. It is suitable for precision engraving, milling and drilling of steel, copper, aluminum, plastic and other materials.
2. Widely used in automobile, injection mold, hardware mold and engraving mold industry.
3. Specially designed for engraving and milling dies, glasses, watches, panels, badges, brands, large-size three-dimensional graphics and characters with smooth outer surface.
Parameter

Description	Parameter of cnc milling machines
X,Y,Z Working Area	400x400x200mm
X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
X,Y,Z Repositioning Accuracy	±0.03mm
Table Surface	T-slot Table
Frame	cast by iron
X, Y,Z Structure	Hiwin Rail Linear Guide and Ball Screw
Max. Rapid Travel Rate	16000mm/min
Max. Working Speed	10000mm/min
Spindle Power	3.2KW water cooling spindle
Spindle Speed	0-24000RPM
Drive Motors	Leadshine Servo Motor and driver
Working Voltage	AC220/380V/50/60Hz,3PH
Command Language	G Code
Running Environment Temperature	0 - 45 Centigrade
Relative Humidity	30% - 75%
Inverter	Delta/Fuling
Operating System	NK 280(Options: Ncstudio/Mach3 PC Software,DSP)
Computer Interface	USB
Flash Memory	128M(U Disk)
X,Y Resolution	<0.01mm
Software Compatibility	Type3/UcancameV9 Software, (Option: Artcam Software)

Reference Parts

Reference Samples
Our Service
A Guarantee:
1. 12 months for the whole machine.
2. Within 12 months under normal use and maintenance,
If something is wrong with machine, you will get spare part for free.
3. Out of 12 months, you will get spare part at cost price.
4. You will also get technical support and service all the lifetime.
B Technical support:
1, Technical support by phone, email or MSN/Skype 24 HOURS
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
C After sales services:
1 Normal machine is properly adjusted before dispatch.
2 You will be able to use the machines immediately.
3 You will be able to get free training advice towards our machine in our factory.
4 You will also get free suggestion and consulting, technical support and service by email/fax/tel and lifetime technical support.
