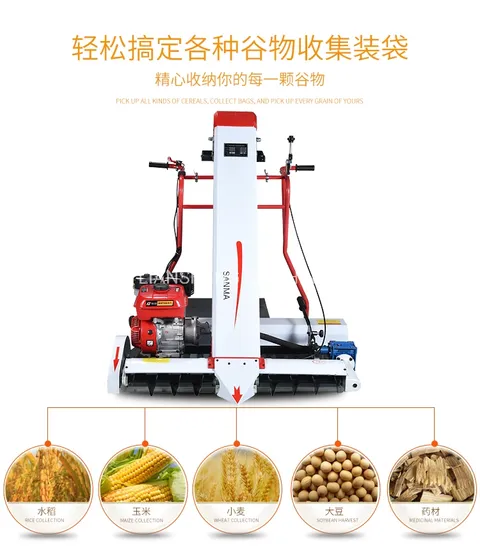

Home Use Self-Propelled Wheat Packer Grain Gather Machine Soya Bean Bagging Machine Cropper Conveyor

Product Description

Home use Self-propelled wheat packer grain gather machine soya bean bagging machine cropper Conveyor Product Description
1. Vacuum suction: use the engine power to drive the fan blades to generate a strong airflow, pump the air in the receiving chamber into a vacuum, and make a certain pressure difference between the box and the outside of the box, so as to suck the ground grain into the box. in vivo
2. Scraping cylinder assembly: The casing is divided into two parts by a scraping cylinder, one part is a vacuum box body, one part is an atmospheric pressure box body, and the grain enters the natural environment from the vacuum environment through the scraping cylinder assembly.
3. Stirring and lifting: using the agitation, the grain that enters the horizontal agitation can be stirred up by the agitation and then enter the grain bag.
4. Clutch: The clutch can be used to start the engine when the engine is unloaded, easy to start, and when the valley is sucked, the clutch is tightened, which can achieve the functions of sucking the valley and removing the valley.
5. Suction head adjustment device: The suction valley mouth has a spring automatic adjustment structure, which can be adjusted with the state of the ground, so that the suction valley mouth always maintains the good suction valley state with the ground to maintain the good suction valley effect.
6. Walking device: This machine is a new type of grain-receiving machine with self-walking function on the market, and we have two speeds for walking in this 2018 new model. The thin drying field uses the fast gear to ensure the high efficiency of the machine. At the same time, the harvesting machine is a grain-receiving machine that can continuously change the grain and not change the bag.
Main parameter

Model	SL-350
work efficiency	6000-7000kg/h
Max working width	100cm
Fuel consumption	375g/km.h
Driving mode	Self-propelled
Weight	110kg
Dimension	1400*1220*1280mm
