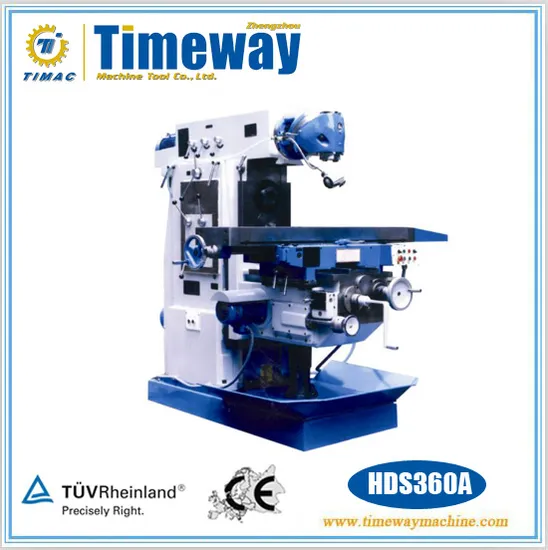

Fresadora / Universal Swivel Head Milling Machine (HDS)

Product Description

Fresadora / Heavy Duty Vertical Milling Machine ( HDV Series)
PART 1---Parameter:

Specification	Unit	HDS320A	HDS360A	HDS400A
Working table	mm	320×1400(1700)	360×1400(1700)	400×1400(1700)
Number of T-slot		3
Width of T-slot	mm	18
Pitch of T-slot	mm	80
Longitudinal travel of table	mm	900(1100)
Cross travel of table	mm	335		400
Vertical travel of table	mm	475
Spindle taper		ISO50
Range of spindle speed	rpm	30~1525/40-1800
Max..swivel angle of vertical milling head		any 360º in front half-sphere
Min.distance between spindle and table surface	mm	10-485
Longitudinal feed range of work table	mm/min	22-1028
Cross feed range of work table	mm/min	22-1028
Vertical feed range of work table	mm/min	9-427
Power of main motor	kw	7.5
Power of feed motor	kw	1.5
Net weight	kg	4500
Overall dimension(L×W×H)	mm	2360(2410)×1950×2100

Part 2---Our Services
1. Free replacing parts available in the warranty period.
Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).


Part 3---FAQ
1. Trade terms: FOB, CFR, CIF, EXW, FCA price terms is acceptable.
2. Payment terms: T/T, L/C, Western Union payment terms is acceptable.
3. Delivery time: 60~90days....(vary as the machine's different size and complexible).
4. Warranty period: 12 months after delivery.
(Within the warranty period, if there is any problem not caused by wrong operation, we will supply you the replacing parts for free. Even beyond the period, we will still supply the replacing parts with cost price). Packaging & Shipping
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Customer visited
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
The following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view

Conventional Lathe	CNC Lathe	CNC Machining Center	CNC Milling Machine
Grinding Machine	Milling Machine	Special Use Lathe	Boring Machine

FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
