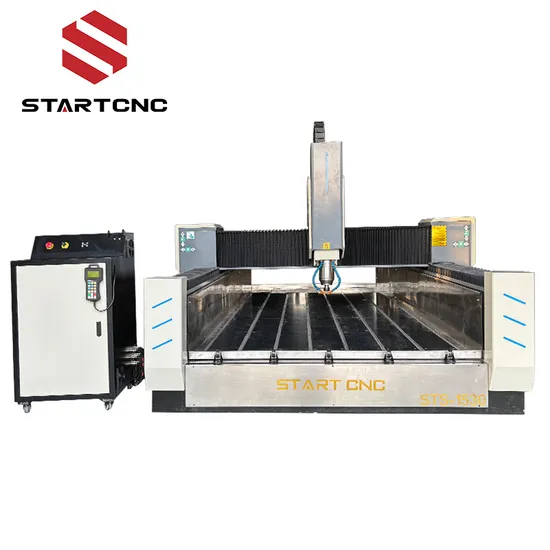

Startcnc China Stone Marble Cutting Router Machinery
Basic Info.
Model NO.
STS-1530
Function
Cutting, Line Engraving
Application Material
Granite
Automation
Automatic
Control
CNC
Motor Power
High Power
Engraving Head Speed Adjustability
Wide Adjustable Range
Certification
CE
Current
AC
Application
Advertising, Stone Industry
Customized
Customized
Spindle Power
5.5kw
Control System
DSP A11
Motor
Servo Motor
Color
Customized
Transport Package
Wooden Case
Specification
weight: 1500kgs
Trademark
STARTCNC
Origin
China
HS Code
84659900
Production Capacity
10000sets Per Year
Product Description
Product DescriptionDetailed Photos
Product Parameters
| 1)-Model: | 1530 |
| 2)-Structure: | Seamless steel welded |
| 3)-Table: | Aluminumwith t slot. Water tank |
| 4)-XYZ working size: | 1500*3000*400mm |
| 5)-XYZ transmission: | XY axis is helical rack and gear,Z axis Ball Screw |
| 6)-XYZ guide rail: | Famous Taiwan Hiwin Line 20mm Square guide way |
| 7)-Spindle: | 5.5kw water cooling spindle |
| 8)-Spindle collet: | 2 pieces |
| 9)-Inverter: | Well known china Fuling 5.5kw |
| 10)-Motor: | stepper motors |
| 11)-Driver: | 860H driver |
| 12)-Controller system: | DSP A11 control system |
| 13)-Voltage: | 220v/ 380v, 50/60HZ |
| 14)-Software: | Artcam |
| 15)-Router bits: | 10pcs for free |
| 16)-Lubrication: | YES |
| 17)-Delivery time: | 18-20 working days |
| 18)-Packing weight: | 1500KG |
Certifications
Packaging & Shipping
Company Profile
After Sales Service
FAQ
1.Our Payment Way?
L/C and T/T or other ways.
2.Delivery Time?
30 days after downpayment.We have our own forwarder and we have long term cooperation with each other and have closely relationship with each other.so there is no problem in shipment.
3.Our Warranty?
(1)One year guarantee from the delivery date of this machine under the normal operation of one shift per day.
(2)We will be responsible for the maintenance of damaged part which is under normal situation during warranty period, and all the round-trip courier transportation cost of damaged/repaired replacement parts in warranty period should be borne by the buyer. Wearing parts are not included.
(3)24 hour technical support by email or calling.
(4)User-friendly English manual for machine using and maintaining.
4.Our Services?
(1)One-stop service, meet needs of the customers from individuals to international companies.
(2)OEM service accepted.
(3)After sale Service: experienced and knowledgeable team of technical support, provide engineer oversea service.
