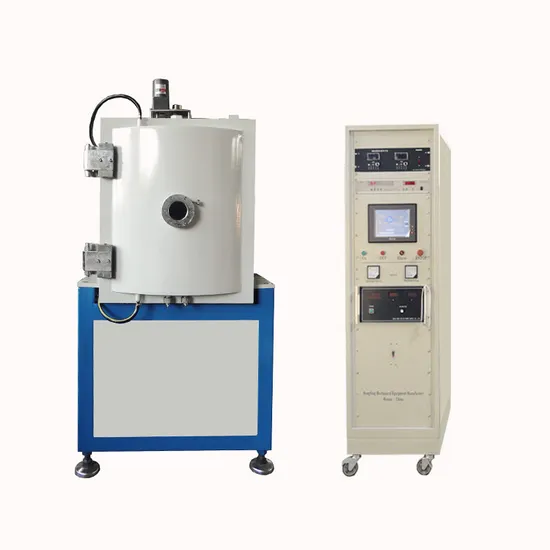

Hondson VAC Vacuum Coating Machine Physical Vapor Deposition Film Plating Systems

Product Description

Hondson VAC Vacuum Coating Machine Physical Vapor Deposition Film Plating Systems
Vacuum magnetron sputtering technique is the use of the female, bipolar electrode surface with the magnetic field of the electron in the cathode surface drift, by setting the target surface electric field perpendicular to the magnetic field, the electron increases stroke, increase the rate of ionization of the gas, while the high-energy particles gas and lose energy after the collision and so lower substrate temperature, complete coating on a non-temperature resistant material. Vacuum magnetron sputtering coating has the following advantages:
(1) The thickness of the coating can be controlled, according to the needs of people plating film, and the coating can be repeated, but also to break the limit of the prior art, to obtain a uniform film thickness on a large surface;
(2) Film obtained by this technique with strong adhesion;
(3) This technique can be prepared a special film material, according to their needs while sputtering hybrid film, compound film;
(4) high purity film.
Both of cathodic arc depsotion and magnetron sputtering coating technologies can be used for the vacuum PVD coating process.
We provide customized options for the machine, such as the different vacuum pumping systems, gas distribution system, coating system, etc.
The vacuum coater will be made exactly to feet your requirements. Our PVD machines are popular in Russia, Mexico, USA and other european countries.
Main Specifications:

Parts Name	Vacuum magnetron sputtering system
* Main applications for sputtering machines	High quality plastic metallizing; mirror making; ITO conductive glass, Low-E glass and sun reflecting glass; silvering for disposable plastic culteries; Solar glass tubes; tools coating; other thin film coating.
* Custom made(Vertical or Horizontal chamber)working chamber in Rectangular or cylindrical	Single layer or with cooling jacket
* Base material of body	Carbon steel or stainless steel
* Custom made carousel/rack/jigs	√
* High vacuum system based on oil diffusion pumps or molecular pump, roots/booser pump and mechanical pumps;	√
* Electrical controlling center with PLC screen, automatic and manual work modes available;	√
* Tungsten&aluminum filament evaporation unit	×
* Magnetron sputtering cathodes in Rectangular or cylindrical	√
* Arc deposition unit	×
Notice: This is a kind of custom made machine, the three above unit can be united in the same machine for multi-functional applications.
* Power support	Magnetron sputtering source
* Gas feeding system	√
* Cool water	For pumps and cathodes
* Compressed air needed	√

Machine Structure:
Company profile:
Xiangtan Hondson Coating Technology Co., Ltd., which is in the field of metal coatings, specializes in PVD (Physical Vapor Deposition) area. We produce vacuum aluminum evaporation machine, magnetron sputtering machine and arc deposition machine.
Xiangtan Hondson Coating Technology Co., Ltd. has enjoyed conspicuous success in the design, manufacture of PVD Vacuum Coating Machines. We are specialized in innovative PVD technology, as well as equipment for various applications, including electronics, thin film deposition, vacuum coated glass, automotive, plastic decorations, harden protective coatings on tools, molds, drills, knives, etc.
Our high quality Vacuum Coaters are sold to foreign and domestic markets and win their praise and good graces. We are happy to establish business relationship with customers all over the world. If you are interested in our products, or you are looking for cooperation partners in China for Vacuum Coating Equipment, welcome to contact us for further information.
Every machine is designed according to customer's real requests.
For more details, please contact us.
